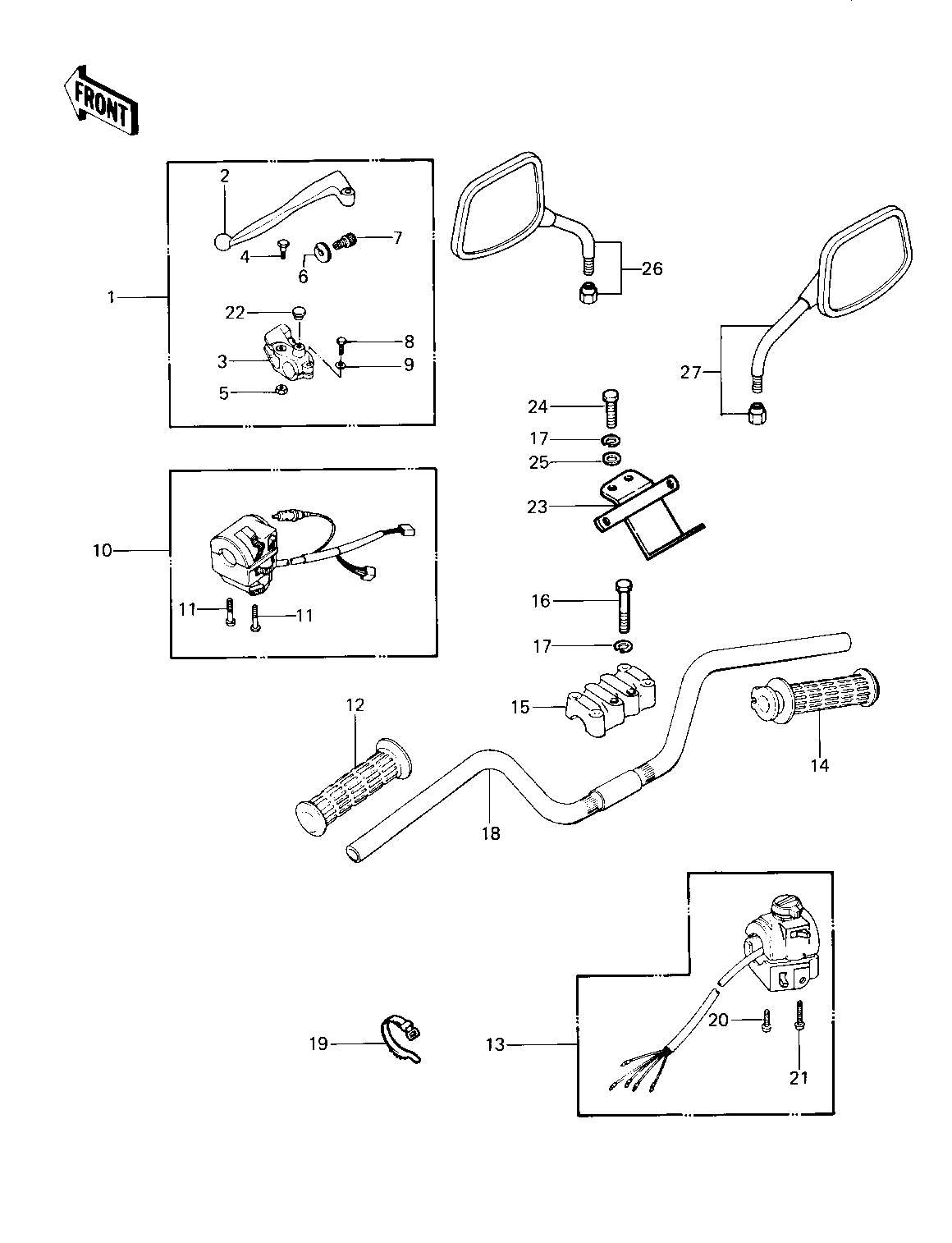

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-ASSY-GRIP,CLTCH | 1 | 46076-1019 | 1 | ||
| LEVER,CLUTCH | 2 | 46092-1005 | 1 | ||
| HOLDER,CLUTCH LEVER | 3 | 13091-1046 | 1 | ||
| BOLT,CLUTCH LEVER FIT | 4 | 92001-1075 | 1 | ||
| NUT | 5 | 92019-008 | 1 | ||
| NUT-LOCK | 6 | 46056-005 | 1 | ||
| SCREW,CABLE ADJUSTER | 7 | 92009-1022 | 1 | KZ1000-P1/P2 | |
| SCREW CABLE ADJUST | 7 | 46055-003 | 1 | KZ1000-P3/P4/P5 | |
| BOLT, HEX HEAD 6X22 | 8 | 110N0622 | 1 | ||
| WASHER PLAIN 6MM | 9 | 410B0600 | 1 | ||
| HOUSING-ASSY-CONTROL, | 10 | 46091-1455 | 1 | ||
| SCREW-PAN-CROS | 11 | 220B0535 | 2 | ||
| GRIP,LH | 12 | 46075-1020 | 1 | ||
| HOUSING-ASSY-CNTRL,RH | 13 | 46091-1212 | 1 | ||
| GRIP-ASSY | 14 | 46019-1022 | 1 | ||
| HOLDER-HANDLE | 15 | 46012-4001 | 1 | ||
| BOLT 8X38 | 16 | 92001-1405 | 4 | KZ1000-P1/P2/P3 | |
| BOLT,FLANGED,8X35 | 16 | 92001-1910 | 4 | KZ1000-P4/P5 | |
| WASHER SPRING 8MM | 17 | 461F0800 | 6 | KZ1000-P1/P2/P3 | |
| WASHER SPRING 8MM | 17 | 461F0800 | 2 | KZ1000-P4/P5 | |
| HANDLE | 18 | 46003-4008 | 1 | - F/NO. 501620 | |
| HANDLE | 18 | 46003-4008 | 1 | F/NO. 501621 - | |
| BAND,MIDDLE | 19 | 92072-031 | 4 | ||
| SCREW PAN HEAD 5X30 | 20 | 220B0530 | 1 | ||
| SCREW-PAN-CROS | 21 | 220B0540 | 1 | ||
| CAP-RR VIEW MIRROR | 22 | 92102-009 | 2 | ||
| BRACKET,SIREN (OPT) | 23 | 23062-4003 | 1 | ||
| BOLT HEAD LAMP MOUNT | 24 | 92007-003 | 2 | ||
| WASHER PLAIN 8MM | 25 | 410B0800 | 2 | ||
| MIRROR-ASSY,LH | 26 | 56001-4004 | 1 | F/NO._ | |
| MIRROR-ASSY,LH | 26 | 56001-4004 | 1 | F/NO._ |
