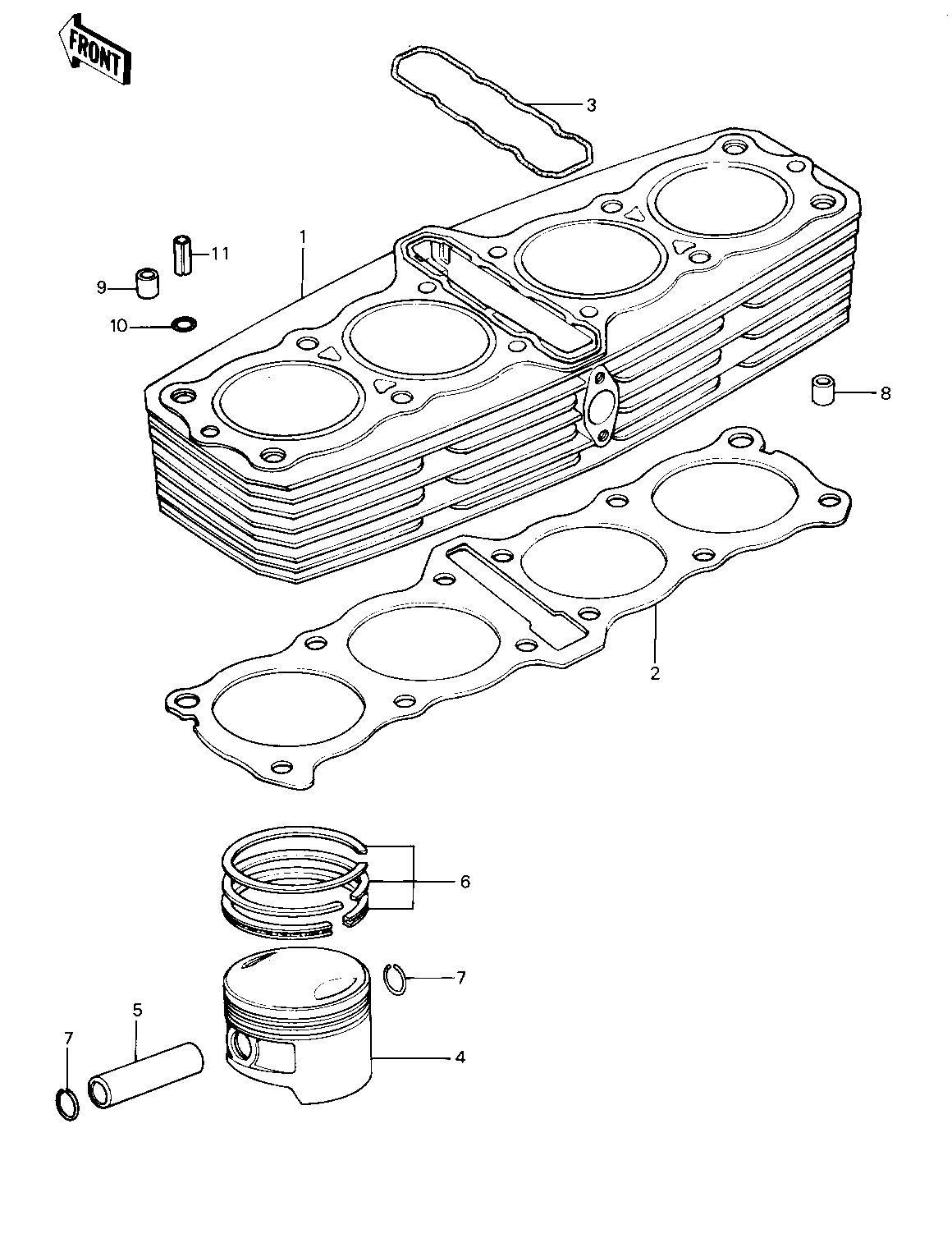

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| 11005-1327 (Canada) | 1 | 11005-1116 | 1 | -E/NO. 045346 | |
| CYLINDER-ENGINE,SILVE | 1 | 11005-1327 | 1 | E/NO. 045347- | |
| GASKET,CYLINDER BASE | 2 | 11060-1067 | 1 | ||
| GASKET,CYLINDER | 3 | 11009-1208 | 1 | ||
| PISTON-ENGINE,STD | 4 | 13001-1119 | 4 | KZ1000-P1 | |
| PISTON-ENGINE,STD | 4 | 13001-1119 | 4 | KZ1000-P2/P3/P4/P5 | |
| PISTON-ENGINE L,O/S | 4 | 13029-1058 | (4 | KZ1000-P1 | |
| PISTON-ENGINE L,O/S | 4 | 13029-1058 | (4 | KZ1000-P2/P3/P4/P5 | |
| PISTON-ENGINE LL,O/S | 4 | 13027-1056 | (4 | KZ1000-P1 | |
| PISTON-ENGINE LL,O/S | 4 | 13027-1056 | (4 | KZ1000-P2/P3/P4/P5 | |
| PIN-PISTON | 5 | 13002-1013 | 4 | ||
| RING-SET-PISTON | 6 | 13008-5035 | 4 | KZ1000-P1 | |
| RING-SET-PISTON,STD | 6 | 13008-5056 | 4 | KZ1000-P2/P3/P4/P5 | |
| RING SET,050 0/S | 6 | 13025-5018 | (4 | KZ1000-P1 | |
| RING-SET PISTON L,O/S | 6 | 13025-5024 | (4 | KZ1000-P2/P3/P4/P5 | |
| RING SET,1.10 O/S | 6 | 13024-5018 | 4 | KZ1000-P1 | |
| RING-SET PISTON LL | 6 | 13024-5024 | (4 | KZ1000-P2/P3/P4/P5 | |
| RING-SNAP | 7 | 92033-1054 | 8 | ||
| PIN,11X14X12.3 | 8 | 92043-1266 | 2 | ||
| PIN,DOWEL,10X8.2X14 | 9 | 92043-1037 | 2 | ||
| RING-0,0D=18.5MM | 10 | 92055-1148 | 4 | KZ1000-P1 | |
| RING-0,0D=18.5MM | 10 | 92055-1148 | 4 | KZ1000-P2/P3/P4/P5 | |
| PIN-SPRING | 11 | 49035-1051 | 4 |
| 11005-1327 (Canada) | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | -E/NO. 045346 |
| CYLINDER-ENGINE,SILVE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO. 045347- |
| GASKET,CYLINDER BASE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE,STD | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KZ1000-P1 |
| PISTON-ENGINE,STD | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KZ1000-P2/P3/P4/P5 |
| PISTON-ENGINE L,O/S | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | KZ1000-P1 |
| PISTON-ENGINE L,O/S | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | KZ1000-P2/P3/P4/P5 |
| PISTON-ENGINE LL,O/S | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | KZ1000-P1 |
| PISTON-ENGINE LL,O/S | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | KZ1000-P2/P3/P4/P5 |
| PIN-PISTON | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KZ1000-P1 |
| RING-SET-PISTON,STD | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KZ1000-P2/P3/P4/P5 |
| RING SET,050 0/S | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | KZ1000-P1 |
| RING-SET PISTON L,O/S | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | KZ1000-P2/P3/P4/P5 |
| RING SET,1.10 O/S | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KZ1000-P1 |
| RING-SET PISTON LL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | KZ1000-P2/P3/P4/P5 |
| RING-SNAP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN,11X14X12.3 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-0,0D=18.5MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KZ1000-P1 |
| RING-0,0D=18.5MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KZ1000-P2/P3/P4/P5 |
| PIN-SPRING | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
