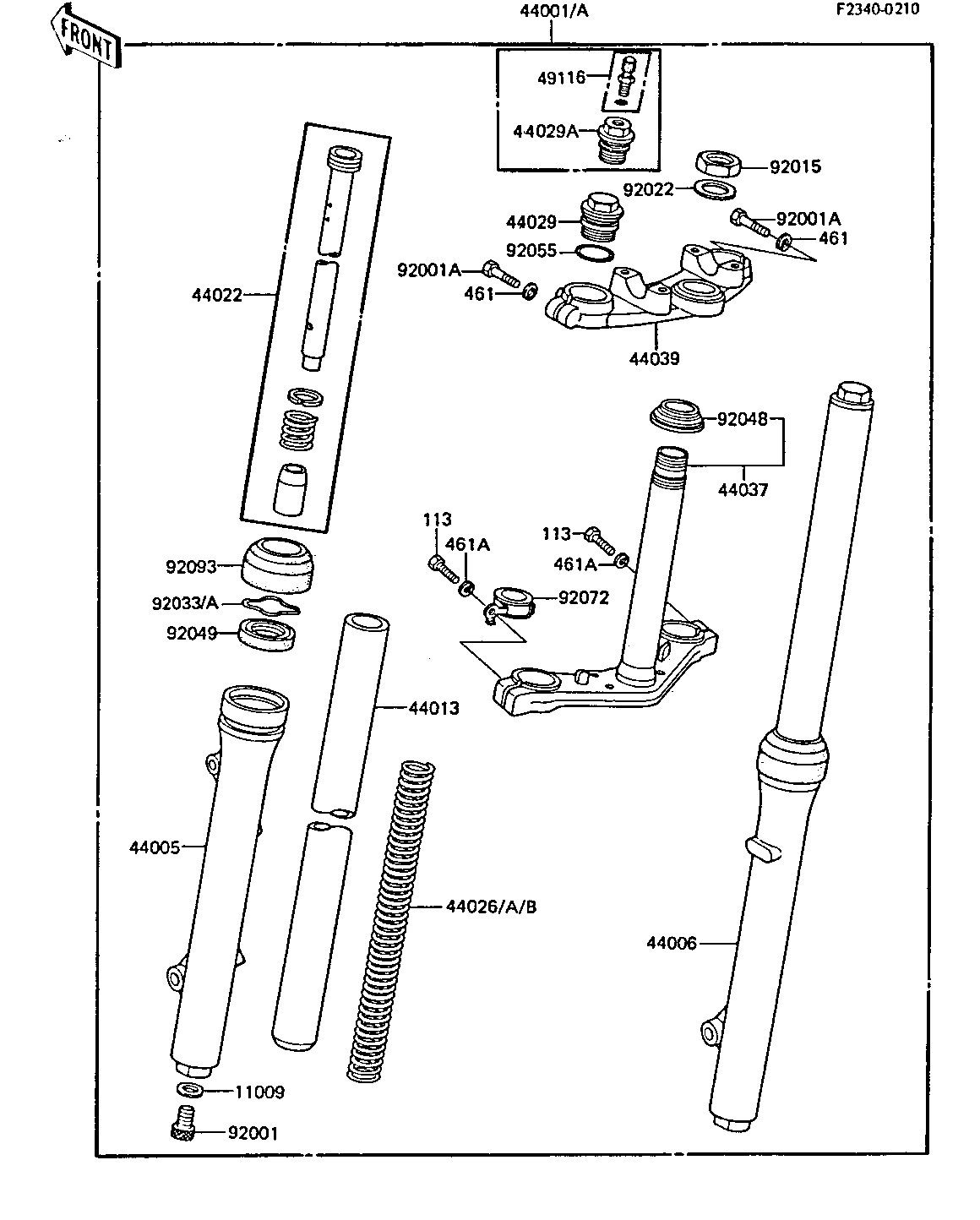

1984 KX60 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYL BOLT 11009 44045-051 2
FORK-FRONT 44001A 44001-1507 1
PIPE-LEFT FORK OUTER 44005 44005-1101 1
PIPE-RIGHT FORK OUTER 44006 44006-1101 1
PIPE-FORK INNER 44013 44013-1098 2
CYLINDER-FORK 44022 44022-1085 2
SPRING-FRONT FORK 44026 44026-1156 2
SPRING-FRONT FORK,LIG 44026A 44026-1174 2
SPRING-FRONT FORK,HEA 44026B 44026-1175 2
SEAT-FORK SPRING 44029A 44029-1101 2
HOLDER-FORK UNDER 44037 44037-1095 1
HOLDER-FORK UPPER 44039 44039-1065 1
VALVE-ASSY 49116 49116-1054 2
BOLT,FORK CYLINDER 92001 44041-078 2
BOLT,8X35 92001A 92001-1643 2
NUT,FORK TOP 92015 92015-1224 1
WASHER,FORK TOP 92022 92022-1385 1
CIRCLIP 92033A 92033-1062 2
RACE, STRG STEM BRG 92048 92047-013 1
OIL SEAL 92049 92049-1069 2
RING-0,FORK SPRING SE 92055 92055-1142 2
BAND,CABLE 92072 92072-1089 1
DUST SHIELD 92093 92093-1054 2
BOLT,HEX HEAD 10X35 113 92001-1252 2
WASHER SPRING 8MM 461 461F0800 2
WASHER SPRING 10MM 461A 461F1000 2
