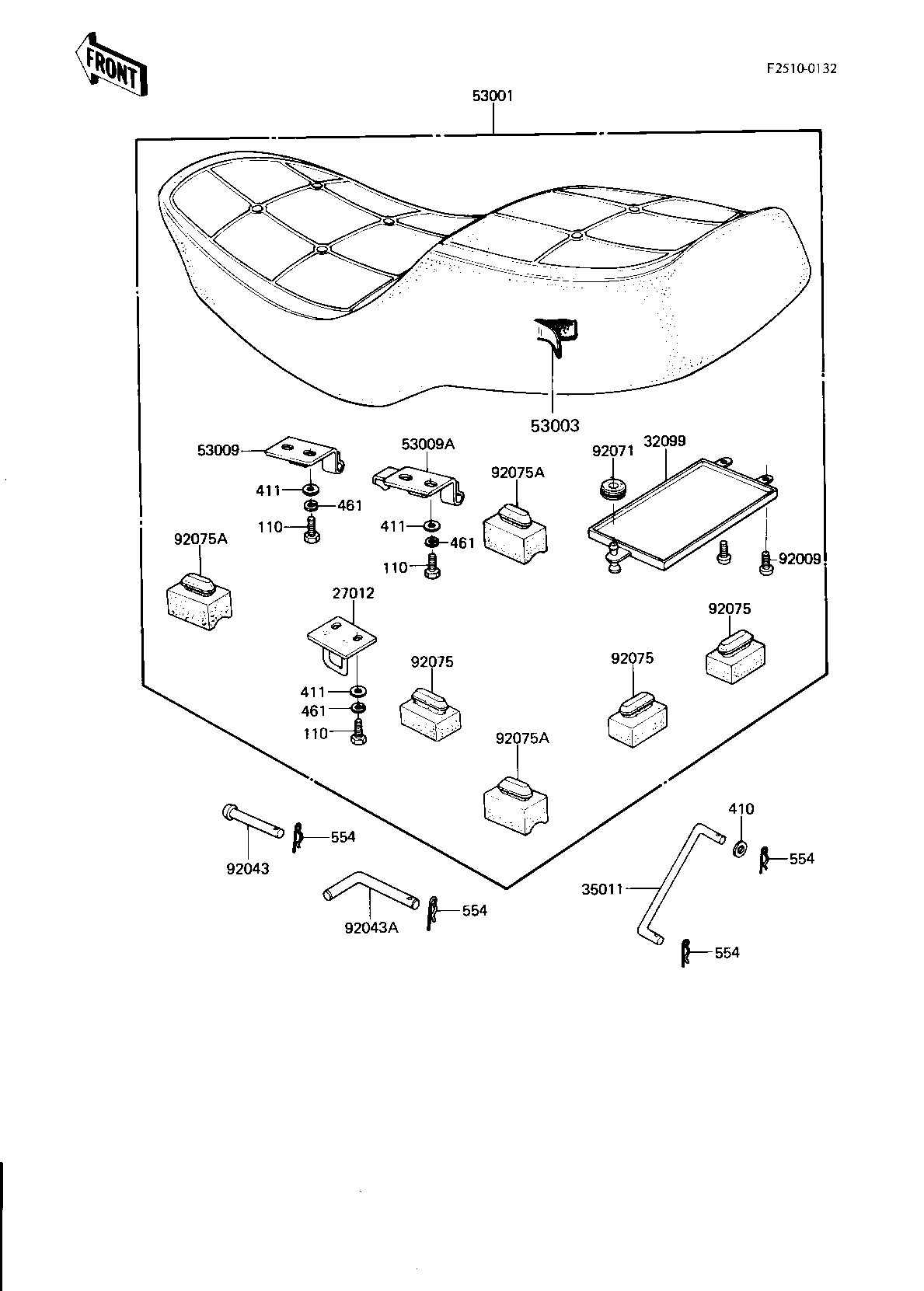

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOOK,SEAT | 27012 | 27012-1024 | 1 | ||
| CASE | 32099 | 32099-011 | 1 | ||
| STOPPER,SEAT | 35011 | 53054-006 | 1 | ||
| SEAT-ASSY,DUAL | 53001 | 53001-1217 | 1 | ||
| LEATHER,SEAT | 53003 | 53003-1047 | 1 | ||
| HINGE,BLACK | 53009 | 53009-017-10 | 1 | ||
| HINGE,SEAT,RR | 53009A | 53009-1032 | 1 | ||
| SCREW | 92009 | 92009-1043 | 2 | ||
| PIN | 92043 | 53011-002 | 1 | ||
| PIN,DUAL SEAT PIVOT | 92043A | 53011-008 | 1 | ||
| GROMMET | 92071 | 92071-056 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-099 | 3 | ||
| DAMPER RUBBER-SEAT | 92075A | 92075-156 | 3 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 6 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 6 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 6 | ||
| PIN-SNAP,5MM | 554 | 554A0500 | 4 |
| HOOK,SEAT | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,SEAT | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,DUAL | |
| REF # | 53001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEATHER,SEAT | |
| REF # | 53003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HINGE,BLACK | |
| REF # | 53009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HINGE,SEAT,RR | |
| REF # | 53009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DUAL SEAT PIVOT | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER-SEAT | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN-SNAP,5MM | |
| REF # | 554 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
