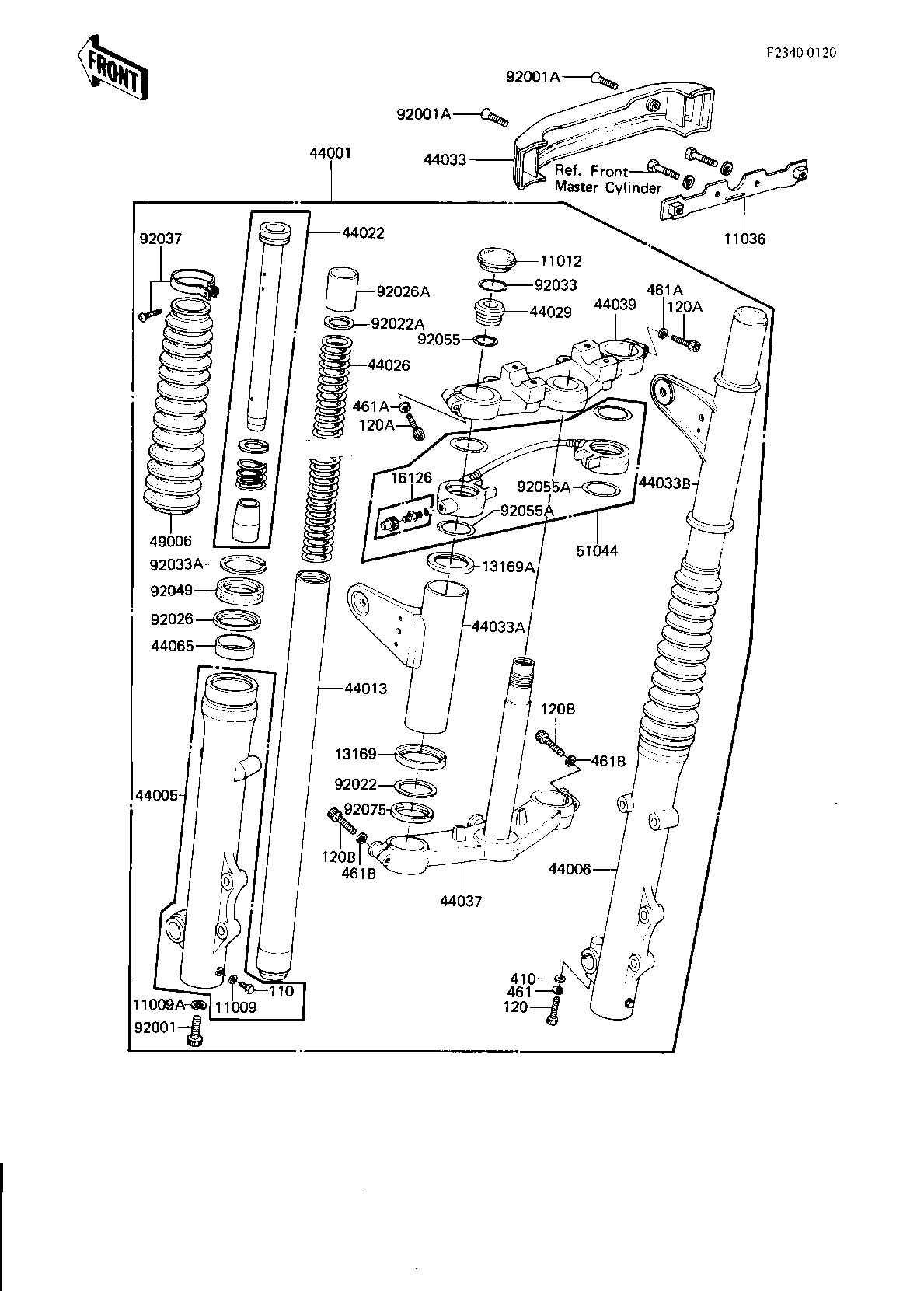

1983 Spectre - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRAIN PLUG 11009 44045-047 2
GASKET,FORK CYL BOLT 11009A 44045-051 2
CAP,RUBBER,FORK TOP 11012 11012-1061 2
BRACKET-A,FORK COVER 11036 11036-1320 1
GUIDE,FORK COVER,LOW 13169 13169-1134 2
GUIDE,FORK COVER,UPP 13169A 13169-1135 2
VALVE,AIR 16126 16126-1043 1
FORK-FRONT 44001 44001-1337 1
TUBE,LH,FORK OUTER 44005 44005-1090 1
TUBE,RH,FORK OUTER 44006 44006-1090 1
PIPE-FORK INNER 44013 44013-1088 2
CYLINDER-FORK 44022 44022-1078 2
SPRING-FRONT FORK 44026 44026-1139 2
GUIDE,SPRING 44029 44029-1006 2
COVER-FORK 44033 44033-1084 1
COVER-FORK,LH,F.BLAC 44033A 44033-1087 1
COVER-FORK,RH,F.BLAC 44033B 44033-1088 1
HOLDER-FORK UNDER 44037 44037-1082 1
HOLDER-FORK UPPER 44039 44039-1051 1
BUSHING, FORK 44065 44065-1011 2
BOOT,FRONT FORK 49006 49006-1070 2
TUBE-ASSY,FRONT FORK 51044 51044-1014 1
BOLT,FORK CYLINDER 92001 44041-078 2
SCREW-CSK-RD-CROS 92001A 222C0518 2
WASHER,FORK COVER 92022 92022-1111 2
WASHER,FORK SPRING 92022A 92022-1310 2
SPACER,FORK 92026 92026-1038 2
SPACER,FORK SPRING 92026A 92026-1112 2
CIRCLIP,FORK TOP 92033 92033-1023 2
RING,SNAP 92033A 92033-1055 2
CLAMP,FRONT FORK 92037 92037-1346 2
SEAL-OIL,FORK 92049 92049-1063 2
"0" RING 92055 92055-1034 2
RING,O,TUBE ASSY 92055A 92055-1131 4
DAMPER RUBBER,FORK 92075 92075-1137 2
BOLT HEX HEAD 6X8 110 110B0608 2
BOLT,SOCKET,8X30 120 120P0830 1
BOLT-SOCKET,8X40,BLA 120A 120S0840 2
BOLT-SOCKET,10X40,BL 120B 120S1040 2
WASHER PLAIN 8MM 140 410B0800 1
WASHER SPRING 8MM 461 461F0800 1
WASHER-SPRING,8MM,BL 461A 461K0800 2
WASHER-SPRING,10MM 461B 461K1000 2
