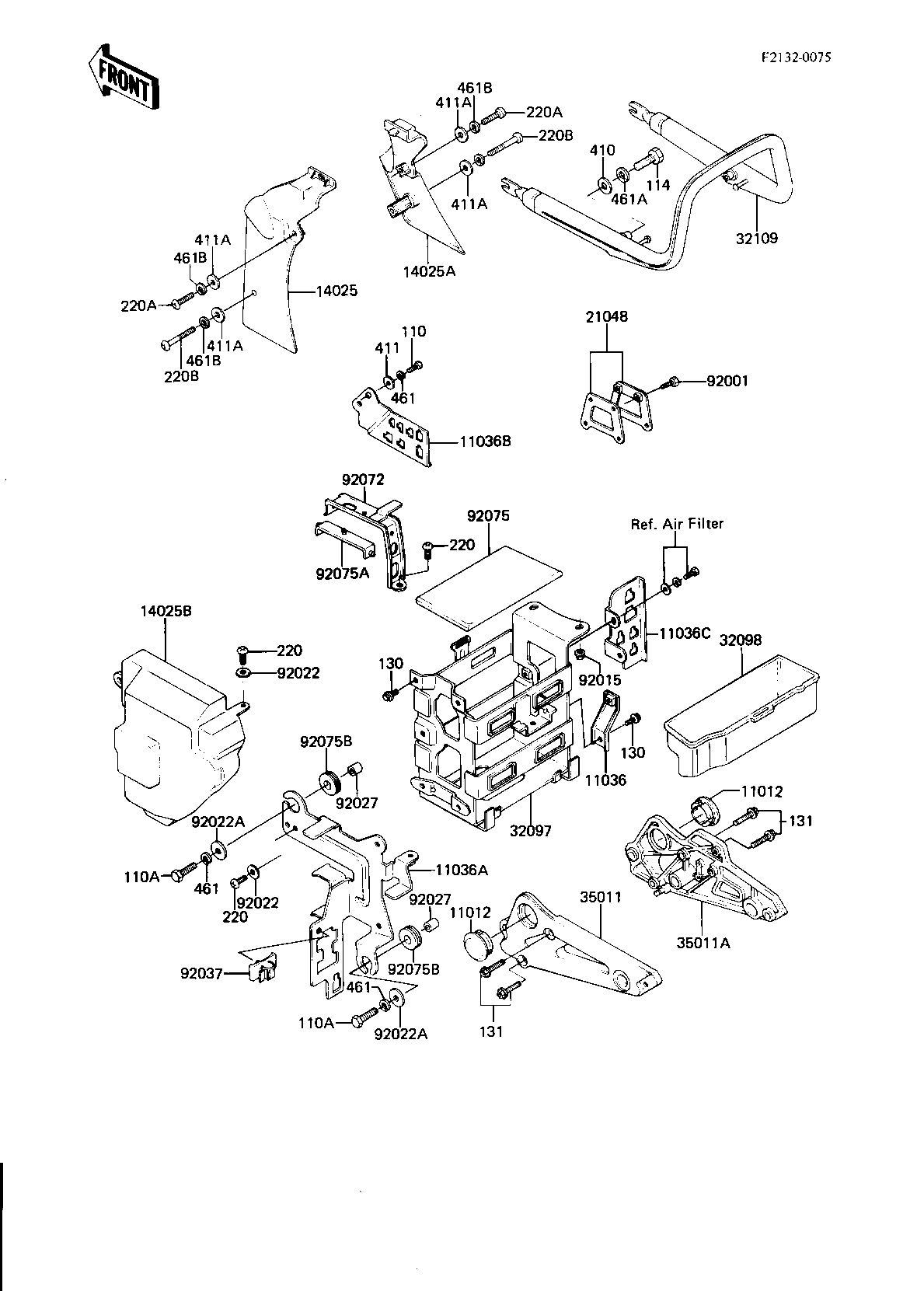

1983 Spectre - BATTERY CASE/TOOL CASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM SHAFT 11012 11012-1397 2
BRACKET-A,RESERVOIR 11036 11036-1345 1
BRACKET-A,ELECTRO BA 11036A 11036-1497 1
BRACKET-A,COUPLER 11036B 11036-1510 1
BRACKET-A,COUPLER 11036C 11036-1511 1
COVER,FUEL TANK,LH 14025 14025-1468 1
COVER,FUEL TANK,RH 14025A 14025-1469 1
COVER,ELECTRO BASE 14025B 14025-1511 1
PLATE,IGNITION COIL 21048 21048-1001 2
CASE-BATTERY 32097 32097-1050 1
CASE-TOOL 32098 32098-1021 1
GRIP-FRAME 32109 32109-1032 1
STAY,MUFFLER,LH 35011 35011-1130 1
STAY,MUFFLER,RH 35011A 35011-1131 1
BOLT,HEX HEAD,6MM 92001 92001-137 4
NUT-6MM 92015 92015-1078 2
WASHER PLAIN 92022 92022-024 2
WASHER,PLAIN,7MM 92022A 92022-228 2
COLLAR-CLAMP 92027 92027-291 2
CLAMP,LEAD WIRE 92037 92037-1340 1
BAND,BATTERY 92072 92072-1076 1
DAMPER,BATTERY BASE 92075 92075-1076 1
DAMPER,BATTERY BAND 92075A 92075-1371 1
DAMPER 92075B 92075-317 2
BOLT-UPSET,6X12 110 112G0612 1
BOLT-UPSET 110A 112G0625 2
BOLT-SMALL-UPSET,8X3 114 115G0830 2
BOLT,FLANGED,6X10 130 130B0610 3
BOLT-FLANGED,8X35,BL 131 131J0835 4
SCREW PAN HEAD 6X12 220 220B0612 3
SCREW-PAN-CROS,6X25, 220A 220C0625 2
SCREW-PAN-CROS,6X45, 220B 220C0645 2
WASHER PLAIN 8MM 410 410B0800 2
WASHER PLAIN 6MM 411 411B0600 1
WASHER PLAIN 411A 411F0600 4
WASHER SPRING 6MM 461 461F0600 3
WASHER SPRING 8MM 461A 461F0800 2
WASHER-SPRING,6MM,BL 461B 461K0600 4
