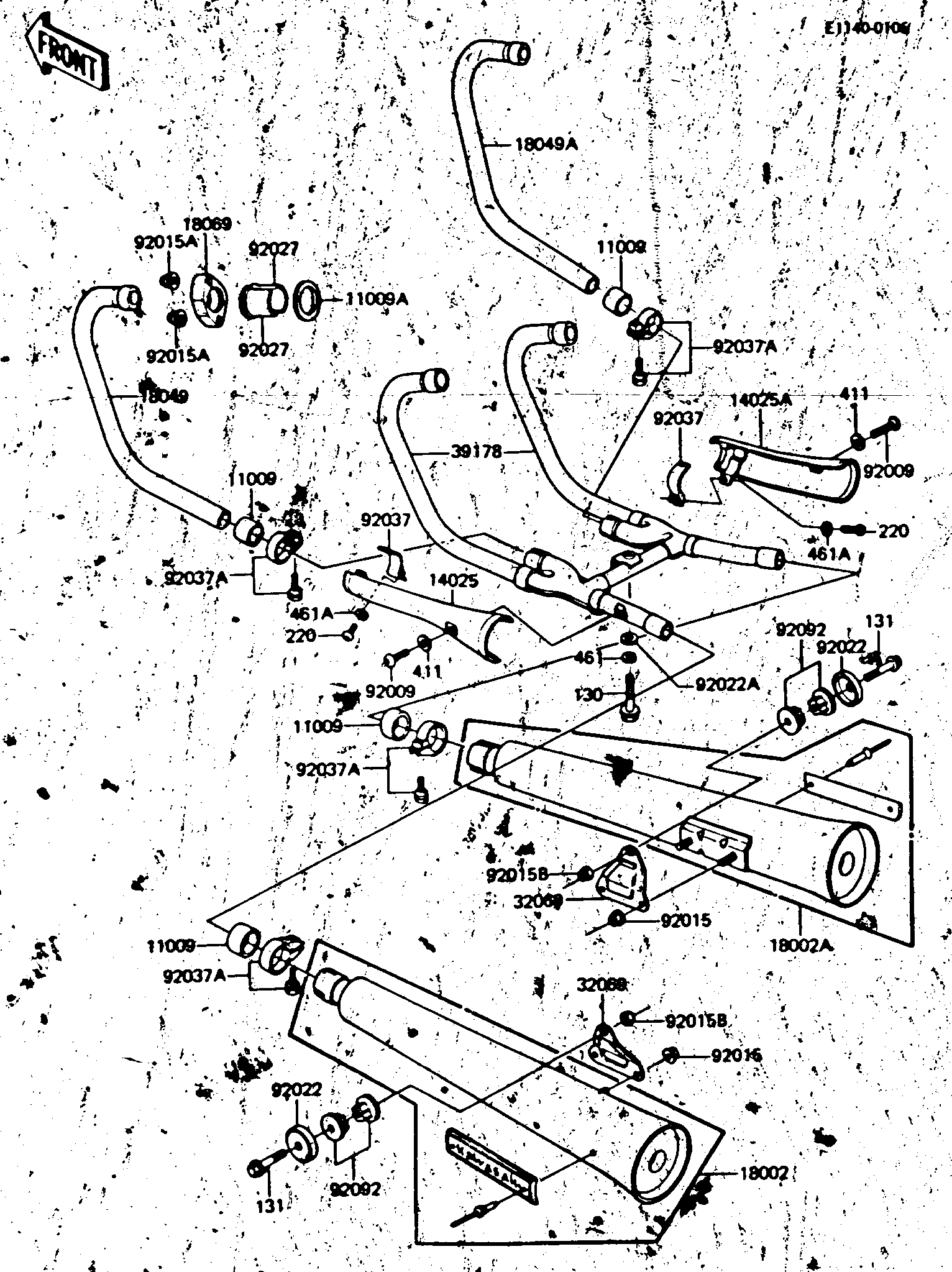

1983 Spectre - MUFFLERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11009 11009-1667 4
GASKET,EXHAUST PIPE 11009A 11009-1866 4
COVER,MUFFLER,LH 14025 14025-1435 1
COVER,MUFFLER,RH 14025A 14025-1436 1
BODY-COMP-MUFFLER,LH 18002 18002-5043 1
BODY-COMP-MUFFLER,RH 18002A 18002-5044 1
PIPE-EXHAUST,#2 18049 18049-1178 1
PIPE-EXHAUST,#3 18049A 18049-1179 1
HOLDER-EXHAUST PIPE, 18069 18069-1021 4
BRACKET-MUFFLER 32069 32069-1099 2
MANIFOLD-COMP-EXHAUS 39178 39178-1012 1
SCREW-PAN-CROS,6X8 92009 220C0608 2
NUT,8M/M 92015 92015-1014 4
NUT,CAP 6MM,BLACK 92015A 92015-1170 8
NUT,LOCK,10MM 92015B 92019-021 2
WASHER,CUP TYPE,BLAC 92022 92022-1313 2
WASHER-PLN,10X22X3.2 92022A 92022-176 1
COLLAR,L=14.5,BLACK 92027 92027-1456 8
CLAMP,MUFFLER COVER, 92037 92037-1339 2
CLAMP,42MM,BLACK 92037A 92037-1350 4
BUSHING-RUBBER 92092 92092-1013 4
BOLT,FLANGED,8X50 130 130G0850 1
BOLT-FLANGED,10X55 131 131J1055 2
SCREW-PAN-CROS,6X12, 220 220C0616 2
WASHER PLAIN 411 411F0600 2
WASHER SPRING 8MM 461 461F0800 1
WASHER-SPRING,6MM,BL 461A 461K0600 2
