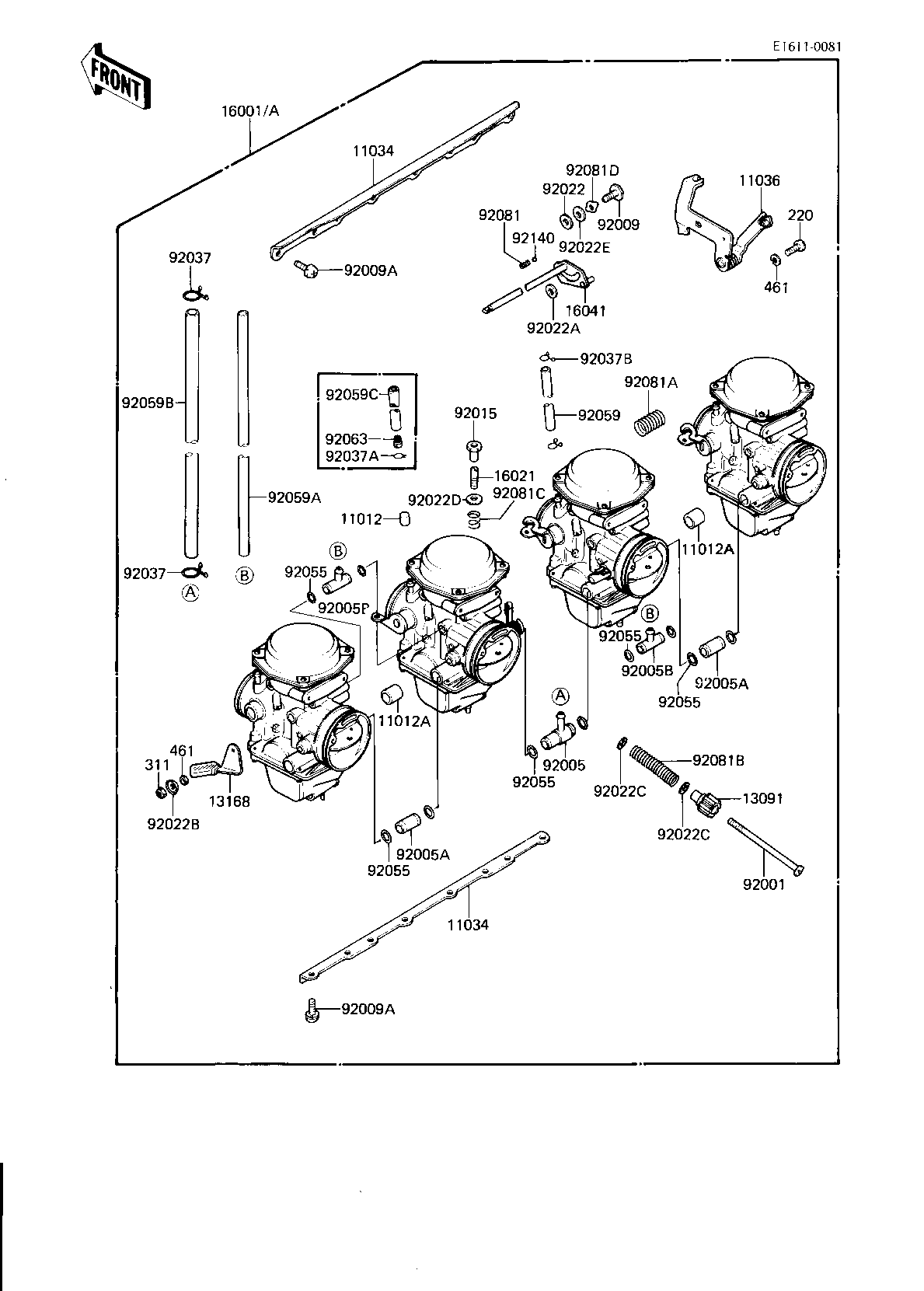

1983 Spectre - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,RUBBER 11012 11012-1129 1 US
TUBE,DUST SEAL 11012A 11012-1130 2
PLATE,CARBURETOR STA 11034 11034-1800 2
BRACKET-A,THROTTLE C 11036 11036-1254 1
HOLDER,ADJUST 13091 13091-1078 1
LEVER,CHOKE 13168 13168-1123 1
CARBURETOR 16001 16001-1526 1 US
CARBURETOR (Canada) 16001A 16001-1531 1 CN
SCREW,SLOTTED 16021 16021-1027 3
SHAFT,CHOKE LINK 16041 16041-1028 1
BOLT,HEX HEAD,5X70 92001 92001-1328 1
FITTING,FUEL TUBE 92005 92005-1026 1
NIPPLE,FUEL 92005A 92005-1027 2
FITTING,AIR VENT 92005B 92005-1054 2
SCREW,LINK SHAFT 92009 92009-1096 1
SCREW,6X16 92009A 92009-1129 16
NUT,5M/M 92015 92015-1118 3
WASHER,6.1X11X0.8,PO 92022 92022-1199 1
WASHER,6.4X9.4X0.8,P 92022A 92022-1200 1
WASHER,LOCK,5M/M 92022B 92022-1201 1
WASHER 92022C 92022-1203 2
WASHER,6.5X11X1.2,ST 92022E 92022-1207 3
CLAMP,FUEL INLET TUB 92037 92037-1075 2
CLAMP 92037A 92037-1201 1 CN
CLAMP,TUBE 92037B 92037-1241 2
CLAMP,TUBE 92037B 92037-1241 2
"O" RING 92055 92055-1004 10
TUBE,5X9X200 92059 92059-1173 1
TUBE,6.5X9.5X300 92059A 92059-1203 1
TUBE,FUEL 92059B 92059-1236 1
TUBE, 4.5X8X210 (Canada) 92059C 92059-1242 1 CN
MAIN JET,2ND,#75 92063 92063-1086 1 CN
SPRING 92081 92081-1249 1
SPRING 92081A 92081-1250 2
SPRING 92081B 92081-1251 1
SPRING 92081C 92081-1252 3
SPRING,WAVED WASHER 92081D 92081-1262 1
BALL,STEEL,3/16" 92140 92140-1004 1
SCREW PAN HEAD 5X20 220 220B0520 1
NUT,5MM 311 311B0500 1
WASHER SPRING 5MM 461 461F0500 2
