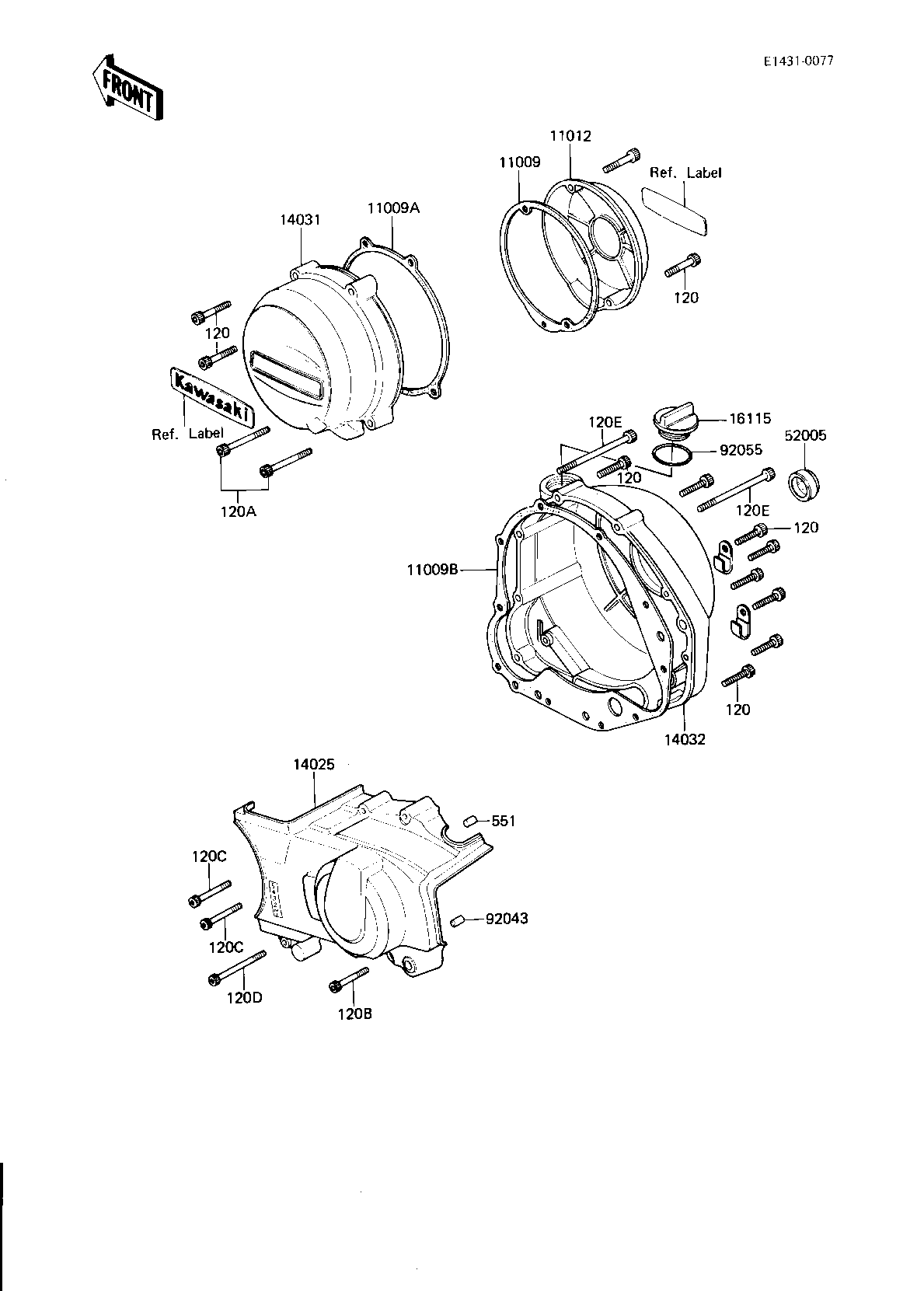

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,PULSING COIL | 11009 | 11060-1053 | 1 | ||
| GASKET,GENERATOR COV | 11009A | 11009-1987 | 1 | ||
| GASKET,R.H.ENG COVER | 11009B | 14046-035 | 1 | ||
| CAP,PULSING COIL GOL | 11012 | 11012-1225 | 1 | ||
| COVER,GEAR CASE,GOLD | 14025 | 14025-1434 | 1 | ||
| COVER-GENERATOR,GOLD | 14031 | 14031-1084 | 1 | ||
| COVER-CLUTCH,GOLD | 14032 | 14032-1077 | 1 | ||
| CAP-OIL FILLER,GOLD | 16115 | 16115-1010 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| PIN-DOWEL | 92043 | 92042-007 | 1 | ||
| "0" RING,31MM | 92055 | 92055-049 | 1 | ||
| BOLT,SOCKET,6X30 | 120 | 120P0630 | 12 | ||
| BOLT,SOCKET,6X40 | 120A | 120P0640 | 2 | ||
| BOLT,SOCKET,6X45 | 120B | 120P0645 | 1 | ||
| BOLT,SOCKET,6X50 | 120C | 120P0650 | 2 | ||
| BOLT-SOCKET,6X75 | 120D | 120P0675 | 1 | ||
| BOLT-SOCKET,6X80 | 120E | 120P0680 | 2 | ||
| PIN DOWEL 8X14 | 551 | 551A0814 | 1 |
| GASKET,PULSING COIL | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GENERATOR COV | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,R.H.ENG COVER | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,PULSING COIL GOL | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,GEAR CASE,GOLD | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-GENERATOR,GOLD | |
| REF # | 14031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-CLUTCH,GOLD | |
| REF # | 14032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-OIL FILLER,GOLD | |
| REF # | 16115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,OIL LEVEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,31MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X30 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X40 | |
| REF # | 120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X45 | |
| REF # | 120B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X50 | |
| REF # | 120C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X75 | |
| REF # | 120D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X80 | |
| REF # | 120E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 8X14 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
