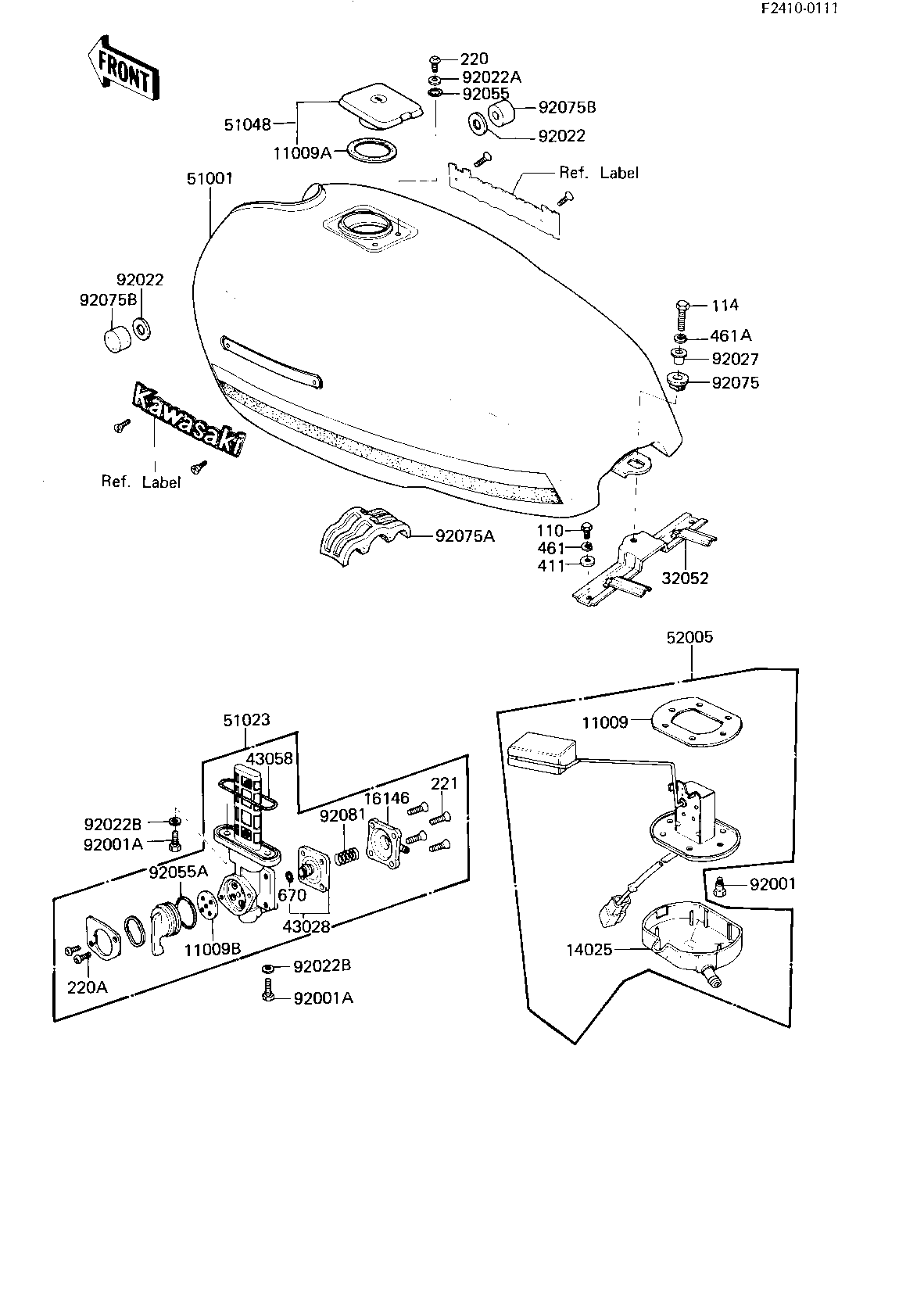

1982 GPz - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1037 1
GASKET,FUEL TANK CAP 11009A 11009-1051 1
GASKET,TAP VALVE 11009B 11009-1194 1
COVER,FUEL GAUGE 14025 14024-1434 1
COVER ASSY,TAP 16146 16146-1005 1
BRACKET-TANK,RR 32052 32052-1078 1
DIAPHRAGM ASSY,TAP 43028 43028-1015 1
"0" RING 43058 51039-010 1
TANK-FUEL,F.RED 51001 51001-1099-B1 1
TAP ASSY,FUEL 51023 51023-1031 1
CAP-ASSY-TANK,FUEL 51048 51048-1015 1
GAUGE,FUEL 52005 52005-1028 1
BOLT,FUEL GAUGE FIT 92001 92001-1069 6
BOLT,6X20,FUEL TAP 92001A 92001-1091 2
WASHER-PL-10.5X26X2.3 92022 92022-044 2
WASHER,PLAIN 92022A 92022-1038 2
WASHER-PLAIN 92022B 92022-183 2
COLLAR,FUEL TANK FITT 92027 92027-1134 1
"0" RING 92055 92055-1023 2
"0" RING,TAP LEVER 92055A 92055-1027 1
DAMPER,FUEL TANK,FITT 92075 92075-1116 1
DAMPER,FUEL TANK 92075A 92075-1245 1
DAMPER RUBBER,FL TANK 92075B 92075-125 2
SPRING,TAP 92081 92081-1171 1
BOLT-UPSET,6X12 110 112G0612 2
BOLT-SMALL-UPSET,8X30 114 115G0830 2
SCREW PAN HEAD 5X10 220 220B0510 2
SCREW-PAN-CROS 220A 220C0308 2
SCREW-CSK-CROS,4X14 221 221B0414 4
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 8MM 461A 461F0800 1
"O" RING,4MM 670 670B1504 1
