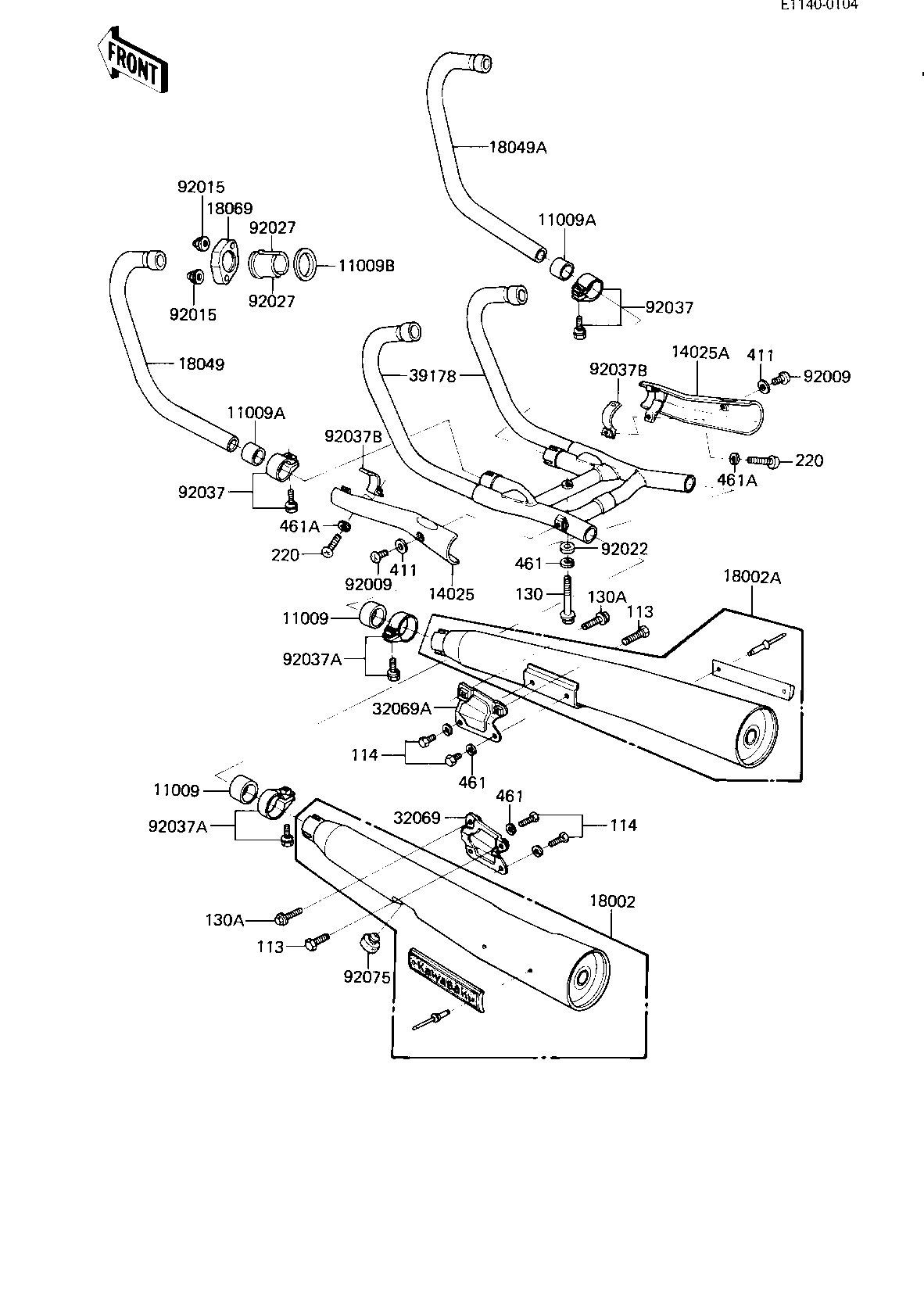

1982 GPz - MUFFLERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD EXHAU 11009 11060-1068 2
GASKET,EXHAUST PIPE C 11009A 11009-1667 2
GASKET,EXHAUST PIPE H 11009B 11009-1866 4
COVER,MUFFLER,LH 14025 14025-1430 1
COVER,MUFFLER,RH 14025A 14025-1431 1
BODY-COMP-MUFFLER,LH 18002 18002-5041 1
BODY-COMP-MUFFLER,RH 18002A 18002-5042 1
PIPE-EXHAUST,#2 18049 18049-1178 1
PIPE-EXHAUST,#3 18049A 18049-1179 1
HOLDER-EXHAUST PIPE,F 18069 18069-1021 4
BRACKET-MUFFLER,LH 32069 32069-1106 1
BRACKET-MUFFLER,RH 32069A 32069-1107 1
MANIFOLD-COMP-EXHAUST 39178 39178-1011 1
SCREW-PAN-CROS,6X8 92009 220C0608 2
NUT,CAP 6MM,BLACK 92015 92015-1170 8
WASHER-PLN,10X22X3.2 92022 92022-176 1
COLLAR,L=14.5,BLACK 92027 92027-1456 8
CLAMP,42MM,BLACK 92037 92037-1350 2
CLAMP,MUFFLER,BLACK 92037A 92037-1306 2
CLAMP,MUFFLER COVER 92037B 92037-1319 2
DAMPER RUBB MAIN STAD 92075 92075-015 1
BOLT-SMALL-FINE,10X35 113 113J1035 2
BOLT-SMALL-UPSET,8X16 114 115G0816 4
BOLT-FLANGED,8X65 130 130G0865 1
BOLT-FLANGED,8X35,BLA 130A 130J0835 2
SCREW-PAN-CROS, 6X20 220 220C0620 2
WASHER PLAIN 411 411F0600 2
WASHER SPRING 8MM 461 461F0800 5
WASHER-SPRING,6MM,BLA 461A 461K0600 2
