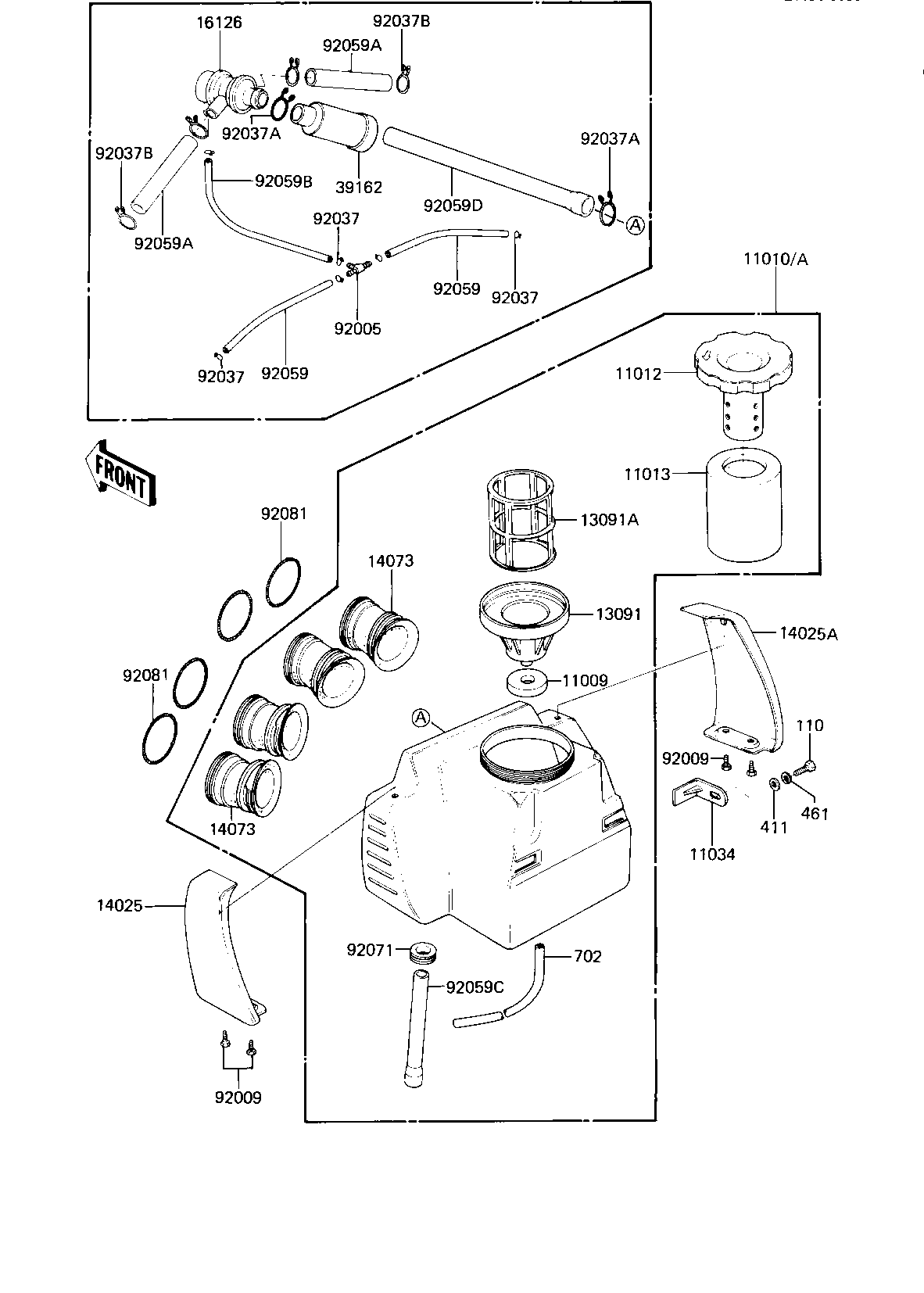

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HOLDER | 11009 | 11039-003 | 1 | ||
| FILTER-ASSY-AIR | 11010 | 11010-1128 | 1 | US | |
| FILTER-ASSY-AIR (Canada) | 11010A | 11010-1129 | 1 | CN | |
| CAP,AIR CLEANER | 11012 | 11012-069 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-1060 | 1 | ||
| BRACKET,AIR CLEANER | 11034 | 32070-038 | 2 | ||
| HOLDER,INLET PIPE | 13091 | 11033-006 | 1 | ||
| HOLDER,ELEMENT | 13091A | 13091-1147 | 1 | ||
| COVER,AIR FILTER,LH | 14025 | 14025-1437 | 1 | ||
| COVER,AIR FILTER,RH | 14025A | 14025-1438 | 1 | ||
| INLET DUCT | 14073 | 14073-1032 | 4 | ||
| VALVE ASSY,AIR SWITCH | 16126 | 16126-1005 | 1 | US | |
| SILENCER | 39162 | 39162-1003 | 1 | US | |
| FITTING,TUBE | 92005 | 92005-1017 | 1 | US | |
| SCREW,TAPPING,5X12 | 92009 | 92009-1144 | 4 | ||
| CLAMP-PIPE | 92037 | 92037-072 | 6 | US | |
| CLAMP | 92037A | 92037-1076 | 2 | US | |
| CLAMP,BREATHER TUBE | 92037B | 92037-213 | 4 | US | |
| TUBE,VACUUM,LONG | 92059 | 92059-1162 | 2 | US | |
| TUBE,14X20X100 | 92059A | 92059-1042 | 2 | US | |
| TUBE,4X9X290 | 92059B | 92059-1043 | 1 | US | |
| TUBE,11X26X135 | 92059C | 92059-1137 | 1 | ||
| TUBE,14X20X290 | 92059D | 92059-1138 | 1 | US | |
| GROMMET | 92071 | 92071-1027 | 1 | ||
| SPRING,COIL,BLACK | 92081 | 92081-1457 | 4 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 | ||
| TUBE-RUBBER,6X200 | 702 | 702A06200 | 1 |
| GASKET,HOLDER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-ASSY-AIR | |
| REF # | 11010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| FILTER-ASSY-AIR (Canada) | |
| REF # | 11010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| CAP,AIR CLEANER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR CLEANER | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER,INLET PIPE | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,ELEMENT | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AIR FILTER,LH | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AIR FILTER,RH | |
| REF # | 14025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INLET DUCT | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| VALVE ASSY,AIR SWITCH | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SILENCER | |
| REF # | 39162 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| FITTING,TUBE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SCREW,TAPPING,5X12 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP-PIPE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | US |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| CLAMP,BREATHER TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| TUBE,VACUUM,LONG | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| TUBE,14X20X100 | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| TUBE,4X9X290 | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| TUBE,11X26X135 | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,14X20X290 | |
| REF # | 92059D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL,BLACK | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,6X200 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
