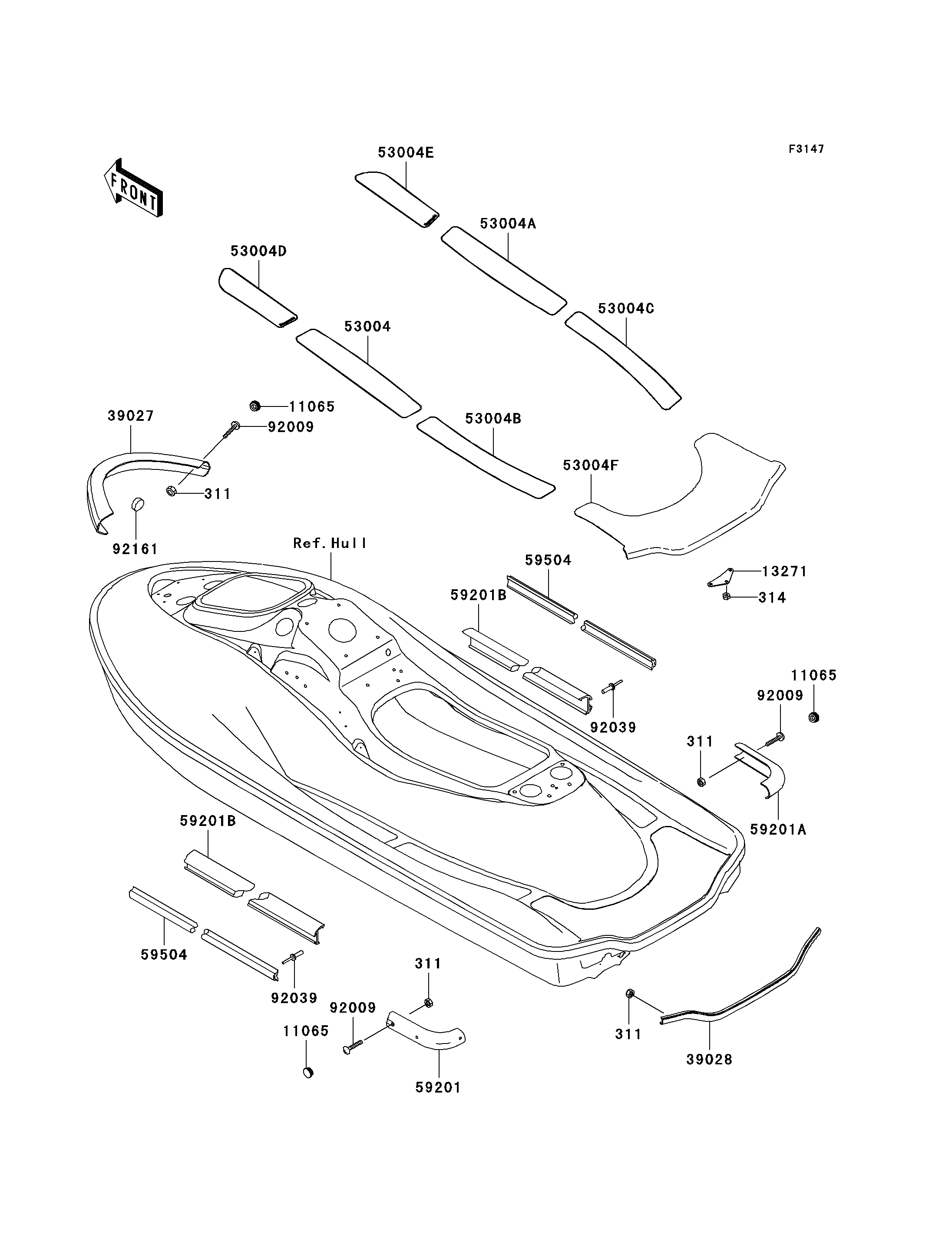

2001 Ultra 130 - Pads(JH1100-B1/B2)

DOWNLOAD PDF
SELECT A NEW PART
311
311
311
311
314
11065
11065
11065
13271
39027
39028
53004
53004A
53004B
53004C
53004D
53004E
53004F
59201
59201A
59201B
59201B
59504
59504
92009
92009
92009
92039
92039
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,5MM 311 311R0500 16
NUT-HEX-FINE,10MM 314 314R1000 3
CAP,F.BLACK 11065 11065-3707-6Z 10
PLATE 13271 13271-3759 1
BUMPER-FRONT,F.BLACK 39027 39027-3743-6Z 1
BUMPER-REAR,F.BLACK 39028 39028-3743-6Z 1
MAT,FR,LH,F.BLACK 53004 53004-3793-6Z 1
MAT,FR,RH,F.BLACK 53004A 53004-3794-6Z 1
MAT,RR,LH,F.BLACK 53004B 53004-3795-6Z 1
MAT,RR,RH,F.BLACK 53004C 53004-3796-6Z 1
MAT,LH,F.BLACK 53004D 53004-3798-6Z 1
MAT,RH,F.BLACK 53004E 53004-3799-6Z 1
MAT,RR,F.BLACK 53004F 53004-3820-6Z 1
BUMPER,CORNER,LH,F.BLACK 59201 59201-3780-6Z 1
BUMPER,CORNER,RH,F.BLACK 59201A 59201-3781-6Z 1
BUMPER,SIDE,F.BLACK 59201B 59201-3786-6Z 2
INSERT-BOAT FENDER,F.BLACK 59504 59504-3728-6Z 2
SCREW,5X30 92009 92009-3834 10
RIVET 92039 92039-3771 24
DAMPER 92161 92161-3713 1
