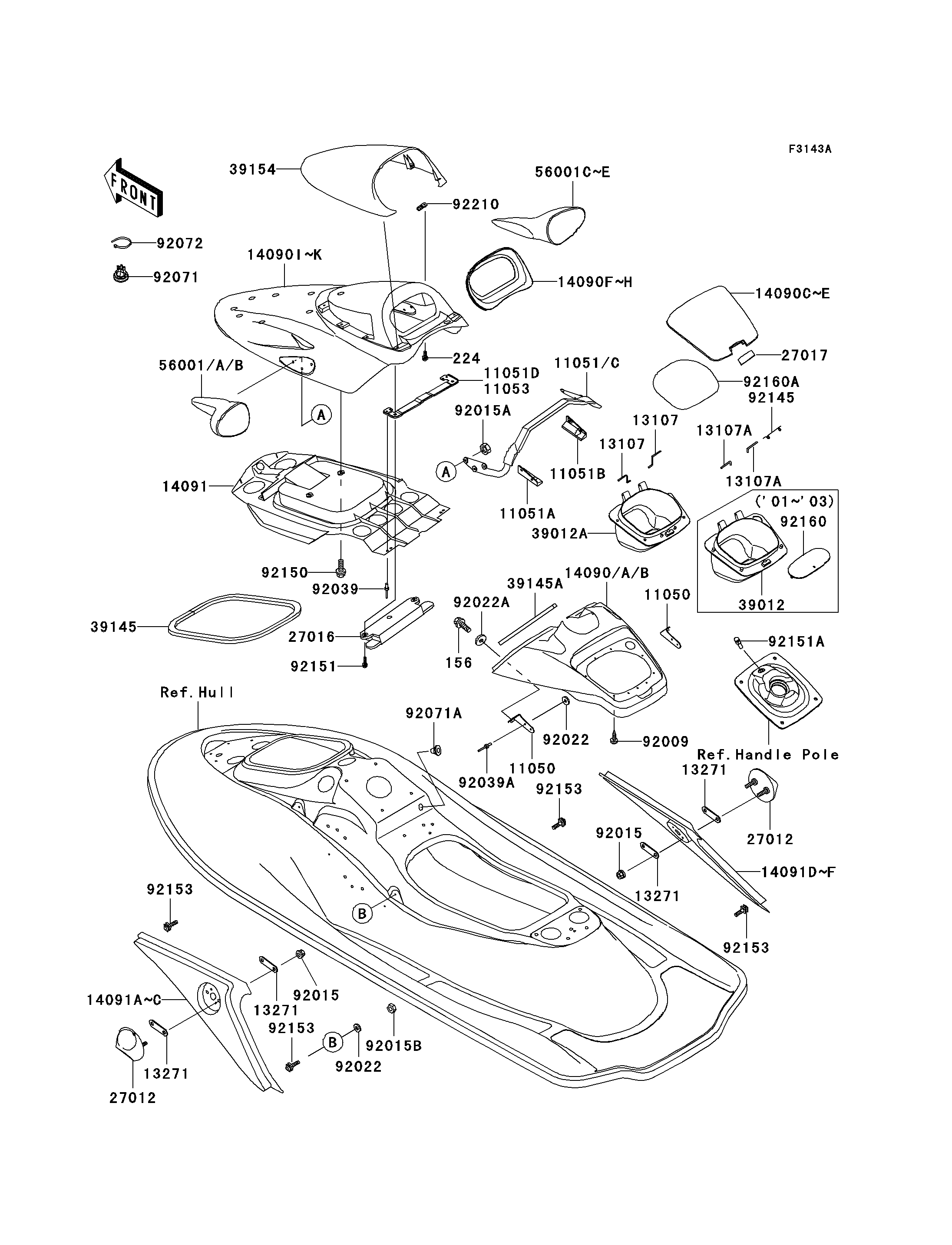

2003 Ultra 130 - Hull Covers

DOWNLOAD PDF
SELECT A NEW PART
11050
11050
11050
11050
11051
11051
11051A
11051A
11051B
11051B
11053
11053
13107
13107
13107
13107
13107A
13107A
13107A
13107A
13271
13271
13271
13271
13271
13271
13271
13271
14090B
14090B
14090E
14090E
14090H
14090H
14090K
14090K
14091
14091
14091C
14091C
14091F
14091F
27012
27012
27012
27012
27016
27016
27017
27017
39012
39012
39145
39145
39145A
39145A
39154
39154
56001B
56001B
156
156
224
224
56001E
56001E
92009
92009
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92022
92022
92022
92022
92022A
92022A
92039
92039
92039A
92039A
92071
92071
92071A
92071A
92072
92072
92145
92145
92150
92150
92151
92151
92151A
92151A
92153
92153
92153
92153
92153
92153
92153
92153
92160
92160
92160A
92160A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11050 11050-3746 2
BRACKET 11051 11051-3707 1
BRACKET,LH 11051A 11051-3745 1
BRACKET,RH 11051B 11051-3746 1
BRACKET 11053 11053-3714 1
SHAFT 13107 13107-3761 2
SHAFT 13107A 13107-3769 2
PLATE 13271 13271-3724 4
COVER,HANDLE,C.GOLD 14090B 14090-3809-368 1
COVER,CENTER STORAGE,C.GOLD 14090E 14090-3812-368 1
COVER,METER,C.GOLD 14090H 14090-3820-368 1
COVER,HATCH,C.GOLD 14090K 14090-3823-368 1
COVER,DUCT 14091 14091-3730 1
COVER,SIDE,LH,C.GOLD 14091C 14091-3731-368 1
COVER,SIDE,RH,C.GOLD 14091F 14091-3732-368 1
HOOK,F.BLACK 27012 27012-3834-6Z 2
LOCK-ASSY,LID 27016 27016-3753 1
LOCK,CENTER STORAGE,F.BLACK 27017 27017-3720-6Z 1
CASE-STORAGE 39012 39012-3728 1
TRIM-SEAL 39145 39145-3756 1
TRIM-SEAL,L=340 39145A 39145-3764 2
WINDSHIELD 39154 39154-3707 1
MIRROR-ASSY,LH,C.GOLD 56001B 56001-3713-217 1
BOLT-WP,6X18 156 156R0618 2
SCREW-PAN-WP-CROS,5X14 224 224R0514 8
MIRROR-ASSY,RH,C.GOLD 56001E 56001-3714-217 1
SCREW,TAPPING,5X20 92009 92009-3716 8
NUT,FLANGED,8MM 92015 92015-3709 4
NUT,LOCK,6MM 92015A 92015-3766 6
NUT,LOCK,5MM 92015B 92015-3798 4
WASHER,5X16X1.5 92022 92022-3041 8
WASHER,6.5X20X1.5 92022A 92022-3710 2
RIVET 92039 92039-3747 4
RIVET 92039A 92039-3775 4
GROMMET 92071 92071-3819 1
GROMMET 92071A 92071-3826 1
BAND,L=292.1 92072 92072-3509 1
SPRING 92145 92145-3711 1
BOLT,6X18 92150 92150-3729 4
BOLT,6X22 92151 92151-3769 2
BOLT 92151A 92151-3776 1
BOLT,5MM 92153 92153-3703 4
DAMPER 92160 92160-3926 1
DAMPER 92160A 92160-3933 1
NUT 92210 92210-3750 8
