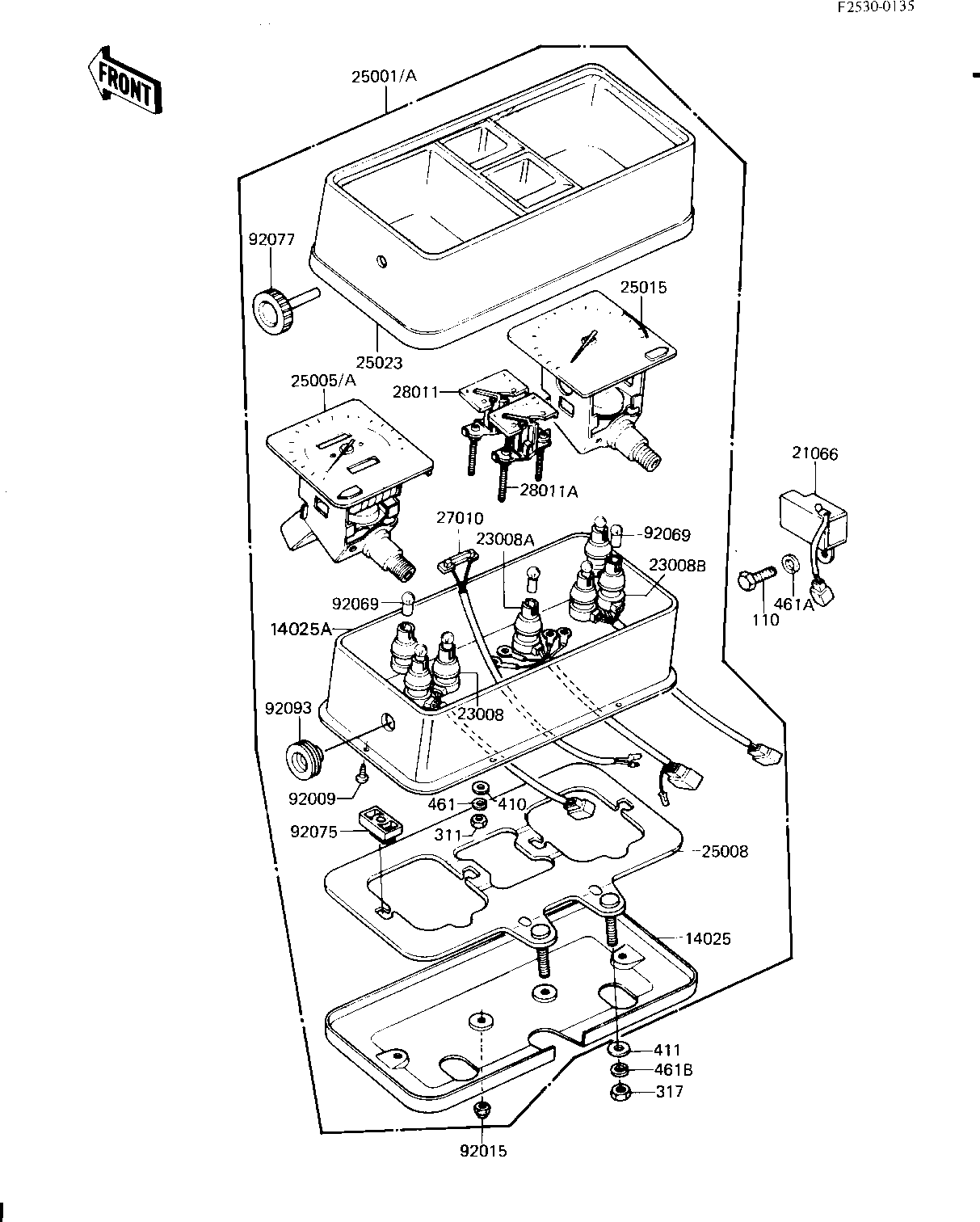

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER,LOWER | 14025 | 14025-1098 | 1 | ||
| COVER,METER CASE | 14025A | 14025-1805 | 1 | ||
| REGULATOR,VOLTAGE | 21066 | 21066-1006 | 1 | ||
| SOCKET-ASSY,SPEEDOMET | 23008 | 23008-1132 | 1 | ||
| SOCKET-ASSY,FUEL METE | 23008A | 23008-1133 | 1 | ||
| SOCKET-ASSY,TACHOMETE | 23008B | 23008-1134 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1296 | 1 | US | |
| METER-ASSY,KPHX1000RPM (Canada | 25001A | 25001-1297 | 1 | CN | |
| SPEEDOMETER UNIT,KPH (Canada) | 25005 | 25005-1051 | 1 | CN | |
| SPEEDOMETER UNIT,MPH | 25005A | 25005-1069 | 1 | US | |
| BRACKET,METER | 25008 | 25008-1015 | 1 | ||
| TACHOMETER UNIT | 25015 | 25015-1037 | 1 | ||
| COVER,METER,UPPER | 25023 | 25023-1010 | 1 | ||
| SENSOR,DISTANCE | 27010 | 27010-1032 | 1 | ||
| METER,FUEL | 28011 | 28011-1003 | 1 | ||
| METER,TEMPERATURE | 28011A | 28011-1007 | 1 | ||
| SCREW,TAPPING | 92009 | 92008-012 | 6 | ||
| NUT-CAP,5MM | 92015 | 322C0500 | 4 | ||
| BULB,12V3.4W | 92069 | 92069-1007 | 7 | ||
| DAMPER,METER BRACKET | 92075 | 92075-1140 | 4 | ||
| KNOB,TRIP | 92077 | 92077-1008 | 1 | ||
| SEAL,TRIP KNOB | 92093 | 92093-1029 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 1 | ||
| NUT,4MM | 311 | 311B0400 | 8 | ||
| NUT,8M/M | 317 | 317B0800 | 2 | ||
| WASHER PLAIN 4MM | 410 | 410B0400 | 4 | ||
| WASHER PLAIN 8MM | 411 | 411B0800 | 2 | ||
| WASHER SPRING 4MM | 461 | 461F0400 | 8 | ||
| WASHER SPRING 6MM | 461A | 461F0600 | 1 | ||
| WASHER SPRING 8MM | 461B | 461F0800 | 2 |
