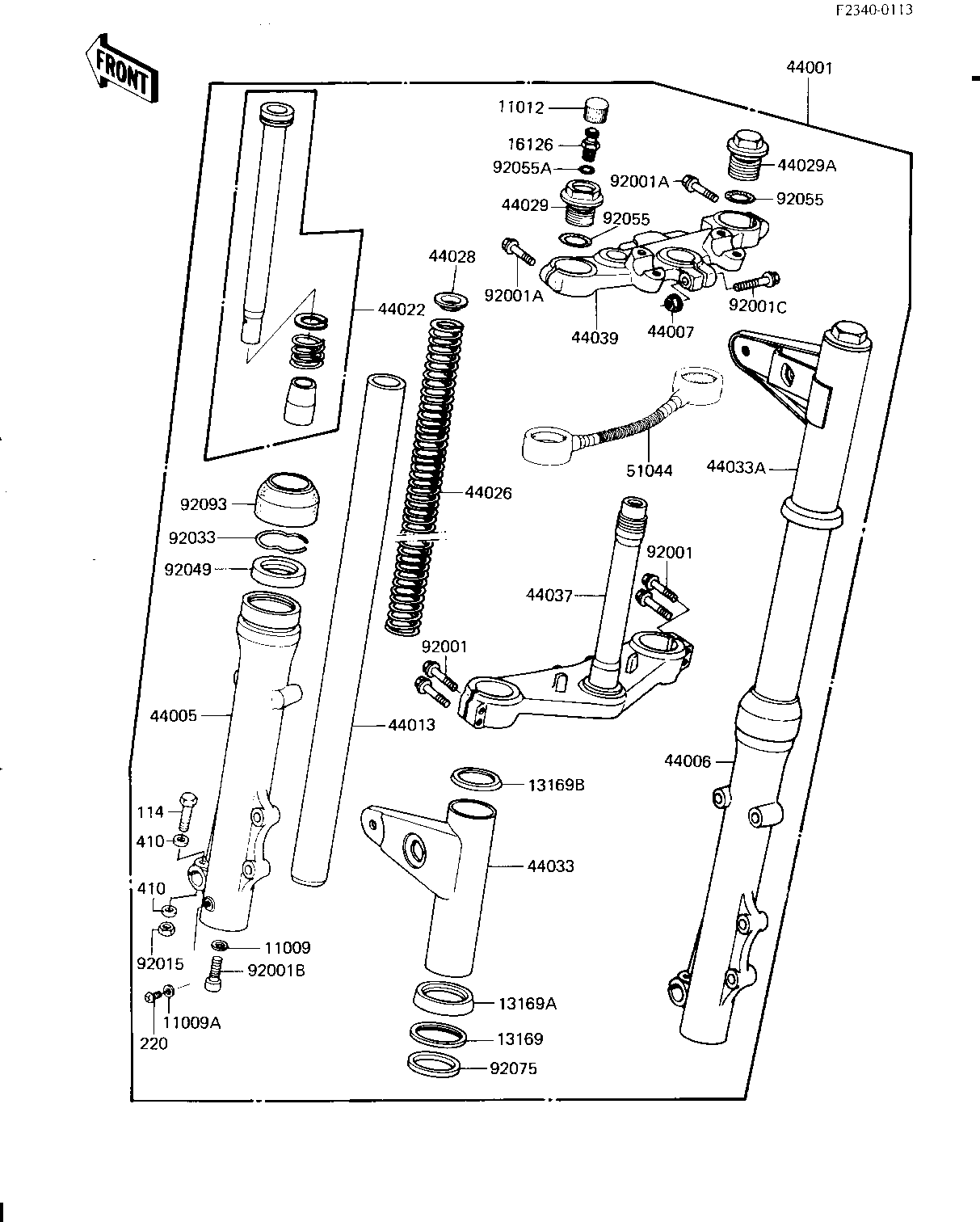

1982 KZ1300-A4 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1127 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
CAP,AIR VALVE 11012 11012-1241 1
GUIDE,FORK COVER DMPE 13169 13169-1154 2
GUIDE,FORK COVER,LOWE 13169A 13169-1163 2
GUIDE,FORK COVER,UPER 13169B 13169-1164 2
VALVE AIR 16126 16126-1052 1
FORK-FRONT 44001 44001-1267 1
TUBE,LH,FORK OUTER 44005 44005-1043 1
TUBE,RH,FORK OUTER 44006 44006-1043 1
NUT,8M/M 44007 44007-1002 1
TUBE FORK INNER 44013 44013-1057 2
CYLINDER-FORK 44022 44022-1029 2
SPRING,FORK 44026 44026-1028 2
GUIDE,FORK SPRING 44028 44028-1003 2
CAP FORK TOP RH 44029 44029-1023 1
CAP FORK TOP LH 44029A 44029-1024 1
COVER FORK LH 44033 44033-1063 1
COVER FORK RH 44033A 44033-1064 1
STEM,STEERING 44037 44037-1016 1
HEAD,STEERING STEM 44039 44039-1013 1
HOSE ASSY FRONT FORK 51044 51044-1005 1
BOLT,8X40 92001 92001-1188 4
BOLT,10X45 92001A 92001-1189 2
BOLT,FORK CYLINDER 92001B 92001-1309 2
BOLT 92001C 92001-1639 1
NUT,LOCK,8MM 92015 92015-1124 2
CIRCLIP 92033 92033-1036 2
OIL SEAL 92049 92049-1043 2
"0" RING,FORK TOP CAP 92055 92055-1050 2
"0" RING,AIR VALVE 92055A 92055-1094 1
DAMPER,FORK COVER 92075 92075-1155 2
DUST SHIELD,FORK 92093 92093-1023 2
BOLT,HEX HEAD,8X55 114 114G0855 2
SCREW PAN HEAD 4X8 220 220B0408 2
WASHER PLAIN 8MM 410 410B0800 4
