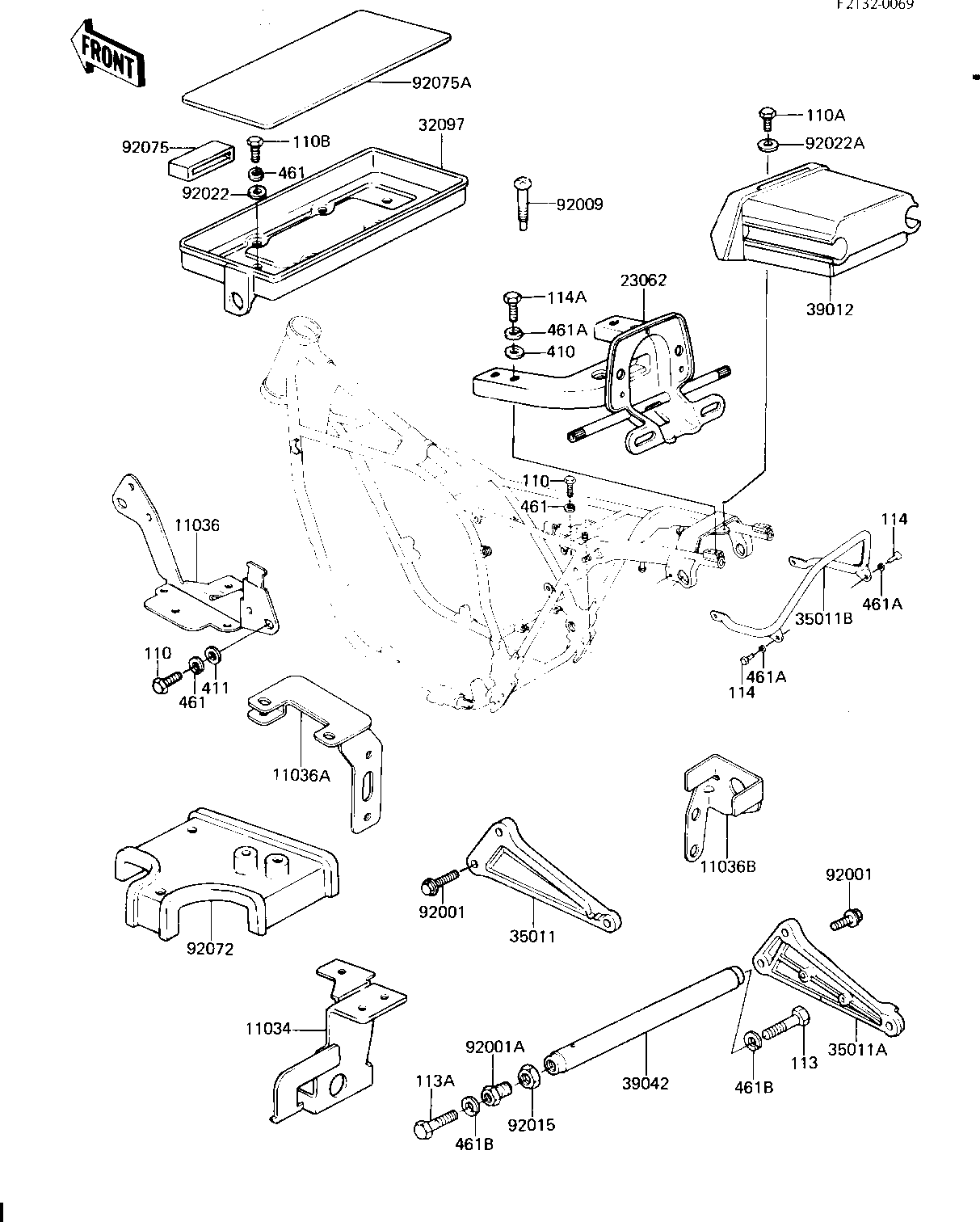

1982 KZ1300-A4 - BATTERY CASE/ELECTRO BRACKET

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BASE 11034 11034-1316 1
BRACKET,MAIN REGULATO 11036 11036-1478 1
BRACKET,SUB REGULATOR 11036A 11036-1479 1
BRACKET,WARNER 11036B 11036-1480 1
BRACKET,ASSY 23062 23062-1003 1
CASE,BATTERY 32097 32097-1015 1
STAY,MUFFLER,L.H 35011 35011-1019 1
STAY,MUFFLER,R.H 35011A 35011-1020 1
STAY,REAR 35011B 35011-1070 1
CASE,STORAGE 39012 39012-1001 1
CROSSMEMBER 39042 39042-1001 1
BOLT,8X28 92001 92001-1095 4
BOLT,CROSSMEMBER FITT 92001A 92001-1216 1
SCREW,6X38 92009 92009-1042 1
NUT,CROSSMEMBER FITTI 92015 92015-1086 1
WASHER 6.5X20X1.6T 92022 92022-125 2
WASHER 6.5X22X1.6T 92022A 92022-237 1
BAND,BATTERY 92072 92072-1021 1
DAMPER,BATTERY 92075 92075-1099 1
DAMPER,BATTERY 92075A 92075-1105 1
BOLT-UPSET,6X12 110 112G0612 5
BOLT-UPSET 6X14 110A 112B0614 1
BOLT-UPSET,6X16 110B 112G0616 2
BOLT,HEX HEAD,10X25 113 113G1025 1
BOLT-UPSET,10X30 113A 112G1030 1
BOLT-SMALL-UPSET,8X14 114 115B0814 2
BOLT-SMALL-UPSET,8X16 114A 115G0816 4
WASHER PLAIN 8MM 410 410B0800 4
WASHER PLAIN 6MM 411 411B0600 3
WASHER SPRING 6MM 461 461F0600 7
WASHER SPRING 8MM 461A 461F0800 6
WASHER SPRING 10MM 461B 461F1000 2
