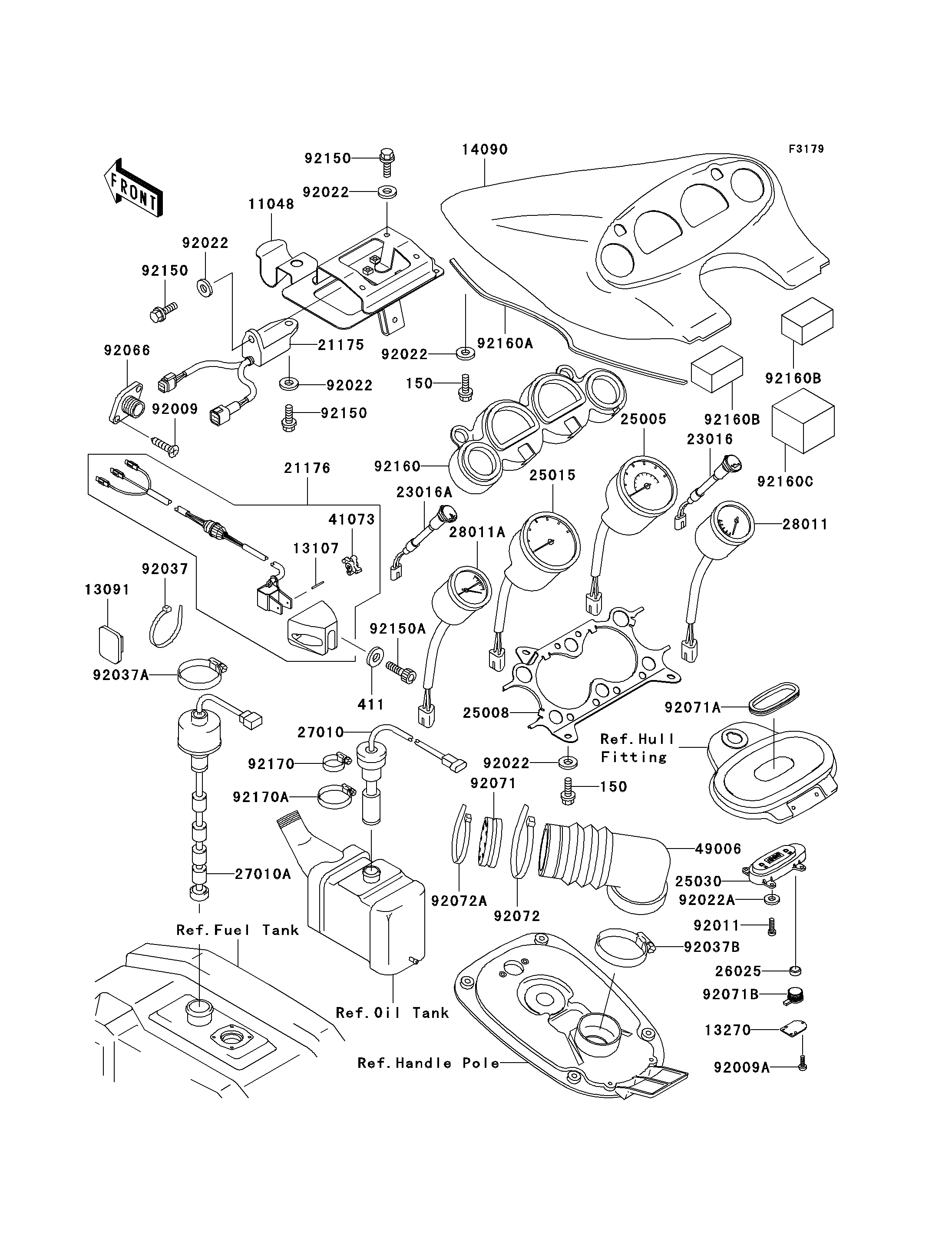

1996 1100 ZXi - Meters(JH1100-A1)

DOWNLOAD PDF
SELECT A NEW PART
11048
11048
13091
13091
13107
13107
13270
13270
14090
14090
21175
21175
21176
21176
23016
23016
23016A
23016A
25005
25005
25008
25008
25015
25015
25030
25030
26025
26025
27010
27010
27010A
27010A
28011
28011
28011A
28011A
41073
41073
49006
49006
92009
92009
92009A
92009A
92011
92011
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022A
92022A
92037
92037
92037A
92037A
92037B
92037B
92066
92066
92071
92071
92071A
92071A
92071B
92071B
92072
92072
92072A
92072A
92150
92150
92150
92150
92150
92150
92150A
92150A
92160
92160
92160A
92160A
92160B
92160B
92160B
92160B
150
150
150
150
411
411
92160C
92160C
92170
92170
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UNIT MOUNT 11048 11048-3766 1
HOLDER,BAND 13091 13091-3764 3
SHAFT,PADDLEWHEEL 13107 13107-3743 1
PLATE 13270 13270-3838 1
COVER,METER,EBONY 14090 14090-3749-H8 1
CONTROL UNIT-ELECTRONIC 21175 21175-3701 1
SENSOR,SPEEDOMETER 21176 21176-3719 1
LAMP-ASSY,OIL LEVEL WARNING 23016 23016-3703 1
LAMP-ASSY,WATER TEMP WARNING 23016A 23016-3704 1
SPEEDOMETER 25005 25005-3702 1
BRACKET-METER 25008 25008-3705 1
TACHOMETER,X1000R/MIN 25015 25015-3702 1
CLOCK,GRAY 25030 25030-3702-RA 1
CELL,1.5V,SR44(TOSHIBA) 26025 1 (LOCAL PROCUREMENT ITEM)
SWITCH,OIL LEVEL 27010 27010-3740 1
SWITCH,FUEL LEVEL 27010A 27010-3746 1
METER,FUEL 28011 28011-3708 1
METER,TRIM 28011A 28011-3718 1
WHEEL-ASSY,PADDLE 41073 41073-3701 1
BOOT,HARNESS 49006 49006-3715 1
SCREW,TAPPING,4X14 92009 92009-3755 2
SCREW,TAPPING,2X8 92009A 92009-3826 3
SCREW 92011 92011-562 4
WASHER,6.5X20X1.5 92022 92022-3710 11
WASHER 92022A 92022-563 4
CLAMP 92037 92037-1173 3
CLAMP 92037A 92037-3009 1
CLAMP 92037B 92037-3711 1
PLUG,SPEEDOMETER SENSER 92066 92066-3750 1
GROMMET,HARNESS 92071 92071-3803 1
GROMMET,CLOCK 92071A 92071-3810 1
GROMMET 92071B 92071-3813 1
BAND,L=292.1 92072 92072-3509 1
BAND 92072A 92072-3778 2
BOLT,6X20 92150 92150-3758 5
BOLT,SOCKET,6X25 92150A 92150-3823 2
DAMPER,METER 92160 92160-3834 1
DAMPER 92160A 92160-3843 2
DAMPER 92160B 92160-3859 2
BOLT-WS,6X14 150 150R0614 6
WASHER-PLAIN,6MM 411 411S0600 2
DAMPER 92160C 92160-3862 1
CLAMP 92170 92170-3718 1
CLAMP 92170A 92170-3734 1
