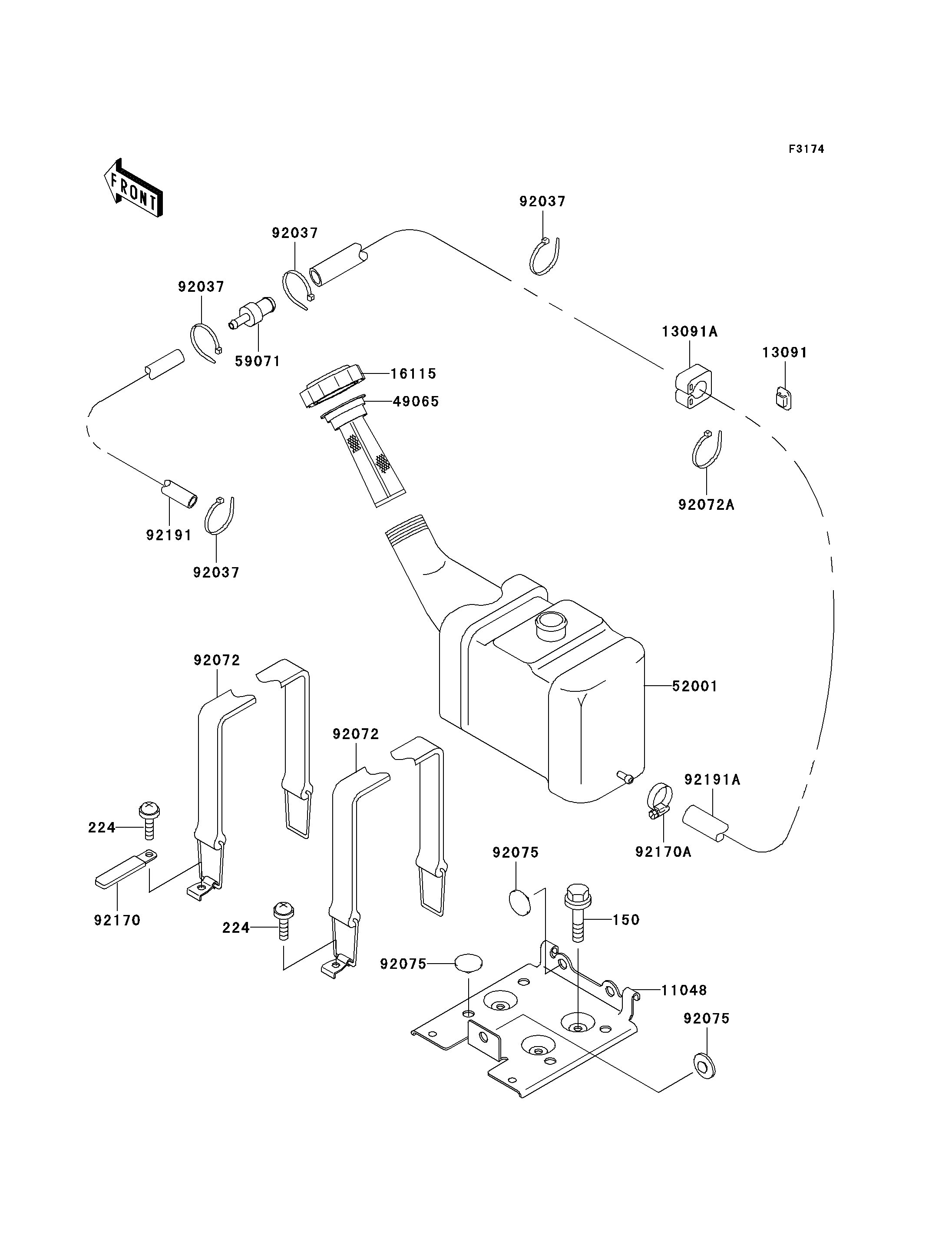

1996 1100 ZXi - Oil Tank(JH1100-A1)

DOWNLOAD PDF
SELECT A NEW PART
150
224
224
11048
13091
13091A
16115
49065
52001
59071
92037
92037
92037
92037
92072
92072
92072A
92075
92075
92075
92170
92170A
92191
92191A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS,6X16 150 150R0616 3
SCREW-PAN-WP-CROS 224 224R0614 2
BRACKET,OIL TANK 11048 11048-3773 1
HOLDER,BAND 13091 13091-3764 1
HOLDER 13091A 13091-3805 4
CAP-OIL FILLER 16115 16115-3714 1
FILTER-OIL 49065 49065-3702 1
TANK-OIL 52001 52001-3724 1
JOINT 59071 59071-3748 1
CLAMP 92037 92037-1173 4
BAND,BATTERY 92072 92072-3748 2
BAND 92072A 92072-3778 1
DAMPER,RUBBER 92075 92075-261 7
CLAMP 92170 92170-3705 1
CLAMP 92170A 92170-3718 1
TUBE,6X10X100 92191 92191-3782 1
TUBE,12X17X1400 92191A 92191-3791 1
