Parts Diagrams |
13325
13325
39027
39027
39028
39028
39028D
39028D
39028H
39028H
53004A
53004A
53004A
53004A
53004C
53004C
53004C
53004C
53004E
53004E
53004H
53004H
59201
59201
59201
59201
59201C
59201C
59201F
59201F
59504B
59504B
59504B
59504B
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200

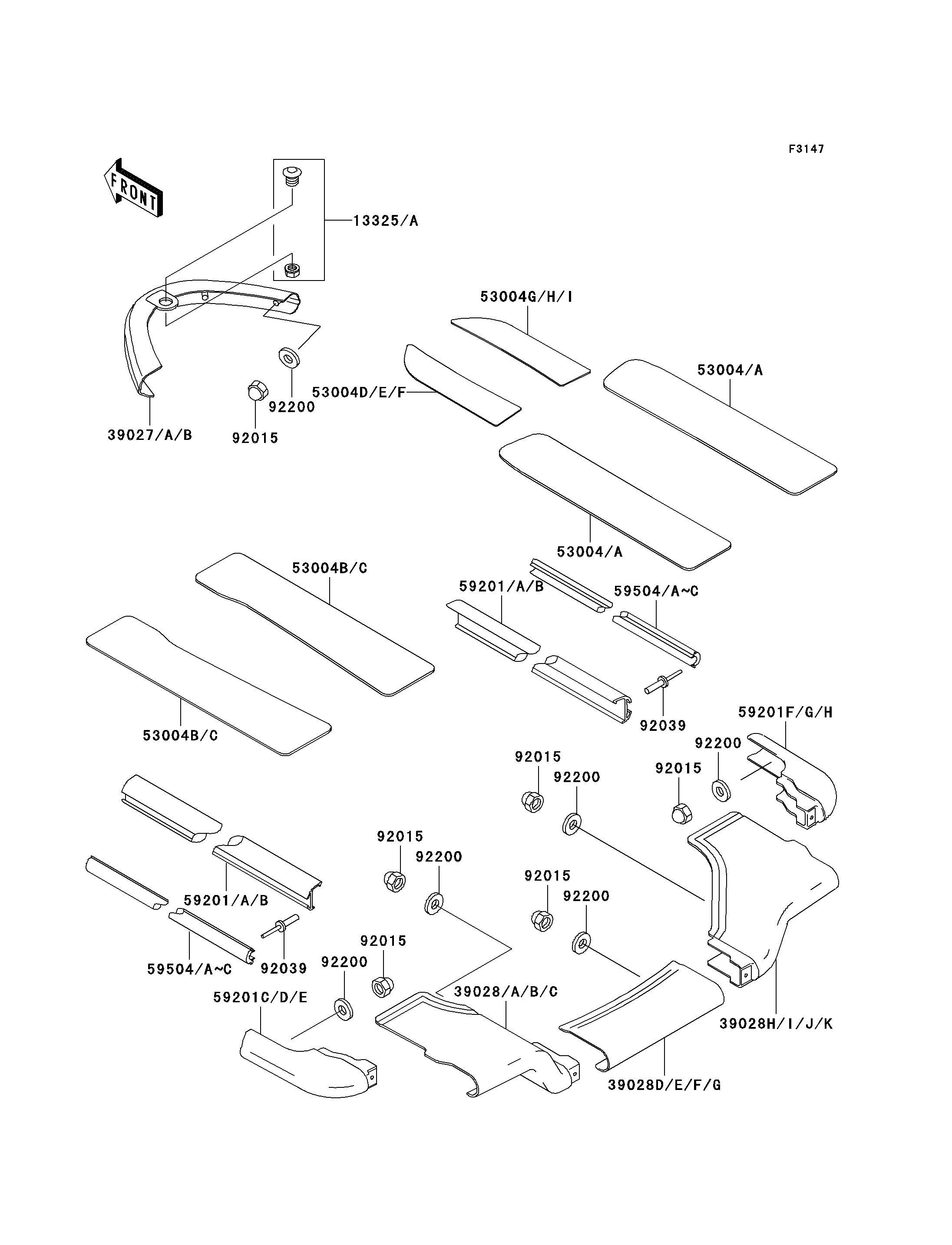

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BUSHING-ASSY,BLACK | 13325 | 13325-3703 | 1 | ||
| BUMPER-FRONT,D.BURGUNDY | 39027 | 39027-3729-AQ | 1 | ||
| BUMPER-REAR,LH,D.BURGUNDY | 39028 | 39028-3730-AQ | 1 | ||
| BUMPER-REAR,CNT,D.BURGUNDY | 39028D | 39028-3731-AQ | 1 | ||
| BUMPER-REAR,RH,D.BURGUNDY | 39028H | 39028-3732-AQ | 1 | ||
| MAT,FLOOR,FR,S.GRAY | 53004A | 53004-3755-RG | 2 | ||
| MAT,FLOOR,RR,S.GRAY | 53004C | 53004-3756-RG | 2 | ||
| MAT,FOOT BOARD,LH,S.GRAY | 53004E | 53004-3757-RG | 1 | ||
| MAT,FOOT BOARD,RH,S.GRAY | 53004H | 53004-3758-RG | 1 | ||
| BUMPER,SIDE,D.BURGUNDY | 59201 | 59201-3753-AQ | 2 | ||
| BUMPER,CORNER,LH,D.BURGUNDY | 59201C | 59201-3764-AQ | 1 | ||
| BUMPER,CORNER,RH,D.BURGUNDY | 59201F | 59201-3765-AQ | 1 | ||
| INSERT-BOAT FENDER,D.BURGUNDY | 59504B | 59504-3722-AQ | 2 | ||
| NUT,CAP,5MM | 92015 | 92015-3802 | 15 | ||
| RIVET | 92039 | 92039-3747 | 24 | ||
| WASHER,5.9X16X1.5 | 92200 | 92200-3714 | 15 |
| BUSHING-ASSY,BLACK | |
| REF # | 13325 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-FRONT,D.BURGUNDY | |
| REF # | 39027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-REAR,LH,D.BURGUNDY | |
| REF # | 39028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-REAR,CNT,D.BURGUNDY | |
| REF # | 39028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER-REAR,RH,D.BURGUNDY | |
| REF # | 39028H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,FLOOR,FR,S.GRAY | |
| REF # | 53004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MAT,FLOOR,RR,S.GRAY | |
| REF # | 53004C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MAT,FOOT BOARD,LH,S.GRAY | |
| REF # | 53004E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT,FOOT BOARD,RH,S.GRAY | |
| REF # | 53004H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,SIDE,D.BURGUNDY | |
| REF # | 59201 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUMPER,CORNER,LH,D.BURGUNDY | |
| REF # | 59201C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUMPER,CORNER,RH,D.BURGUNDY | |
| REF # | 59201F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSERT-BOAT FENDER,D.BURGUNDY | |
| REF # | 59504B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 24 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.9X16X1.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
