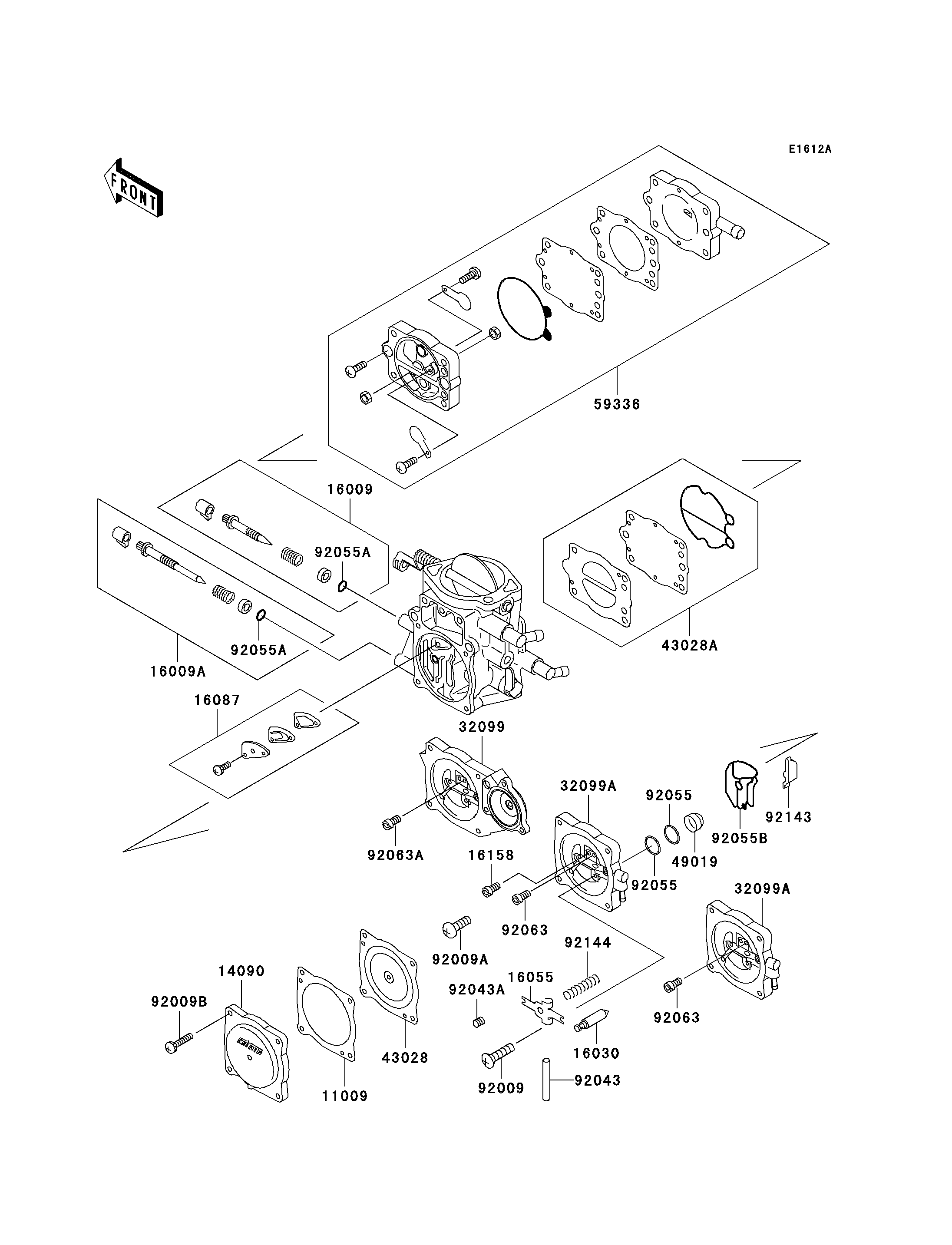

1996 1100 ZXi - Carburetor Parts(JHT10AE006978-)

DOWNLOAD PDF
SELECT A NEW PART
11009
14090
16009
16009A
16030
16055
16087
16158
32099
32099A
32099A
43028
43028A
49019
59336
92009
92009A
92009B
92043
92043A
92055
92055
92055A
92055A
92055B
92063
92063
92063A
92143
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DIAPHRAGM 11009 11009-3730 3
COVER,DIAPHRAGM 14090 14090-3702 3
NEEDLE-JET,MAIN 16009 16009-3719 3
NEEDLE-JET,SLOW 16009A 16009-3720 3
VALVE-FLOAT 16030 16030-3701 3
ARM-FLOAT 16055 16055-3701 3
VALVE-CHECK,MAIN 16087 16087-3705 3
JET-SLOW,#78 16158 16158-3712 3
CASE,FR 32099 32099-3813 1
CASE 32099A 32099-3824 2
DIAPHRAGM,CARBURETOR 43028 43028-3704 3
DIAPHRAGM,PUMP 43028A 43028-3706 1
FILTER-FUEL,STRAINER 49019 49019-3707 3
CASE-PUMP 59336 59336-3710 2
SCREW,3X8 92009 92009-3712 3
SCREW,4X8 92009A 92009-3804 3
SCREW,4X18 92009B 92009-3808 12
PIN,FLOAT 92043 92043-1209 3
PIN,THROTTLE STOP SCREW 92043A 92043-3712 3
RING-O 92055 92055-1246 6
RING-O,ADJUST SCREW 92055A 92055-3713 6
RING-O 92055B 92055-3735 3
JET-MAIN,#120 92063 92063-3702 2
JET-MAIN,#125 92063A 92063-3710 1
COLLAR 92143 92143-3727 3
SPRING,FLOAT ARM 92144 92144-3744 3
