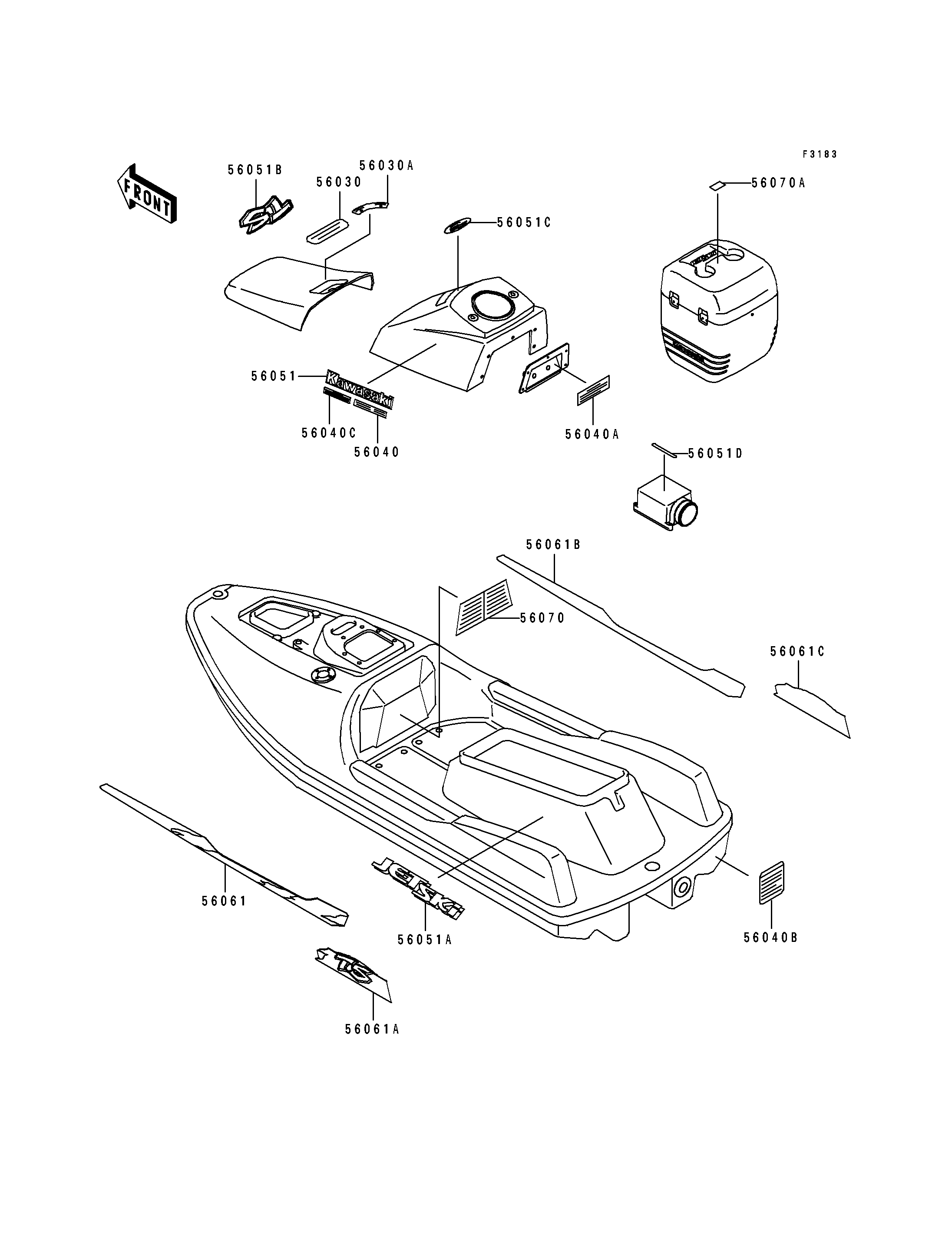

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,FIRE EXTINGUISHER | 56030 | 56030-3755 | 1 | ||
| LABEL,OPEN-LOCK | 56030A | 56030-3781 | 1 | ||
| LABEL-WARNING,OIL-FUEL MIXTURE | 56040 | 56040-3800 | 1 | ||
| LABEL-WARNING,TETHER SWITCH | 56040A | 56040-3804 | 1 | ||
| LABEL-WARNING,NOZZLE | 56040B | 56040-3898 | 1 | ||
| LABEL-WARNING,FUEL SUPPLY | 56040C | 56040-3902 | 1 | ||
| MARK,DECK,KAWASAKI | 56051 | 56051-3728 | 2 | ||
| MARK,DECK,JET SKI | 56051A | 56051-3729 | 2 | ||
| MARK,HATCH COVER,TS | 56051B | 56051-3732 | 1 | ||
| MARK,METER COVER,JET SKI | 56051C | 56051-3735 | 1 | ||
| MARK,MARINE ENGINE | 56051D | 56051-3741 | 1 | ||
| PATTERN,DECK,FR,LH | 56061 | 56061-3754 | 1 | ||
| PATTERN,DECK,RR,LH | 56061A | 56061-3755 | 1 | ||
| PATTERN,DECK,FR,RH | 56061B | 56061-3756 | 1 | ||
| PATTERN,DECK,RR,RH | 56061C | 56061-3757 | 1 | ||
| LABEL-WARNING,IMPORTANT SAFETY | 56070 | 56070-3743 | 1 | ||
| LABEL-WARNING,ICE BOX | 56070A | 56070-3800 | 1 |
