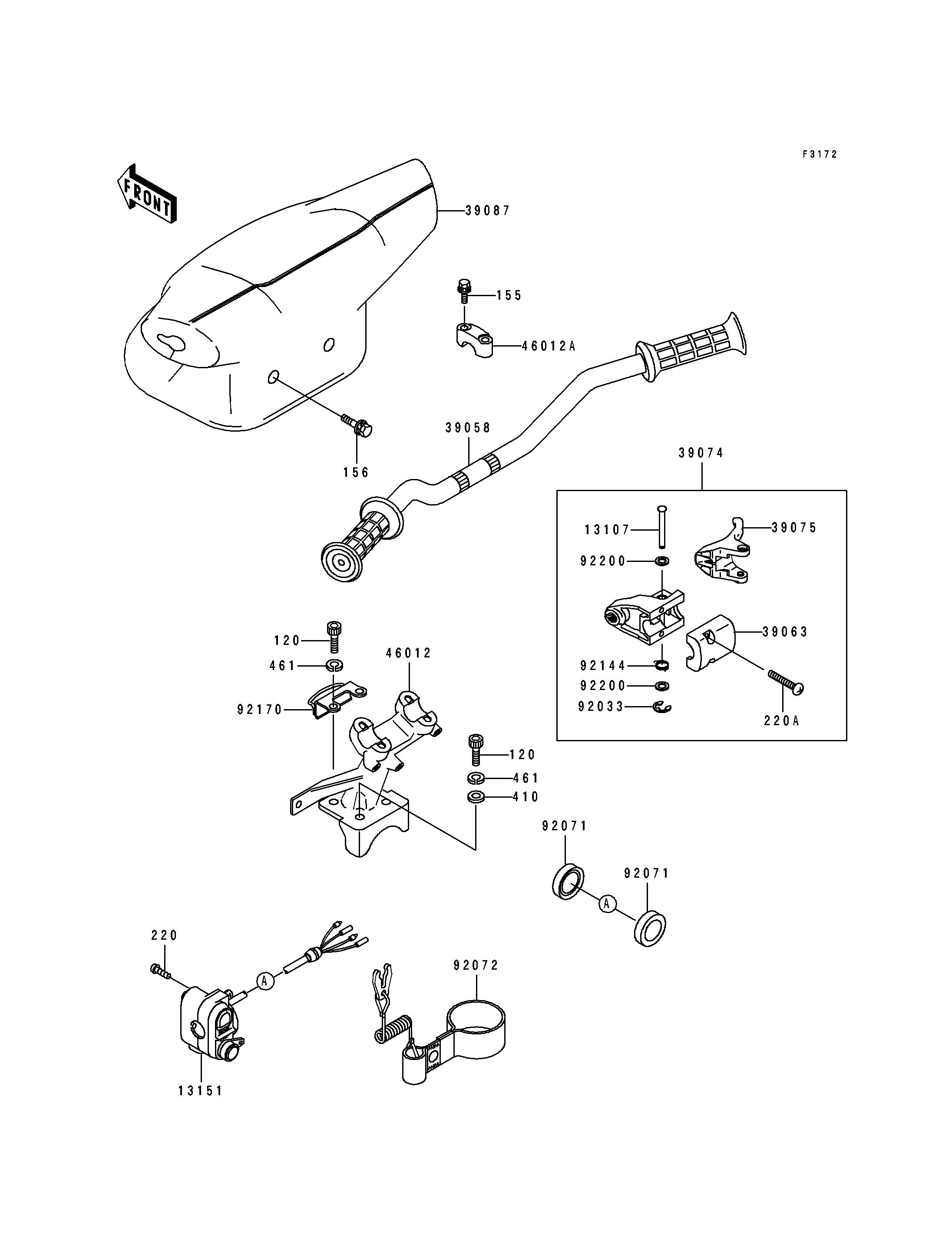

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT | 13107 | 13107-3740 | 1 | ||
| SWITCH-COMP,STOP&START | 13151 | 13151-3710 | 1 | ||
| HANDLE-COMP,J.S.VIOLET | 39058 | 39058-3716-63 | 1 | ||
| HOUSING-CONTROL | 39063 | 39063-3720 | 1 | ||
| LEVER-ASSY-THROTTLE | 39074 | 39074-3717 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-3710 | 1 | ||
| PAD-HANDLE,J.S.VIOLET | 39087 | 39087-3719-PJ | 1 | ||
| HOLDER-HANDLE,LWR | 46012 | 46012-3718 | 1 | ||
| HOLDER-HANDLE,UPP | 46012A | 46012-3720 | 2 | ||
| RING-SNAP | 92033 | 92033-3723 | 1 | ||
| GROMMET | 92071 | 92071-3771 | 2 | ||
| BAND,TETHER SWITCH | 92072 | 92072-3767 | 1 | ||
| SPRING | 92144 | 92144-3749 | 1 | ||
| CLAMP,HARNESS&CABLE | 92170 | 92170-3727 | 1 | ||
| WASHER | 92200 | 92200-3738 | 2 | ||
| BOLT-SOCKET,8X25 | 120 | 120R0825 | 4 | ||
| BOLT-WSP-SMALL,8X35 | 155 | 155R0835 | 4 | ||
| BOLT-WP,6X18 | 156 | 156R0618 | 2 | ||
| SCREW-PAN-CROS,5X30 | 220 | 220R0530 | 2 | ||
| SCREW-PAN-CROS | 220A | 220R0630 | 2 | ||
| WASHER-PLAIN-SMALL,8MM | 410 | 410S0800 | 2 | ||
| WASHER-SPRING,8MM | 461 | 461S0800 | 4 |
| SHAFT | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-COMP,STOP&START | |
| REF # | 13151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLE-COMP,J.S.VIOLET | |
| REF # | 39058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-CONTROL | |
| REF # | 39063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-THROTTLE | |
| REF # | 39074 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-THROTTLE | |
| REF # | 39075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD-HANDLE,J.S.VIOLET | |
| REF # | 39087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLE,LWR | |
| REF # | 46012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLE,UPP | |
| REF # | 46012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,TETHER SWITCH | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HARNESS&CABLE | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X25 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-WSP-SMALL,8X35 | |
| REF # | 155 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-WP,6X18 | |
| REF # | 156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X30 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,8MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,8MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
