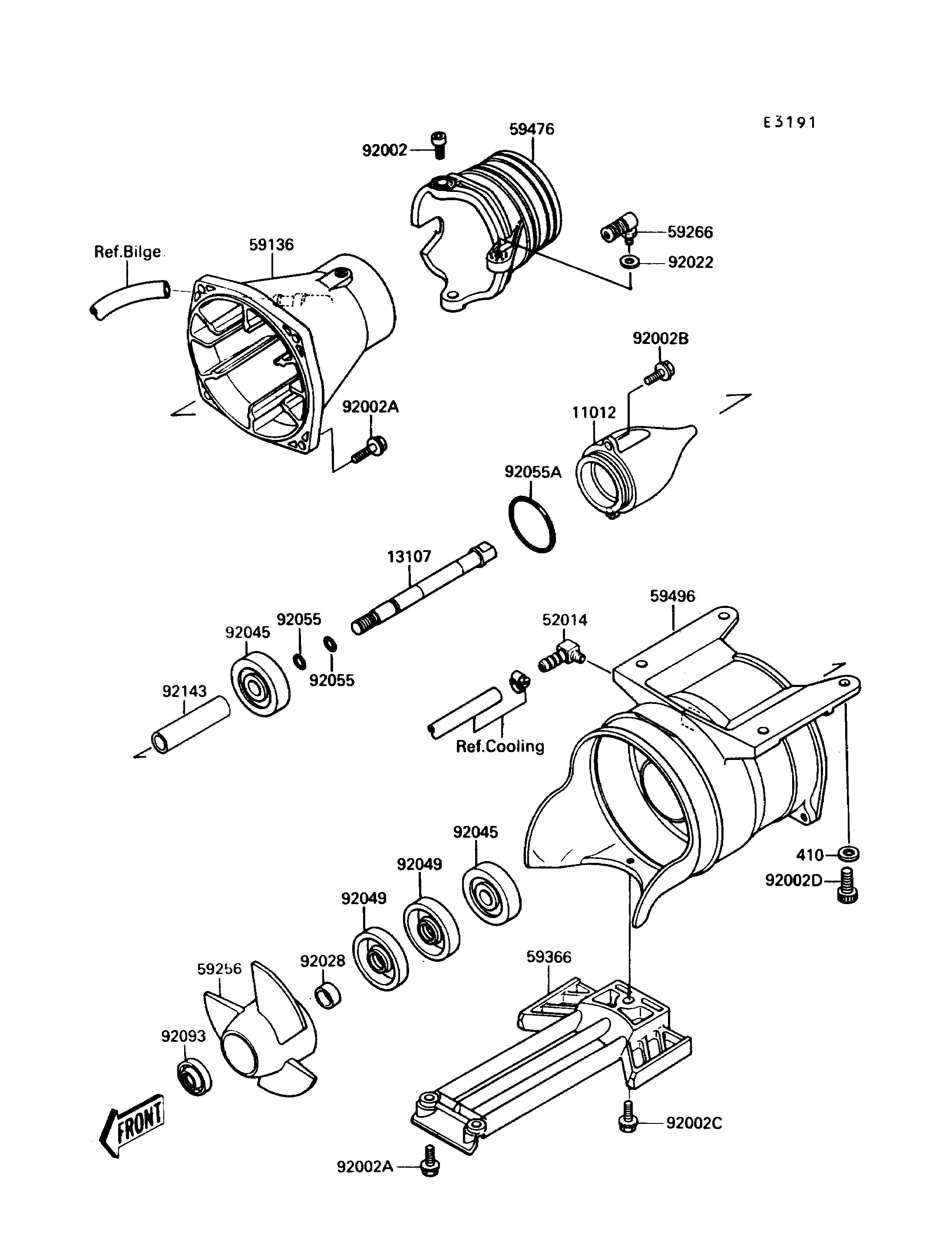

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,JET PUMP | 11012 | 11012-3712 | 1 | ||
SHAFT,JET PUMP | 13107 | 13107-3708 | 1 | ||
ELBOW | 52014 | 52014-3002 | 1 | ||
NOZZLE-PUMP | 59136 | 59136-3710 | 1 | ||
IMPELLER | 59256 | 59256-3705 | 1 | ||
JOINT-BALL | 59266 | 59266-3701 | 1 | ||
GRATE | 59366 | 59366-3705 | 1 | ||
NOZZLE-STRG | 59476 | 59476-3711 | 1 | ||
VANE-GUIDE | 59496 | 59496-3701 | 1 | ||
BOLT,SOCKET,6X11 | 92002 | 92001-3701 | 2 | ||
BOLT,6X25 | 92002A | 92002-3714 | 6 | ||
BOLT,6X16 | 92002B | 92002-3728 | 2 | ||
BOLT,6X20 | 92002C | 92002-3755 | 1 | ||
BOLT,SOCKET,8X20 | 92002D | 92002-3771 | 4 | ||
WASHER | 92022 | 92022-567 | 1 | ||
BUSHING,17X25X15 | 92028 | 92028-3717 | 1 | ||
BEARING-BALL,#63032RD | 92045 | 92045-3706 | 2 | ||
SEAL-OIL,S625476 | 92049 | 92049-3708 | 2 | ||
RING-O,13X1.9 | 92055 | 92055-1021 | 2 | ||
RING-O | 92055A | 92055-3706 | 1 | ||
SEAL | 92093 | 92093-3702 | 1 | ||
COLLAR,17.4X25.4X53 | 92143 | 92143-3708 | 1 | ||
WASHER-PLAIN-SMALL,8MM | 410 | 410S0800 | 4 |
CAP,JET PUMP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,JET PUMP | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELBOW | |
REF # | 52014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE-PUMP | |
REF # | 59136 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IMPELLER | |
REF # | 59256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRATE | |
REF # | 59366 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE-STRG | |
REF # | 59476 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VANE-GUIDE | |
REF # | 59496 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X11 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X20 | |
REF # | 92002D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,17X25X15 | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#63032RD | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,S625476 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,13X1.9 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,17.4X25.4X53 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,8MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
