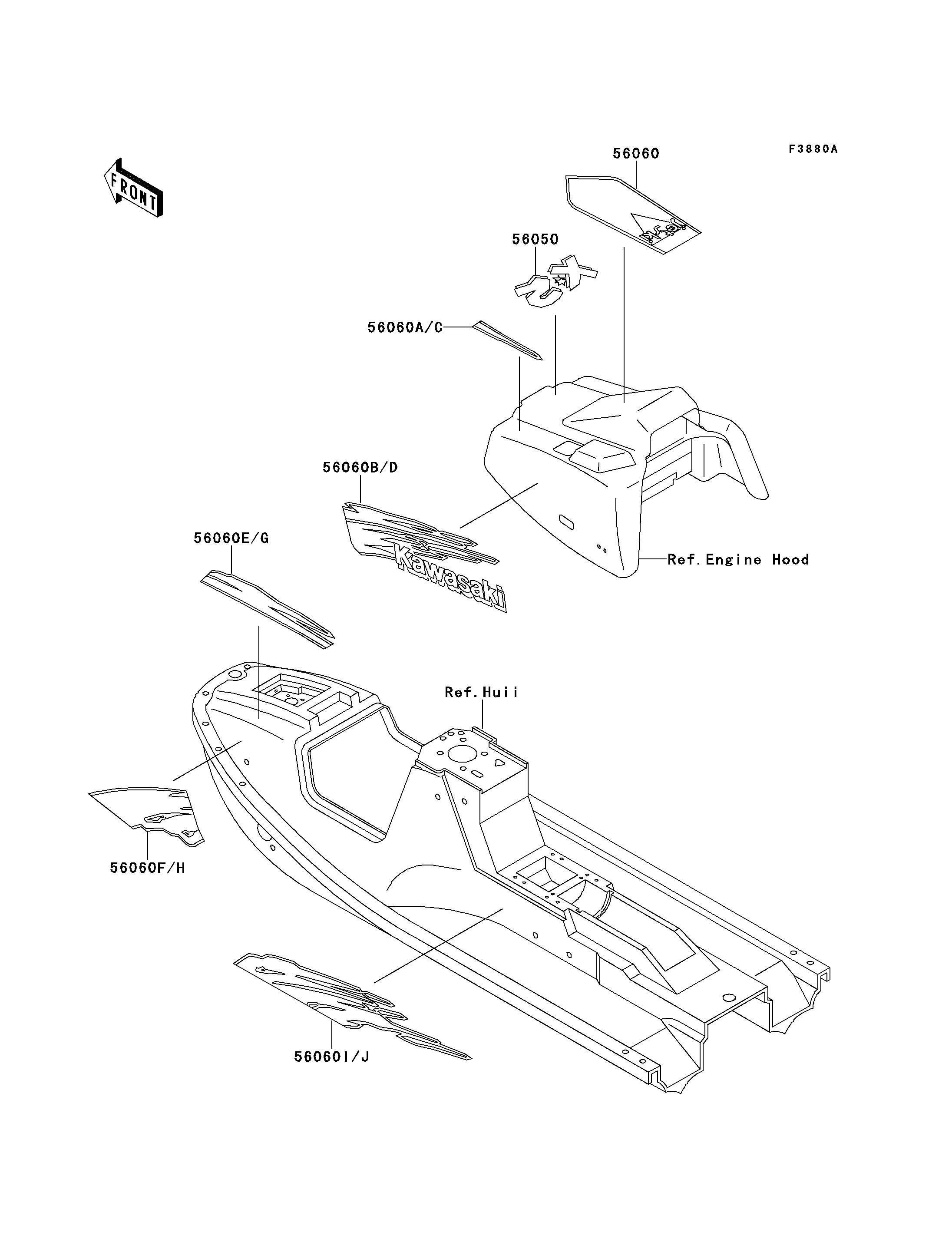

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,X2 | 56050 | 56050-1849 | 1 | ||
| PATTERN,ENGINE HOOD,UPP | 56060 | 56060-1264 | 1 | ||
| PATTERN,ENGINE HOOD,LH,UPP | 56060A | 56060-1265 | 1 | ||
| PATTERN,ENGINE HOOD,LH,LWR | 56060B | 56060-1266 | 1 | ||
| PATTERN,ENGINE HOOD,RH,UPP | 56060C | 56060-1267 | 1 | ||
| PATTERN,ENGINE HOOD,RH,LWR | 56060D | 56060-1268 | 1 | ||
| PATTERN,DECK,FR,LH,UPP | 56060E | 56060-1269 | 1 | ||
| PATTERN,DECK,FR,LH,LWR | 56060F | 56060-1270 | 1 | ||
| PATTERN,DECK,FR,RH,UPP | 56060G | 56060-1271 | 1 | ||
| PATTERN,DECK,FR,RH,LWR | 56060H | 56060-1272 | 1 | ||
| PATTERN,DECK,RR,LH | 56060I | 56060-1273 | 1 | ||
| PATTERN,DECK,RR,RH | 56060J | 56060-1274 | 1 |
