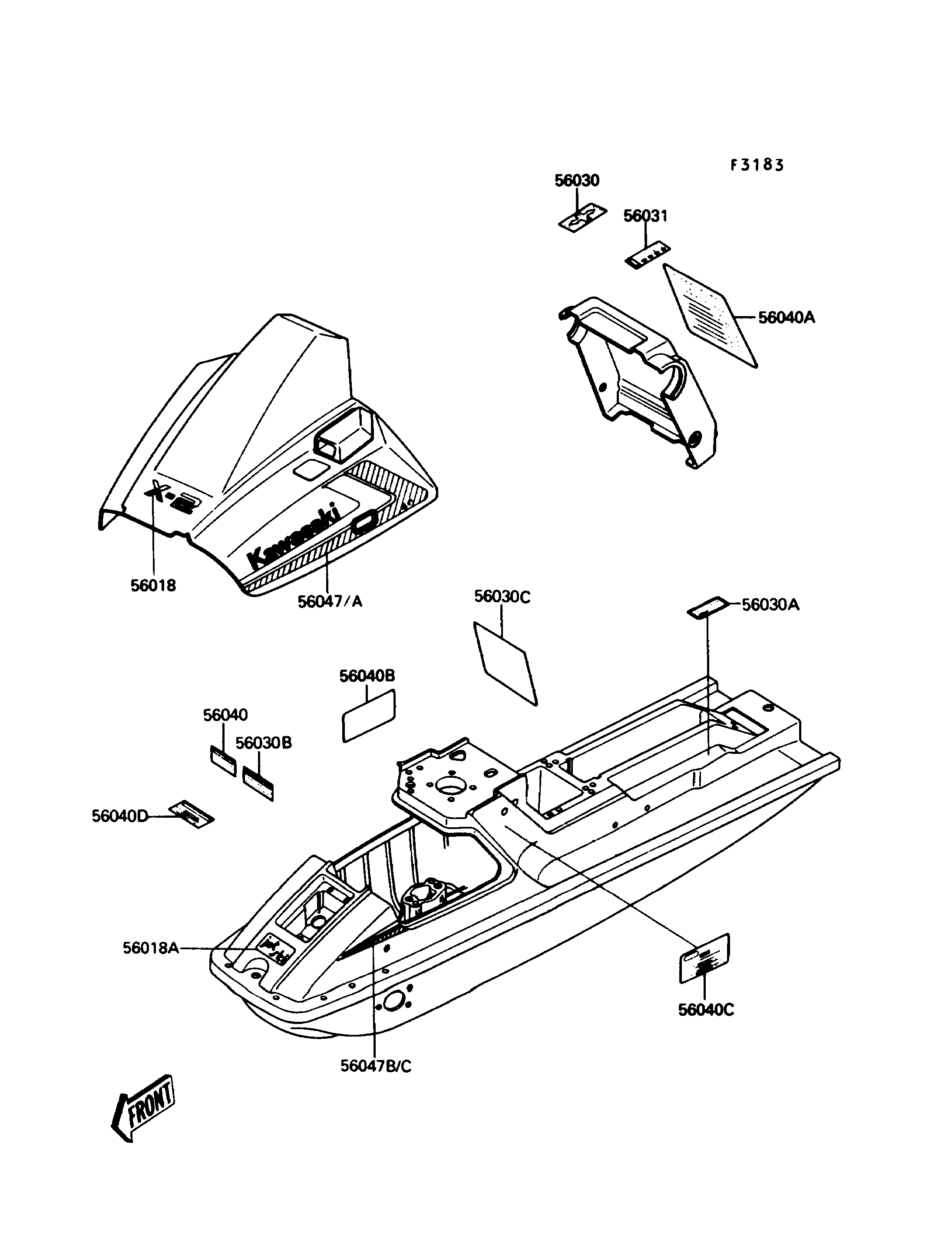

Parts Diagrams |
56018
56018A
56030
56030A
56030B
56030C
56031
56040
56040A
56040B
56040C
56040D
56047
56047A
56047B
56047C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ENGINE HOOD,TOP | 56018 | 56018-1995 | 1 | ||
| MARK,HULL DECK,TOP | 56018A | 56018-1996 | 1 | ||
| LABEL,FUEL | 56030 | 56030-3719 | 1 | ||
| LABEL,FIRE EXTINGUISHER | 56030A | 56030-3720 | 1 | ||
| LABEL,OIL | 56030B | 56030-3721 | 1 | ||
| LABEL,LAUNCHING | 56030C | 56030-3723 | 1 | ||
| LABEL-MANUAL,NOZZLE-TILT | 56031 | 56031-3708 | 1 | ||
| LABEL-WARNING,FUEL | 56040 | 56040-3712 | 1 | ||
| LABEL-WARNING,SAFETY | 56040A | 56040-3713 | 1 | ||
| LABEL-WARNING,CAUTION | 56040B | 56040-3715 | 1 | ||
| LABEL-WARNING,SAFETY | 56040C | 56040-3737 | 1 | ||
| LABEL-WARNING,BREAK-IN | 56040D | 56040-3738 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56047 | 56047-1543 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56047A | 56047-1544 | 1 | ||
| PATTERN,HULL DECK,LH | 56047B | 56047-1545 | 1 | ||
| PATTERN,HULL DECK,RH | 56047C | 56047-1546 | 1 |
