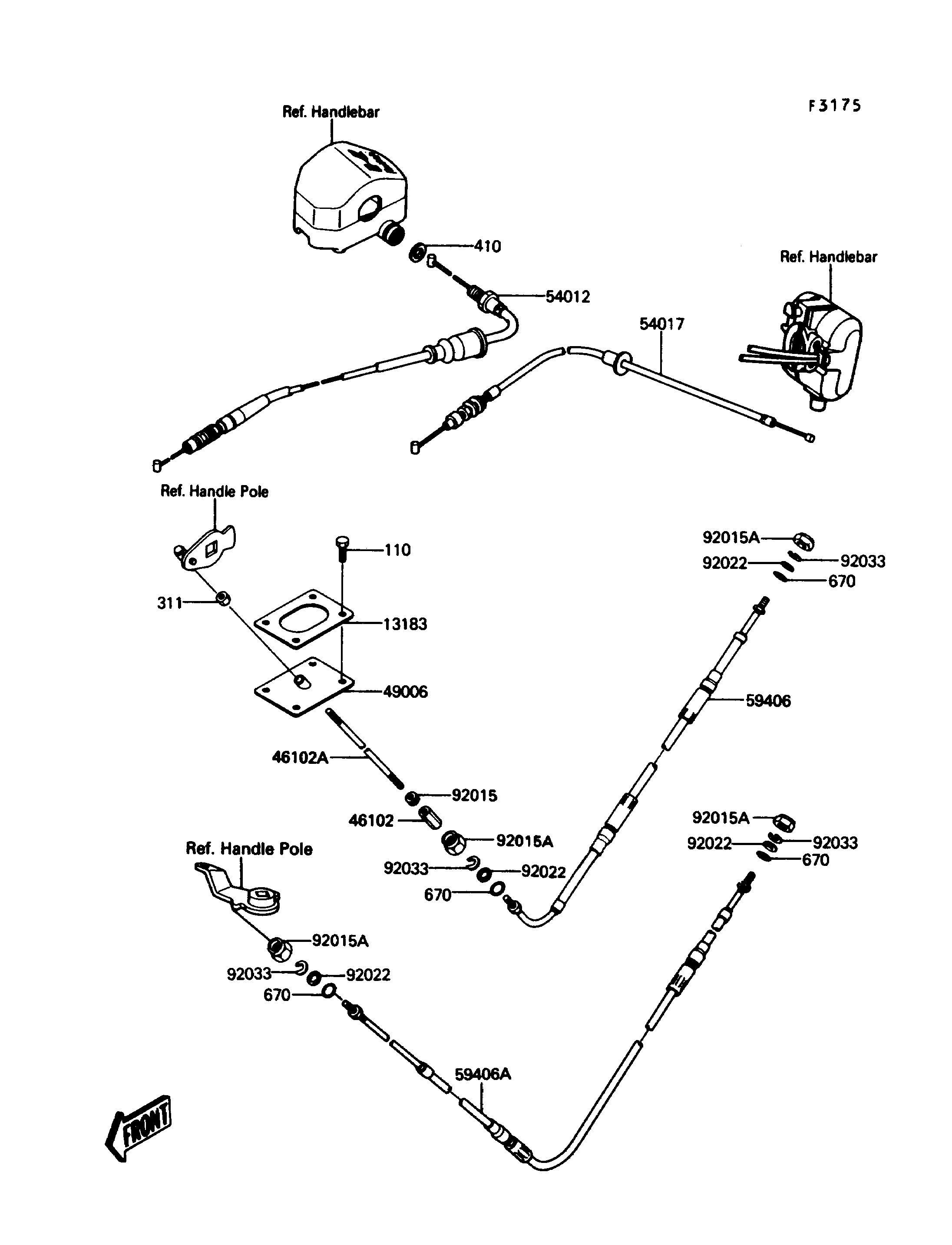

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
110
311
410
670
670
670
670
13183
46102
46102A
49006
54012
54017
59406
59406A
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92033
92033
92033
92033
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,5X16 | 110 | 110R0516 | 4 | ||
| NUT-HEX,5MM | 311 | 311R0500 | 1 | ||
| W-PLAIN-S,10MM | 410 | 410S1000 | 1 | ||
| O RING,11MM | 670 | 670B2011 | 4 | ||
| PLATE | 13183 | 13169-3713 | 1 | ||
| ROD,L=40 | 46102 | 46102-3706 | 1 | ||
| ROD,5X125 | 46102A | 46102-3707 | 1 | ||
| BOOT | 49006 | 49006-3706 | 1 | ||
| CABLE-THROTTLE | 54012 | 54012-3715 | 1 | ||
| CABLE-STARTER | 54017 | 54017-3714 | 1 | ||
| CABLE-STRG,UP&DOWN | 59406 | 59406-3711 | 1 | ||
| CABLE-STRG | 59406A | 59406-3719 | 1 | ||
| NUT,5MM | 92015 | 92015-3754 | 1 | ||
| NUT,20MM | 92015A | 92015-526 | 4 | ||
| WASHER | 92022 | 92022-535 | 4 | ||
| RING-SNAP | 92033 | 92036-501 | 4 |
| BOLT,5X16 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,5MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| W-PLAIN-S,10MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,11MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,L=40 | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,5X125 | |
| REF # | 46102A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-THROTTLE | |
| REF # | 54012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STARTER | |
| REF # | 54017 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STRG,UP&DOWN | |
| REF # | 59406 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STRG | |
| REF # | 59406A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
