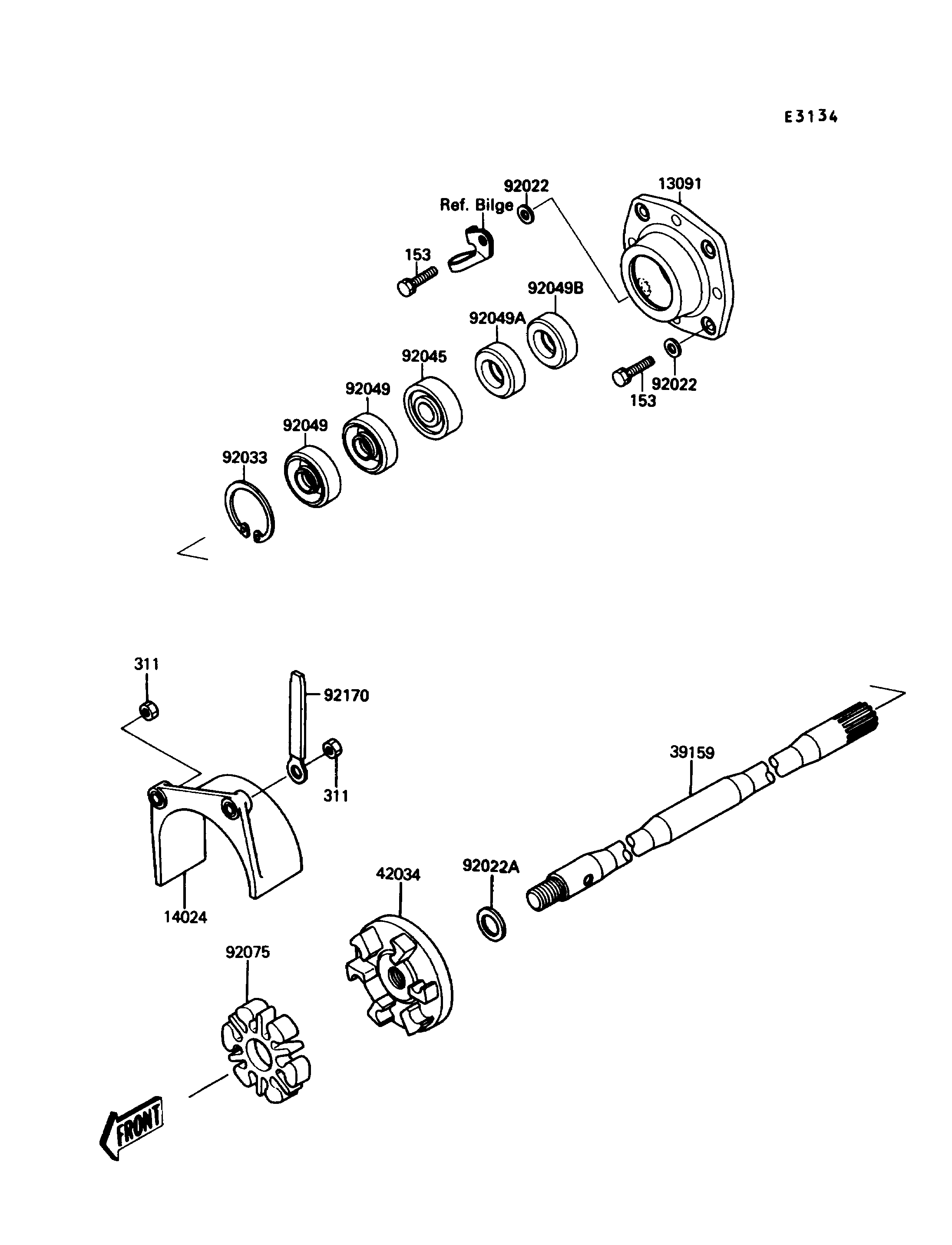

Parts Diagrams |
153
153
311
311
13091
14024
39159
42034
92022
92022
92022A
92033
92045
92049
92049
92049A
92049B
92075
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-WS-SMALL | 153 | 153R0825 | 4 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 2 | ||
| HOLDER | 13091 | 13091-3730 | 1 | ||
| COVER,COUPLING | 14024 | 14024-3728 | 1 | ||
| SHAFT-DRIVE | 39159 | 39159-3702 | 1 | ||
| COUPLING | 42034 | 42034-3705 | 1 | ||
| WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 4 | ||
| WASHER,18X26X2.0 | 92022A | 92022-3728 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-3713 | 1 | ||
| BEARING-BALL,60042RD | 92045 | 92045-3705 | 1 | ||
| SEAL-OIL,S620426 | 92049 | 92049-3707 | 2 | ||
| SEAL-OIL,SCY20368 | 92049A | 92050-502 | 1 | ||
| SEAL-OIL,SC20367 | 92049B | 92050-503 | 1 | ||
| DAMPER,COUPLING | 92075 | 92075-520 | 1 | ||
| CLAMP | 92170 | 92170-3705 | 1 |
