Parts Diagrams |

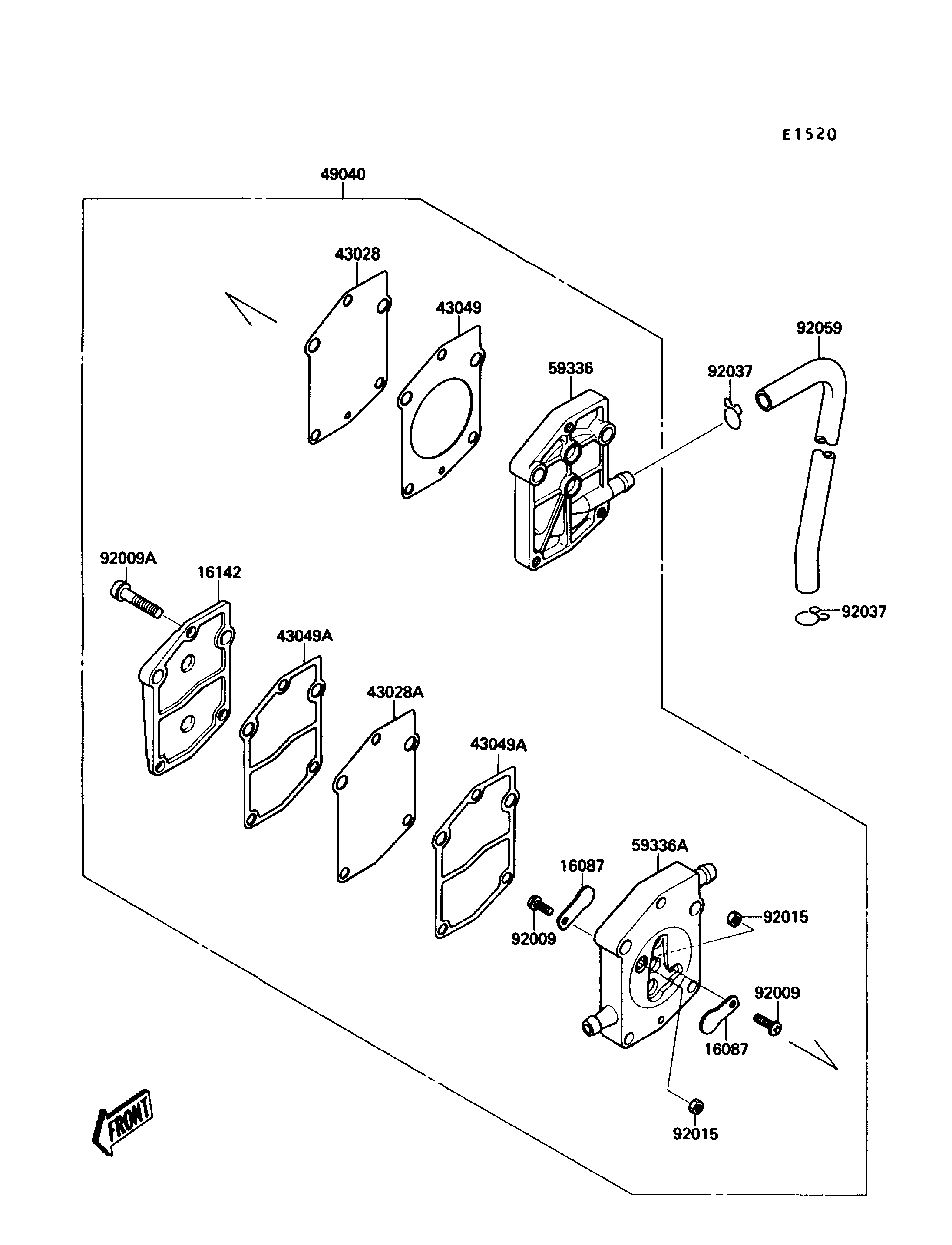

16087
16087
16142
43028
43028A
43049
43049A
43049A
49040
59336
59336A
92009
92009
92009A
92015
92015
92037
92037
92059
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE-CHECK,FUEL PUMP | 16087 | 16087-3701 | 2 | ||
| COVER-PUMP,FUEL | 16142 | 16142-3702 | 1 | ||
| DIAPHRAGM,PULSE | 43028 | 43028-3702 | 1 | ||
| DIAPHRAGM,FUEL | 43028A | 43028-3703 | 1 | ||
| PACKING,PULSE CASE | 43049 | 43049-3705 | 1 | ||
| PACKING,FUEL COVER | 43049A | 43049-3706 | 2 | ||
| PUMP-FUEL | 49040 | 49040-3706 | 1 | ||
| CASE-PUMP,PULSE | 59336 | 59336-3704 | 1 | ||
| CASE-PUMP,BODY | 59336A | 59336-3707 | 1 | ||
| SCREW,3X6 | 92009 | 92009-3707 | 2 | ||
| SCREW,5X28 | 92009A | 92009-3767 | 3 | ||
| NUT,3MM | 92015 | 92015-3731 | 2 | ||
| CLAMP,11MM | 92037 | 92037-3723 | 2 | ||
| TUBE,PULSE,5.8X10.8X330 | 92059 | 92059-3812 | 1 |
| VALVE-CHECK,FUEL PUMP | |
| REF # | 16087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP,FUEL | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM,PULSE | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM,FUEL | |
| REF # | 43028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACKING,PULSE CASE | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACKING,FUEL COVER | |
| REF # | 43049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PUMP-FUEL | |
| REF # | 49040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-PUMP,PULSE | |
| REF # | 59336 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-PUMP,BODY | |
| REF # | 59336A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,3X6 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X28 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,3MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,11MM | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,PULSE,5.8X10.8X330 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
