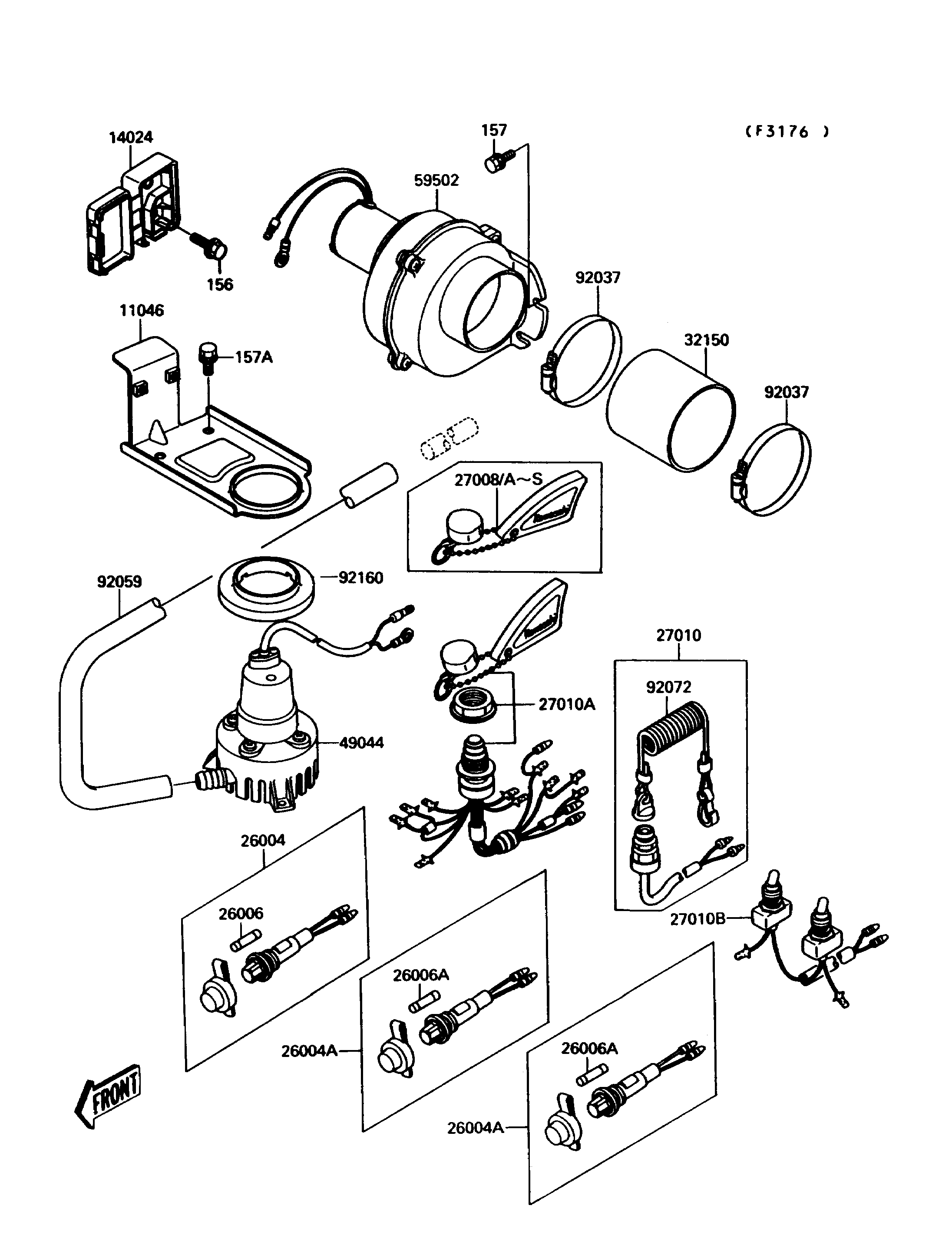

1992 Jet Mate - Bilge Pump

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BILGE 11046 11046-3803 1
COVER 14024 14024-3774 1
FUSE-ASSY,MAIN 26004 26004-3708 1
FUSE-ASSY,BILGE/BLOWER 26004A 26004-3709 2
FUSE,20A,L=31.8 26006 26006-3701 1
FUSE,5A,L=31.8 26006A 26006-3702 2
KEY,MAGNETIC SW,#2001 27008 27008-3702 1 (OPTION)
KEY,MAGNETIC SW,#2002 27008A 27008-3703 1 (OPTION)
KEY,MAGNETIC SW,#2003 27008B 27008-3704 1 (OPTION)
KEY,MAGNETIC SW,#2004 27008C 27008-3705 1 (OPTION)
KEY,MAGNETIC SW,#2005 27008D 27008-3706 1 (OPTION)
KEY,MAGNETIC SW,#2006 27008E 27008-3707 1 (OPTION)
KEY,MAGNETIC SW,#2007 27008F 27008-3708 1 (OPTION)
KEY,MAGNETIC SW,#2008 27008G 27008-3709 1 (OPTION)
KEY,MAGNETIC SW,#2009 27008H 27008-3710 1 (OPTION)
KEY,MAGNETIC SW,#2010 27008I 27008-3711 1 (OPTION)
KEY,MAGNETIC SW,#2011 27008J 27008-3712 1 (OPTION)
KEY,MAGNETIC SW,#2012 27008K 27008-3713 1 (OPTION)
KEY,MAGNETIC SW,#2013 27008L 27008-3714 1 (OPTION)
KEY,MAGNETIC SW,#2014 27008M 27008-3715 1 (OPTION)
KEY,MAGNETIC SW,#2015 27008N 27008-3716 1 (OPTION)
KEY,MAGNETIC SW,#2016 27008O 27008-3717 1 (OPTION)
KEY,MAGNETIC SW,#2017 27008P 27008-3718 1 (OPTION)
KEY,MAGNETIC SW,#2018 27008Q 27008-3719 1 (OPTION)
KEY,MAGNETIC SW,#2019 27008R 27008-3720 1 (OPTION)
KEY,MAGNETIC SW,#2020 27008S 27008-3721 1 (OPTION)
SWITCH,STOP 27010 27010-3710 1
SWITCH,MAIN 27010A 27010-3722 1
SWITCH,BILGE/BLOWER 27010B 27010-3723 1
PIPE 32150 32150-3716 1
PUMP-WATER,BILGE 49044 49044-3702 1
FAN-ASSY,BLOWER 59502 59502-3701 1
CLAMP 92037 92037-3711 2
TUBE 92059 92059-3845 1
BAND,TETHER SWITCH 92072 92072-3744 1
DAMPER 92160 92160-3723 1
BOLT-WP,6X20 156 156R0620 2
BOLT-WSP,5X18 157 157R0518 4
BOLT-WSP,6X16 157A 157R0616 2
