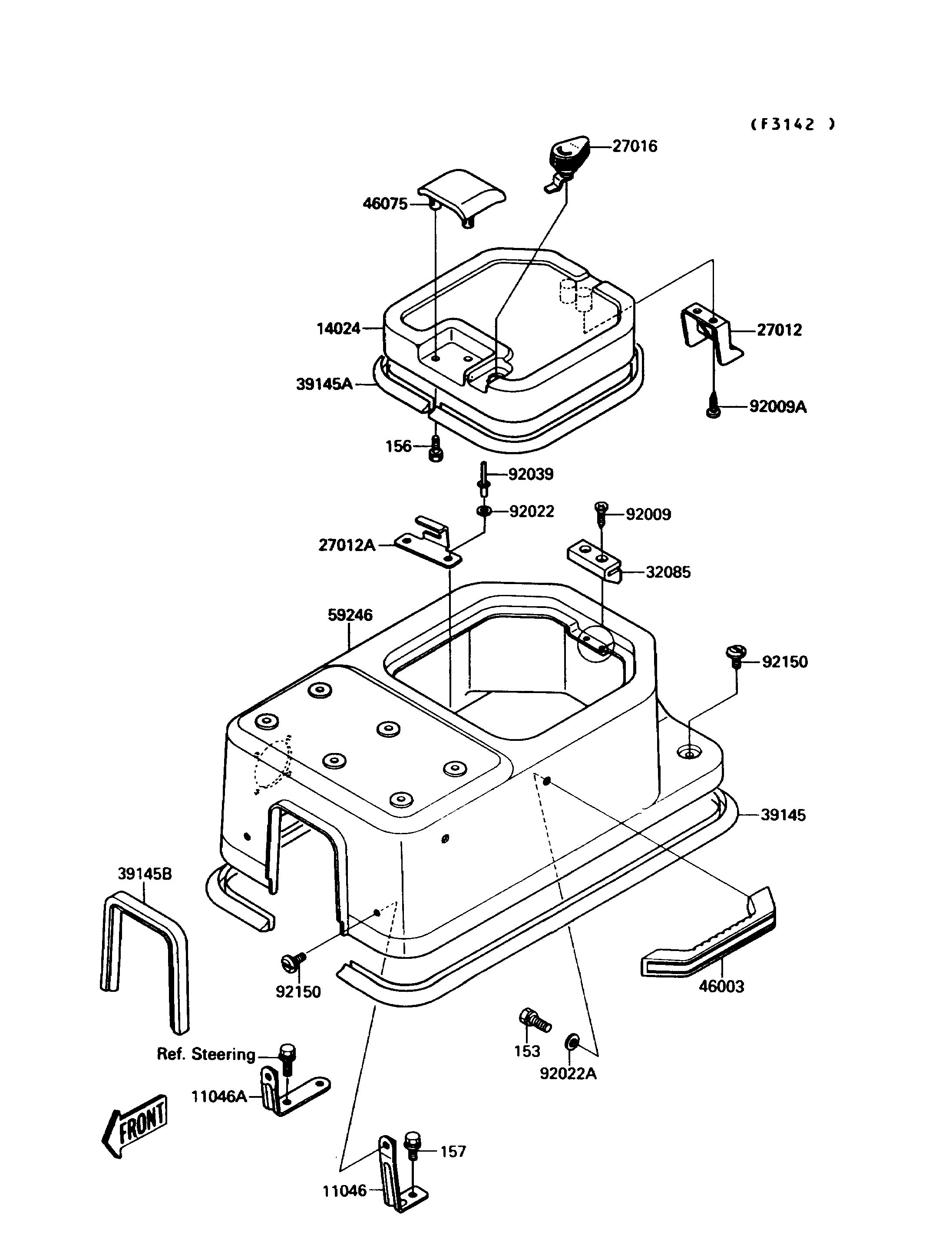

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ENGINE HOOD,LH | 11046 | 11046-3766 | 1 | ||
| BRACKET,ENGINE HOOD,RH | 11046A | 11046-3767 | 1 | ||
| COVER,ENGINE HOOD,P.WHITE | 14024 | 14024-3766-F1 | 1 | ||
| HOOK,ENGINE HOOD COVER | 27012 | 27012-3745 | 1 | ||
| HOOK,LOCK | 27012A | 27012-3748 | 1 | ||
| LOCK-ASSY | 27016 | 27016-3712 | 1 | ||
| STOPPER,ENGINE HOOD | 32085 | 32085-3715 | 1 | ||
| TRIM-SEAL | 39145 | 39145-3711 | 1 | ||
| TRIM-SEAL | 39145A | 39145-3712 | 1 | ||
| TRIM-SEAL | 39145B | 39145-3717 | 1 | ||
| GRIP | 46003 | 46003-2054 | 1 | ||
| GRIP,ENGINE HOOD COVER,P.WHITE | 46075 | 46075-3718-F1 | 1 | ||
| HOOD-ENGINE,P.WHITE | 59246 | 59246-3715-BP | 1 | ||
| SCREW,TAPPING,4X14 | 92009 | 92009-3755 | 2 | ||
| SCREW,TAPPING,5X20 | 92009A | 92009-3756 | 2 | ||
| WASHER,5X16X1.5 | 92022 | 92022-3041 | 2 | ||
| WASHER,8.5X19X1.2 | 92022A | 92022-3730 | 2 | ||
| RIVET,4.8MM | 92039 | 92039-3719 | 2 | ||
| BOLT,6X14 | 92150 | 92150-3732 | 4 | ||
| BOLT-WS-SMALL,8X18 | 153 | 153R0818 | 2 | ||
| BOLT-WP,5X16 | 156 | 156R0516 | 3 | ||
| BOLT-WSP,6X16 | 157 | 157R0616 | 1 |
