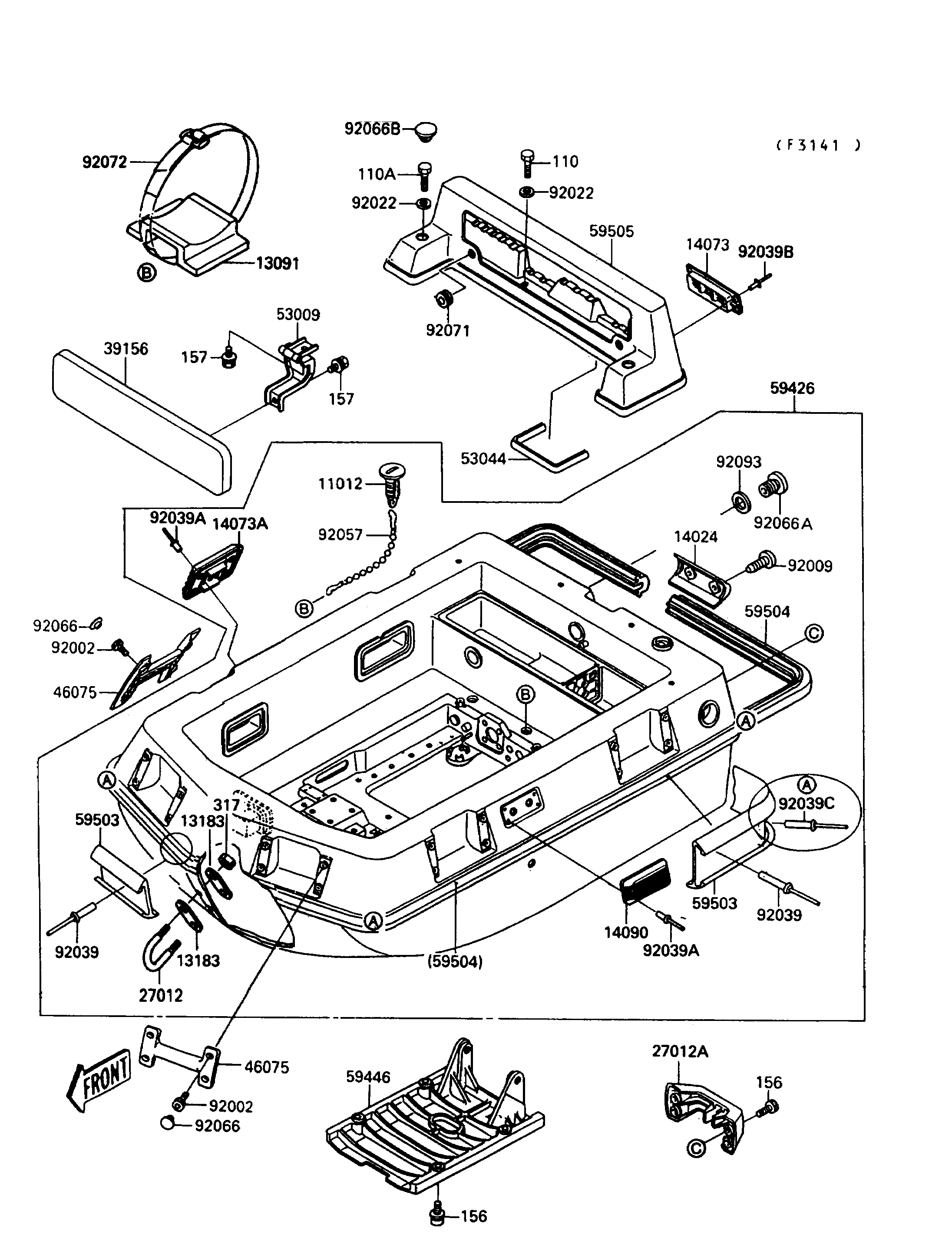

1992 Jet Mate - Hull

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3740 2
HOLDER 13091 13091-3750 2
PLATE 13183 13183-3742 2
COVER 14024 14024-3779 1
DUCT,VENT,P.WHITE 14073 14073-3710-F1 2
DUCT,AIR INTAKE GRILL,P.WHITE 14073A 14073-3724-F1 1
COVER,DUMMY AIR INTAKE,P.WHITE 14090 14024-3769-F1 1
HOOK 27012 27012-3741 1
HOOK,SKI 27012A 27012-3743 2
PAD,BACKREST,RED 39156 39156-3730-MX 1
GRIP,P.WHITE 46075 46075-3715-F1 6
HINGE,BACKREST 53009 53009-3709 2
TRIM 53044 53044-1112 1
HULL-COMP,P.WHITE 59426 59426-3775-BP 1
COVER-JET PUMP 59446 59446-3710 1
FENDER-BOAT 59503 59503-3702 3
TRIM 59504 59504-3702 1
BACKREST,P.WHITE 59505 59505-3703-F1 1
BOLT,SOCKET,8X20 92002 92002-3771 24
SCREW,TAPPING,4X14 92009 92009-3762 2
WASHER 92022 92022-3710 4
RIVET 92039 92039-3002 70
RIVET 92039A 92039-3714 8
RIVET 92039B 92039-3739 8
RIVET 92039C 92039-3745 5
CHAIN,COVER,L=250 92057 92057-3701 1
PLUG,P.WHITE 92066 92066-3715-6F 24
PLUG,RR,DRAIN 92066A 92066-3725 1
PLUG,BACKREST,P.WHITE 92066B 92066-3726-6F 2
GROMMET 92071 92071-056 2
BAND 92072 92072-3739 2
SEAL 92093 92093-3720 1
BOLT,6X20 110 110R0620 2
BOLT,6X25 110A 110R0625 2
BOLT-WP,6X22 156 156R0622 12
BOLT-WSP,6X12 157 157R0612 4
NUT-HEX-SMALL 317 317R0800 2
