Parts Diagrams |

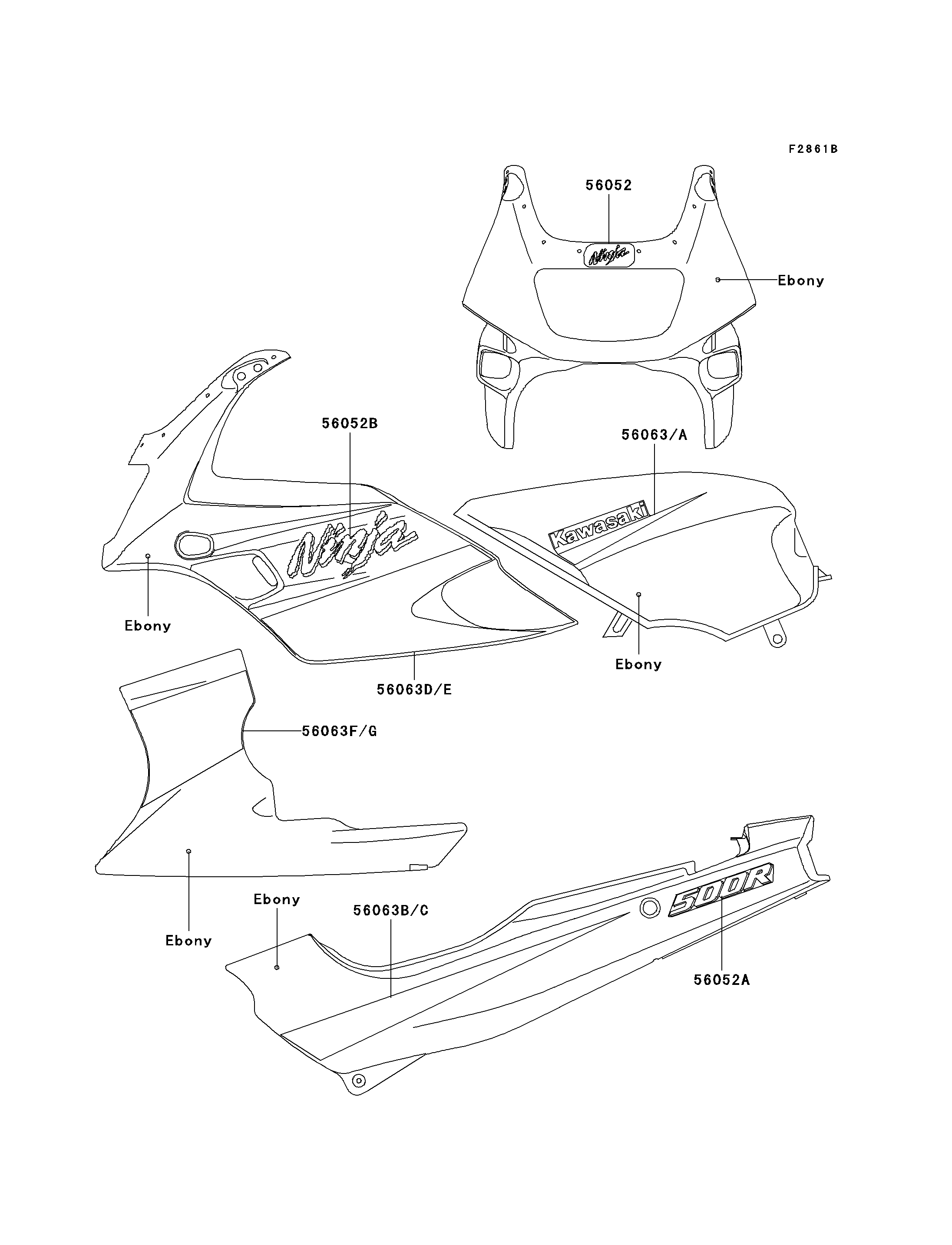

2000 Ninja® 500R - Decals(Ebony)(EX500-D7)(CN)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UPP COWLING,NINJA | 56052 | 56052-1180 | 1 | CN | |
| MARK,SIDE COVER,500R | 56052A | 56052-1181 | 2 | CN | |
| MARK,UPP COWLING,NINJA | 56052B | 56052-1182 | 2 | CN | |
| PATTERN,FUEL TANK,LH | 56063 | 56063-1241 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56063A | 56063-1242 | 1 | CN | |
| PATTERN,SIDE COVER,LH | 56063B | 56063-1243 | 1 | CN | |
| PATTERN,SIDE COVER,RH | 56063C | 56063-1244 | 1 | CN | |
| PATTERN,UPP COWLING,LH | 56063D | 56063-1245 | 1 | CN | |
| PATTERN,UPP COWLING,RH | 56063E | 56063-1246 | 1 | CN | |
| PATTERN,LWR COWLING,LH | 56063F | 56063-1247 | 1 | CN | |
| PATTERN,LWR COWLING,RH | 56063G | 56063-1248 | 1 | CN |
| MARK,UPP COWLING,NINJA | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,500R | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,UPP COWLING,NINJA | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LH | |
| REF # | 56063F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,RH | |
| REF # | 56063G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
