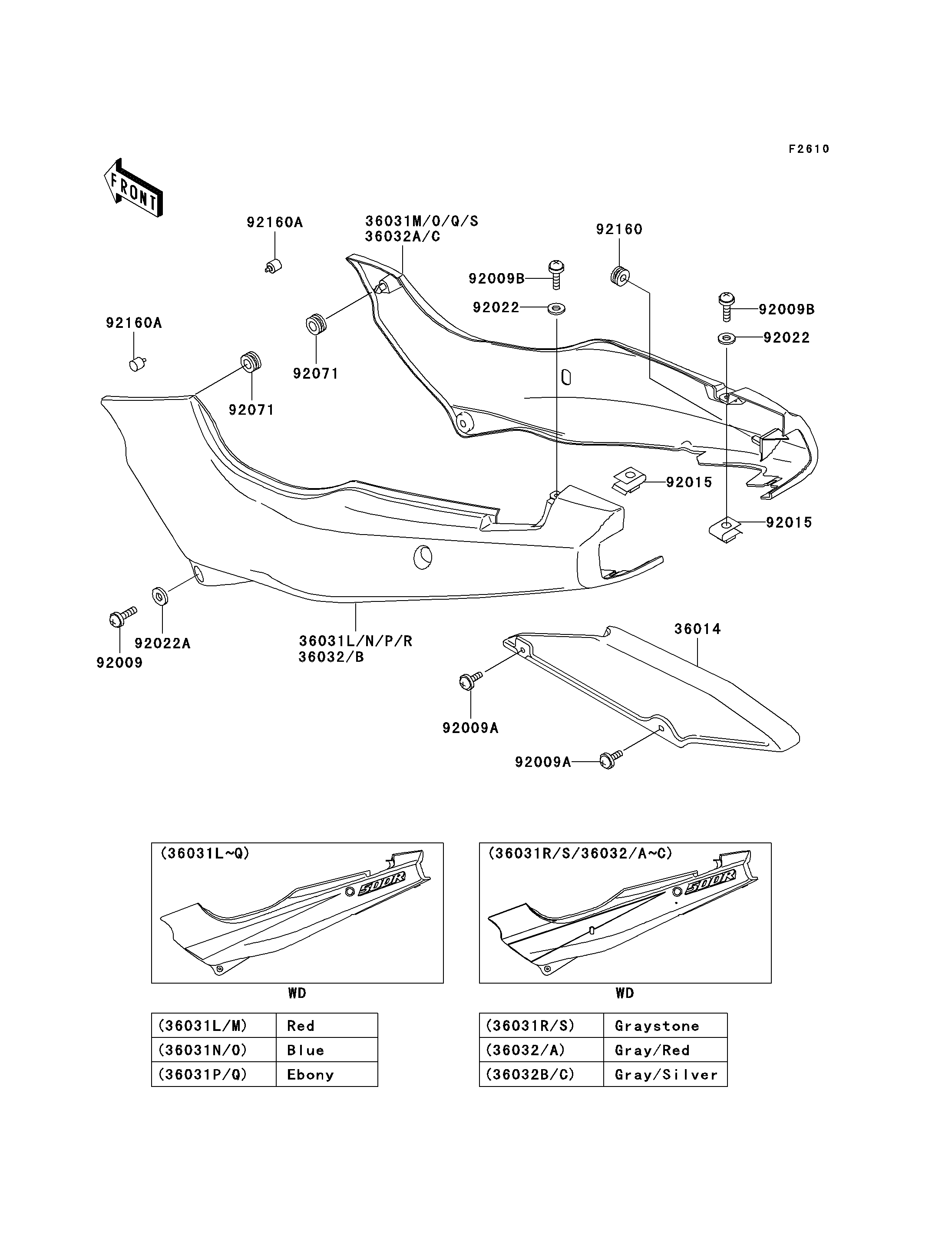

2001 Ninja® 500R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36014
36014
36031R
36031R
36031S
36031S
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92015
92015
92015
92015
92022
92022
92022
92022
92022A
92022A
92071
92071
92071
92071
92160
92160
92160A
92160A
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-1164 1
COVER-SIDE,LH,M.GRAYSTONE 36031R 36031-5393-C4 1
COVER-SIDE,RH,M.GRAYSTONE 36031S 36031-5394-C4 1
SCREW,6X14 92009 92009-1288 2
SCREW,6X10 92009A 92009-1402 2
SCREW,5X16,BLACK 92009B 92009-1654 2
NUT,5MM 92015 92015-1710 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
WASHER,6.5X16X1.0 92022A 92022-1654 2
GROMMET 92071 92071-056 2
DAMPER 92160 92160-1162 2
DAMPER 92160A 92160-1555 2
COVER-SIDE-LH,C.L.BLUE 36031N 36031-5322-E1 1 CN
COVER-SIDE-RH,C.L.BLUE 36031O 36031-5323-E1 1 CN
