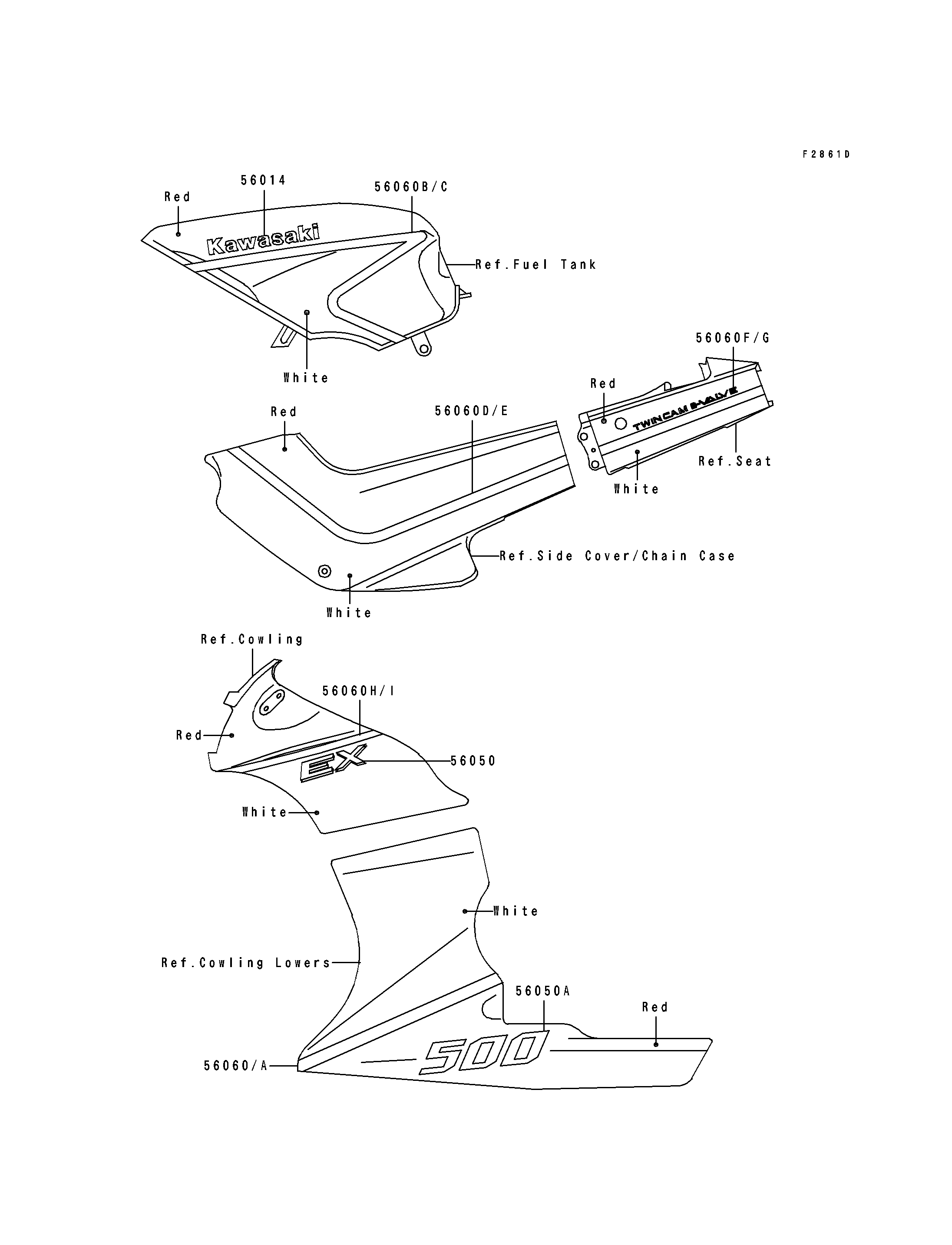

1992 EX500 - Decals(EX500-A6)(Red/White)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1271 | 2 | ||
| MARK,EX | 56050 | 56050-1770 | 2 | ||
| MARK,500 | 56050A | 56050-1771 | 2 | (OPTION) | |
| PATTERN,LWR COWLING,LH | 56060 | 56060-1087 | 1 | ||
| PATTERN,LWR COWLING,RH | 56060A | 56060-1088 | 1 | ||
| PATTERN,FUEL TANK,LH | 56060B | 56060-1089 | 1 | ||
| PATTERN,FUEL TANK,RH | 56060C | 56060-1090 | 1 | ||
| PATTERN,SIDE COVER,LH | 56060D | 56060-1091 | 1 | ||
| PATTERN,SIDE COVER,RH | 56060E | 56060-1092 | 1 | ||
| PATTERN,SEAT COVER,LH | 56060F | 56060-1093 | 1 | ||
| PATTERN,SEAT COVER,RH | 56060G | 56060-1094 | 1 | ||
| PATTERN,UPP COWLING,LH | 56060H | 56060-1095 | 1 | ||
| PATTERN,UPP COWLING,RH | 56060I | 56060-1096 | 1 |
