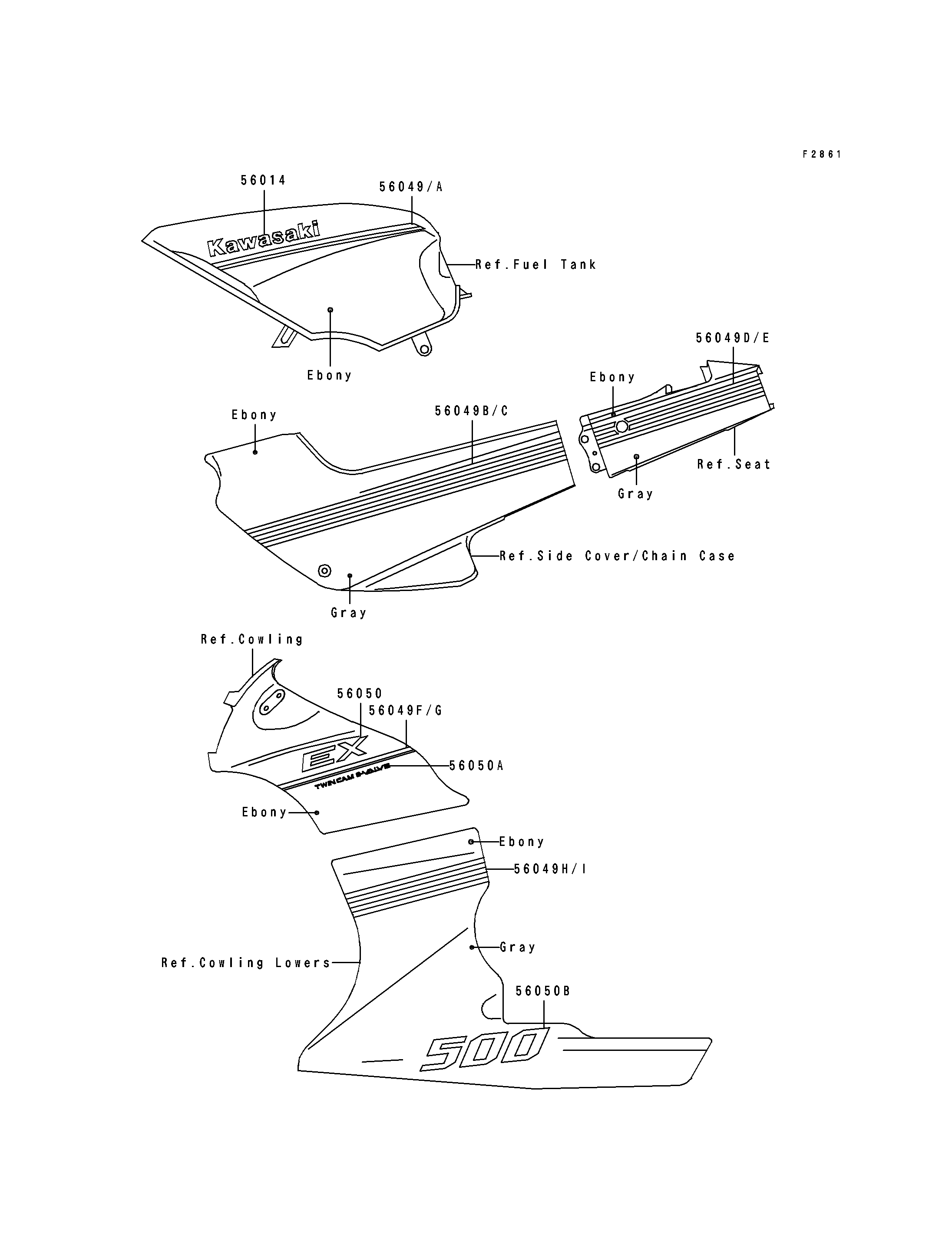

1990 EX500 - Decals(EX500-A4)(Ebony/Gray)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1215 | 2 | ||
| PATTERN,FUEL TANK,LH | 56049 | 56049-1144 | 1 | ||
| PATTERN,FUEL TANK,RH | 56049A | 56049-1145 | 1 | ||
| PATTERN,SIDE COVER,LH | 56049B | 56049-1146 | 1 | ||
| PATTERN,SIDE COVER,RH | 56049C | 56049-1147 | 1 | ||
| PATTERN,SEAT COVER,LH | 56049D | 56049-1148 | 1 | ||
| PATTERN,SEAT COVER,RH | 56049E | 56049-1149 | 1 | ||
| PATTERN,UPP COWLING,RH | 56049F | 56049-1150 | 1 | ||
| PATTERN,UPP COWLING,LH | 56049G | 56049-1151 | 1 | ||
| PATTERN,LWR COWLING,LH | 56049H | 56049-1152 | 1 | ||
| PATTERN,LWR COWLING,RH | 56049I | 56049-1153 | 1 | ||
| MARK,EX | 56050 | 56050-1380 | 2 | ||
| MARK,TWIN CAM 8-VALVE | 56050A | 56050-1381 | 2 | ||
| MARK,500 | 56050B | 56050-1382 | 2 |
