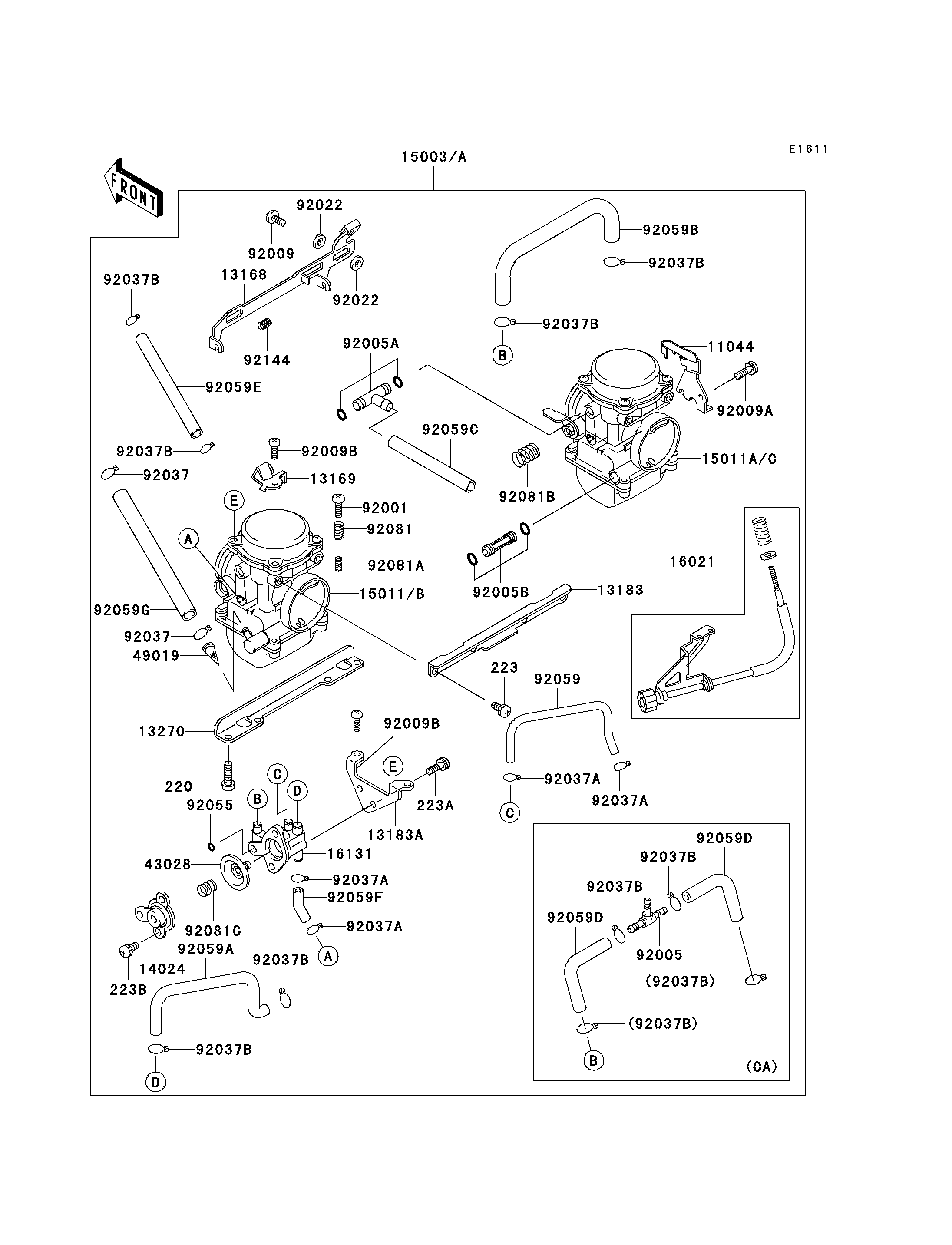

2006 Ninja® 250R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11044
11044
13168
13168
13169
13169
13183
13183
13183A
13183A
13270
13270
14024
14024
16021
16021
16131
16131
43028
43028
49019
49019
92001
92001
92005A
92005A
92005B
92005B
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92022
92022
92022
92022
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92059
92059
92059A
92059A
220
220
223
223
223A
223A
223B
223B
92059C
92059C
92059E
92059E
92059F
92059F
92059G
92059G
92081
92081
92081A
92081A
92081B
92081B
92081C
92081C
92144
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1061 1
LEVER,STARTER 13168 13168-1330 1
PLATE,STARTER CABLE 13169 13169-1965 1
PLATE,CARBURETOR STAY,UPP 13183 13183-1029 1
PLATE,AIR CUT VALVE 13183A 13183-1031 1
PLATE,CARBURETOR STAY,LWR 13270 13270-1073 1
COVER,AIR CUT VALVE 14024 14024-1327 1
SCREW-THROTTLE STOP 16021 16021-1173 1
BODY-VALVE,DIAPHRAGM 16131 16131-1062 1
DIAPHRAGM,5.9MM,AIR CUT VALVE 43028 43028-1053 1
FILTER-FUEL 49019 49019-1092 1
BOLT,THROTTLE ADJUST 92001 92001-1998 1
FITTING 92005A 92005-1306 1
FITTING 92005B 92005-1310 1
SCREW 92009 92009-1262 2
SCREW,5X10 92009A 92009-1365 1
SCREW,4X18 92009B 92009-1446 3
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 4
CLAMP,FUEL TUBE 92037 92037-1075 2
CLAMP,TUBE 92037A 92037-1142 4
RING-O 92055 92055-1245 1
TUBE,3.5X6.5X180 92059 92059-1140 1
TUBE,5X9X160 92059A 92059-1201 1
SCREW-PAN-CROS,6X16 220 220B0616 4
SCREW-PAN-WS-CROS,5X10 223 223C0510 4
SCREW-PAN-WS-CROS,4X8 223A 223D0408 2
SCREW-PAN-WS-CROS,4X10 223B 223D0410 2
TUBE,6.5X9.5X500 92059C 92059-1465 1
TUBE,5X9X140 92059E 92059-1634 1
TUBE,3.5X6.5X26 92059F 92059-1722 1
TUBE,7.3X12.5X150 92059G 92059-1860 1
SPRING 92081 92081-1620 1
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 1
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 1
SPRING,AIR CUT VALVE 92081C 92081-1719 1
SPRING,THROTTLE ADJUST UPP 92144 92144-1048 1
CARBURETOR-ASSY 15003 15003-1602 1 US
CARBURETOR-ASSY 15003A 15003-1603 1 CA
CARBURETOR,LH 15011 15011-1820 1 US
CARBURETOR,RH 15011A 15011-1821 1 US
CARBURETOR,LH 15011B 15011-1826 1 CA
CARBURETOR,RH 15011C 15011-1827 1 CA
FITTING,FUEL,T-TYPE 92005 92005-1112 1 CA
CLAMP,TUBE 92037B 92037-1477 6 US
CLAMP,TUBE 92037B 92037-1477 8 CA
TUBE,5X9X180 92059B 92059-1377 1 US
TUBE,5X9X90 92059D 92059-1627 2 CA
