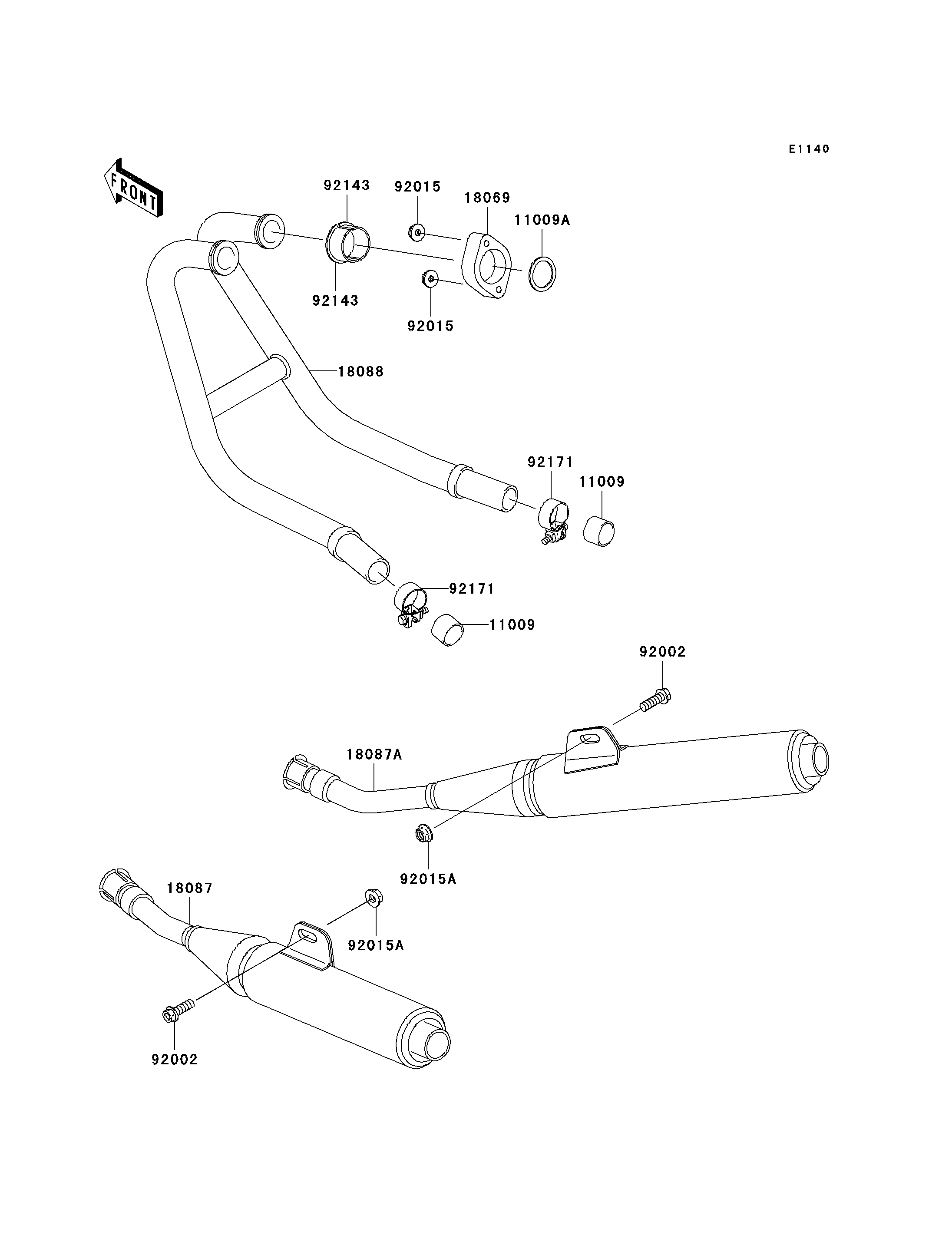

2006 Ninja® 250R - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
18069
18087
18087A
18088
92002
92002
92015
92015
92015A
92015A
92143
92143
92171
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNECTING 11009 11009-1865 2
GASKET,EXHAUST PIPE HOLDER 11009A 11009-1866 2
HOLDER-EXHAUST PIPE 18069 18069-1075 2
MUFFLER,LH 18087 18087-0050 1
MUFFLER,RH 18087A 18087-0051 1
PIPE-EXHAUST 18088 18088-0157 1
BOLT,10X30 92002 92002-1787 2
NUT,6MM 92015 92015-1365 4
NUT,FLANGED,10MM 92015A 92015-1387 2
COLLAR,EXHAUST PIPE 92143 92143-1006 4
CLAMP,CHAMBER-MUFFLER 92171 92171-0062 2
