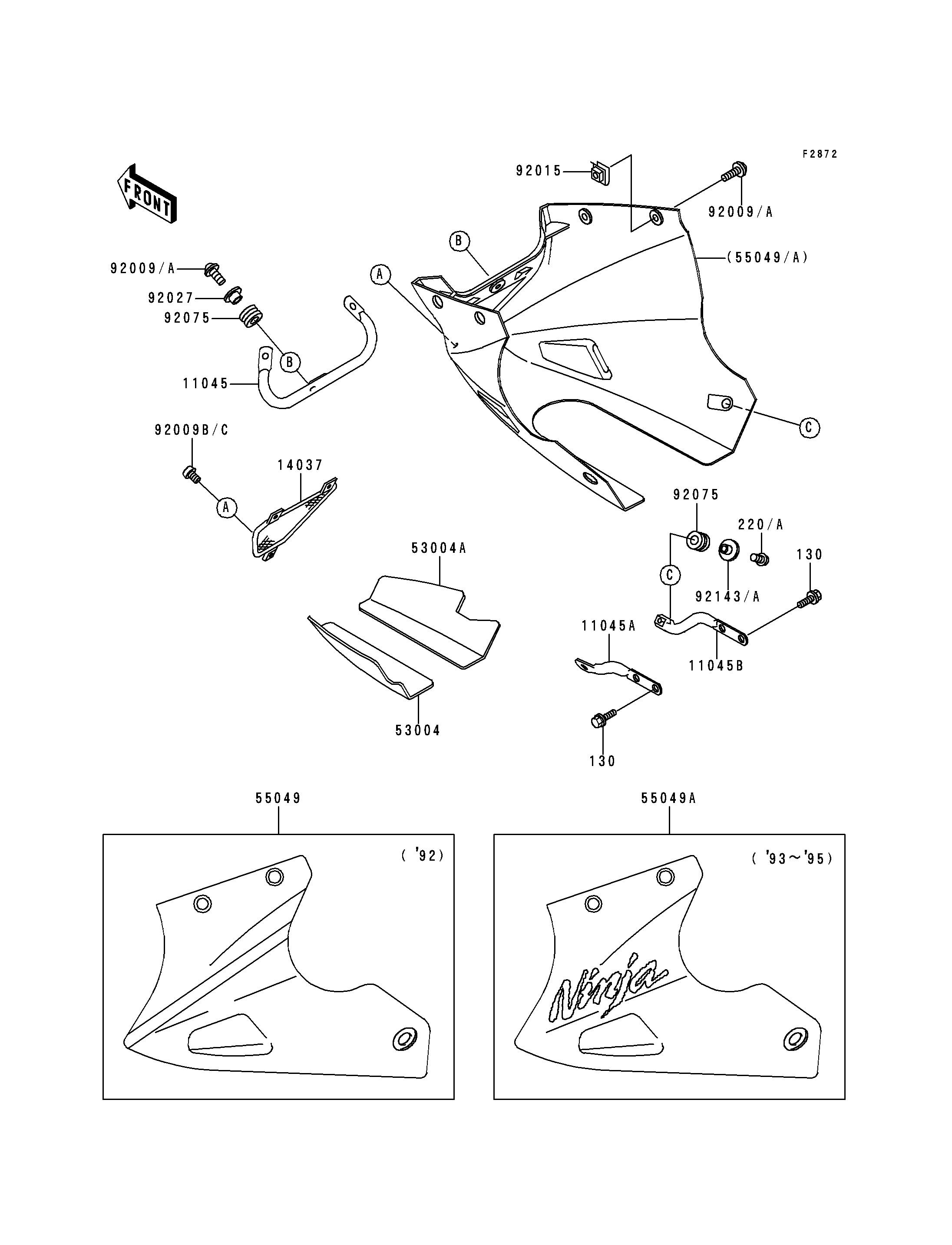

1994 Ninja® 250R - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
130
130
220
220A
11045
11045A
11045B
14037
53004
53004A
55049A
92009
92009
92009A
92009A
92009B
92009C
92015
92027
92075
92075
92143
92143A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 1
SCREW-PAN-CROS,6X20,WHITE 220 220B0620 2
SCREW-PAN-CROS,6X20,BLACK 220A 220C0620 2
BRACKET,LOWER COWLING,FR 11045 11045-1861 1
BRACKET,LOWER COWLING,RR,LH 11045A 11045-1864 1
BRACKET,LOWER COWLING,RR,RH 11045B 11045-1865 1
SCREEN 14037 14037-1094 1
MAT,LOWER COWLING,LH 53004 53004-1053 1
MAT,LOWER COWLING,RH 53004A 53004-1054 1
COWLING.,LWR,EBONY/GRAY 55049A 55049-5134-TT 1
SCREW,6X18,WHITE 92009 92009-1111 5
SCREW,6X18,BLACK 92009A 92009-1181 5
SCREW,5X16,WHITE 92009B 92009-1464 1
SCREW,5X16 92009C 92009-1654 1
NUT,6MM 92015 92015-1602 4
COLLAR,L=9.1,BLACK 92027 92027-1935 2
DAMPER 92075 92075-1634 3
COLLAR,BLACK 92143 92143-1226 2
COLLAR,WHITE 92143A 92143-1273 2
