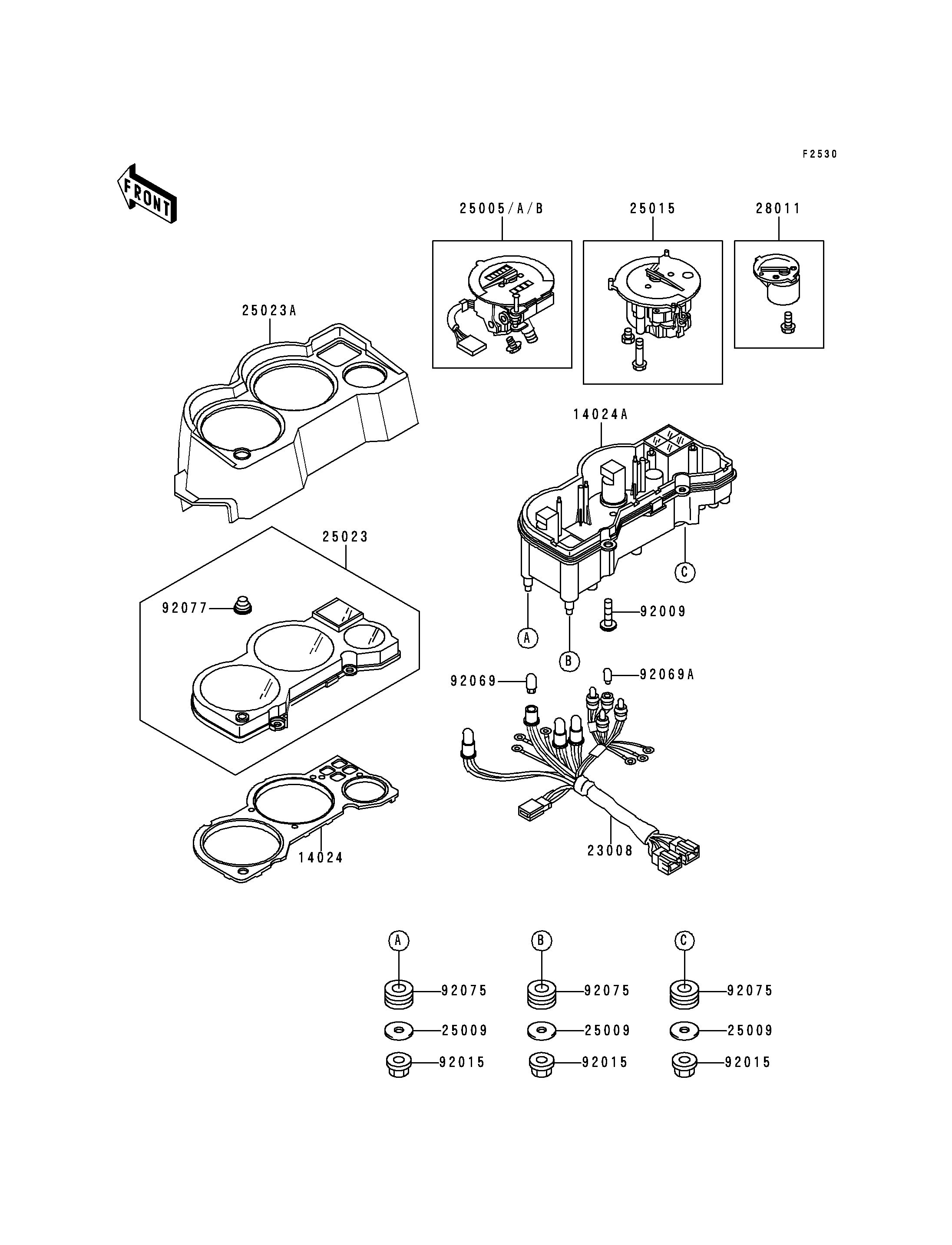

Parts Diagrams |
14024
14024A
23008
25009
25009
25009
25015
25023
25023A
28011
92009
92015
92015
92015
92069
92069A
92075
92075
92075
92077
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER | 14024 | 14024-1463 | 1 | ||
| COVER,METER HOUSING | 14024A | 14024-1664 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1367 | 1 | ||
| WASHER,5.2X16X1.2 | 25009 | 25009-004 | 3 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1275 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1158 | 1 | ||
| COVER-METER CASE | 25023A | 25023-1159 | 1 | ||
| METER,TEMP | 28011 | 28011-1100 | 1 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 4 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 3 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 3 | ||
| BULB,12V 3W | 92069A | 92069-1068 | 4 | ||
| DAMPER,METER BRACKET | 92075 | 92075-1385 | 3 | ||
| BOOT,TRIP RESET KNOB | 92077 | 92077-1061 | 1 | ||
| SPEEDOMETER,MPH | 25005 | 25005-1378 | 1 | ||
| SPEEDOMETER,KPH | 25005A | 25005-1379 | 1 |
