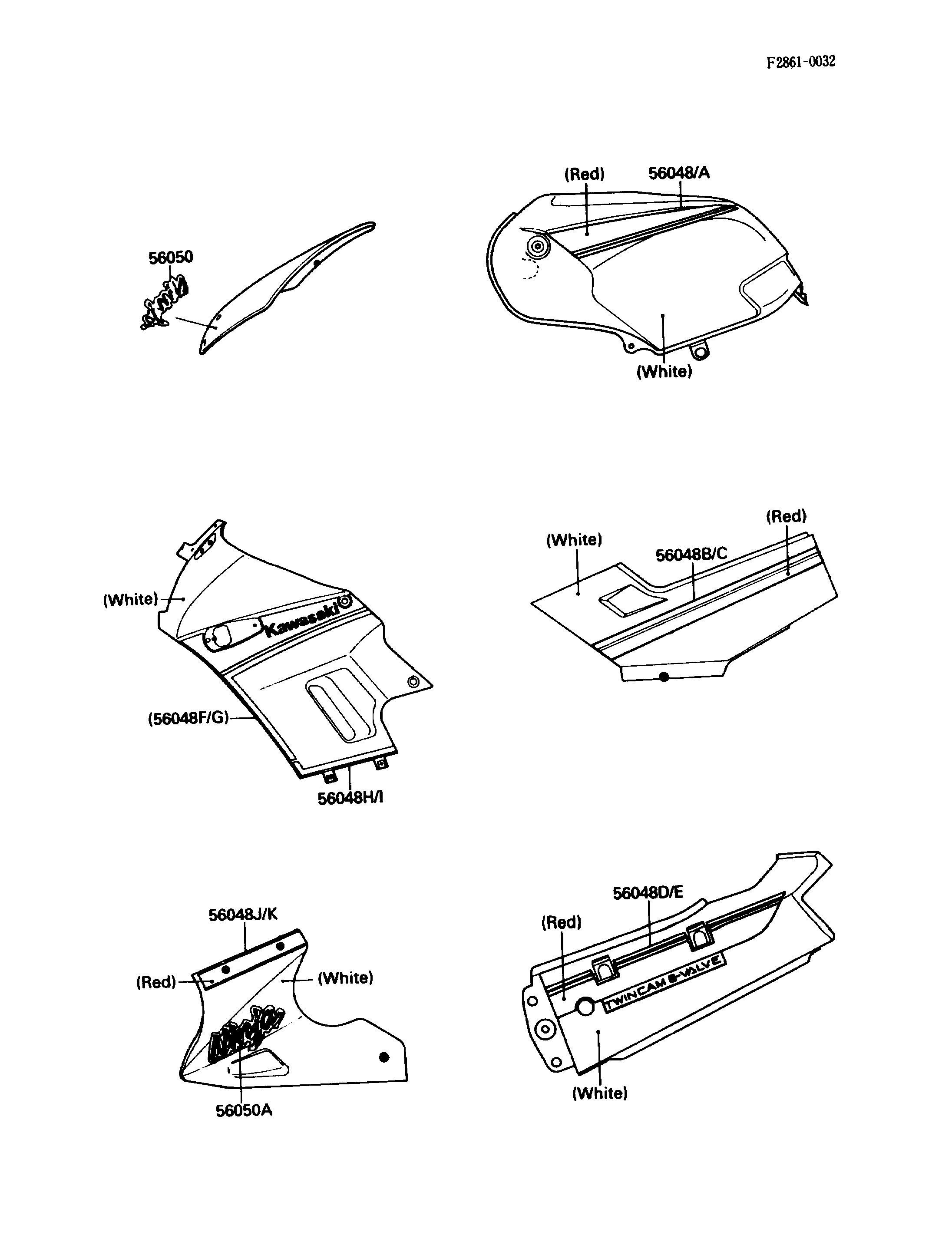

1989 Ninja® 250R - Decals(WHITE)(EX250-F3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PATTERN,FUEL TANK,LH | 56048 | 56048-1437 | 1 | CAUS | |
| PATTERN,FUEL TANK,RH | 56048A | 56048-1438 | 1 | CAUS | |
| PATTERN,SIDE COVER,LH | 56048B | 56048-1439 | 1 | CAUS | |
| PATTERN,SIDE COVER,RH | 56048C | 56048-1440 | 1 | CAUS | |
| PATTERN,SEAT COVER,LH | 56048D | 56048-1441 | 1 | CAUS | |
| PATTERN,SEAT COVER,RH | 56048E | 56048-1442 | 1 | CAUS | |
| PATTERN,UPP COWLING,UPP,LH | 56048F | 56048-1443 | 1 | CAUS | |
| PATTERN,UPP COWLING,UPP,RH | 56048G | 56048-1444 | 1 | CAUS | |
| PATTERN,UPP COWLING,LWR,LH | 56048H | 56048-1445 | 1 | CAUS | |
| PATTERN,UPP COWLING,LWR,RH | 56048I | 56048-1446 | 1 | CAUS | |
| PATTERN,LWR COWLING,LH | 56048J | 56048-1447 | 1 | CAUS | |
| PATTERN,LWR COWLING,RH | 56048K | 56048-1448 | 1 | CAUS | |
| MARK,WINDSHIELD | 56050 | 56050-1054 | 1 | CAUS | |
| MARK,NINJA | 56050A | 56050-1169 | 2 | CAUS |
| PATTERN,FUEL TANK,LH | |
| REF # | 56048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56048C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56048D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56048E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,LH | |
| REF # | 56048F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,RH | |
| REF # | 56048G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,LH | |
| REF # | 56048H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RH | |
| REF # | 56048I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,LWR COWLING,LH | |
| REF # | 56048J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,LWR COWLING,RH | |
| REF # | 56048K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,WINDSHIELD | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,NINJA | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
