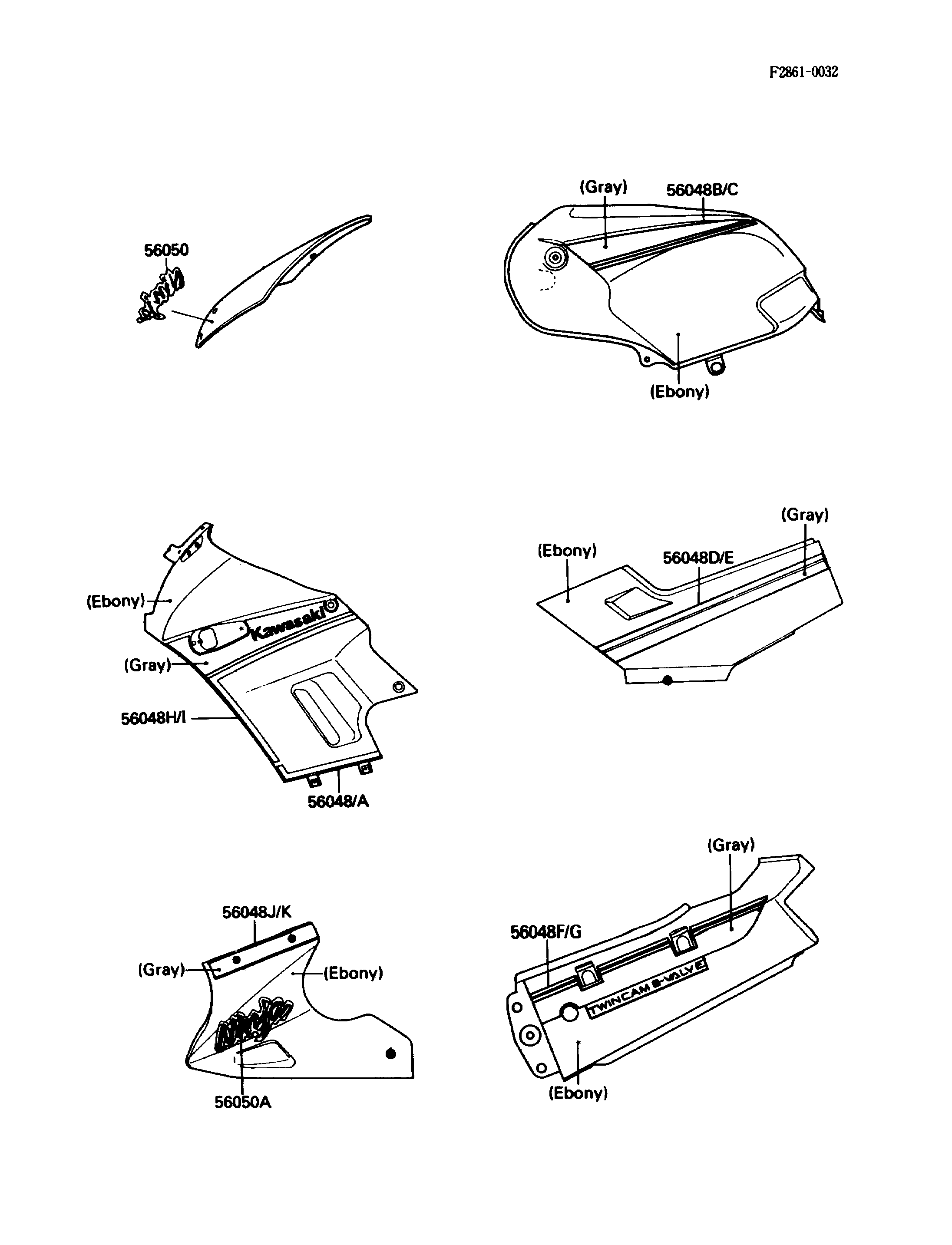

1989 Ninja® 250R - Decals(EBONY)(EX250-F3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PATTERN,UPP COWLING,LWR,LH | 56048 | 56048-1374 | 1 | ||
| PATTERN,UPP COWLING,LWR,RH | 56048A | 56048-1375 | 1 | ||
| PATTERN,FUEL TANK,LH | 56048B | 56048-1427 | 1 | ||
| PATTERN,FUEL TANK,RH | 56048C | 56048-1428 | 1 | ||
| PATTERN,SIDE COVER,LH | 56048D | 56048-1429 | 1 | ||
| PATTERN,SIDE COVER,RH | 56048E | 56048-1430 | 1 | ||
| PATTERN,SEAT COVER,LH | 56048F | 56048-1431 | 1 | ||
| PATTERN,SEAT COVER,RH | 56048G | 56048-1432 | 1 | ||
| PATTERN,UPP COWLING,UPP,LH | 56048H | 56048-1433 | 1 | ||
| PATTERN,UPP COWLING,UPP,RH | 56048I | 56048-1434 | 1 | ||
| PATTERN,LWR COWLING,LH | 56048J | 56048-1435 | 1 | ||
| PATTERN,LWR COWLING,RH | 56048K | 56048-1436 | 1 | ||
| MARK,WINDSHIELD | 56050 | 56050-1054 | 1 | ||
| MARK,NINJA | 56050A | 56050-1155 | 2 |
| PATTERN,UPP COWLING,LWR,LH | |
| REF # | 56048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RH | |
| REF # | 56048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56048C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56048D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56048E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56048F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56048G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,LH | |
| REF # | 56048H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,RH | |
| REF # | 56048I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LH | |
| REF # | 56048J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RH | |
| REF # | 56048K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,NINJA | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
