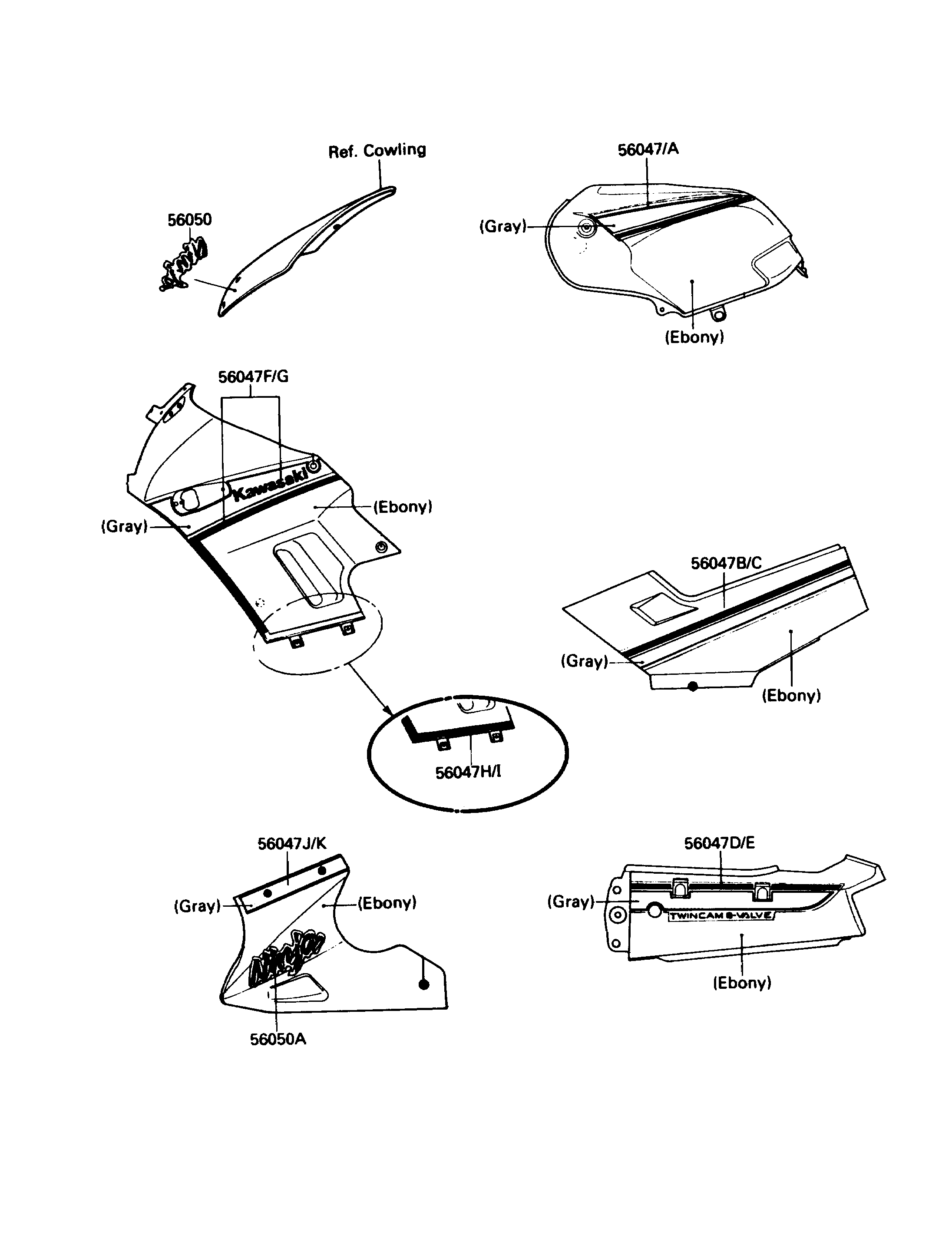

1988 NINJA® 250R - Decals(EBONY)(EX250-F2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PATTERN,FUEL TANK,LH | 56047 | 56047-1547 | 1 | ||
| PATTERN,FUEL TANK,RH | 56047A | 56047-1548 | 1 | ||
| PATTERN,SIDE COVER,LH | 56047B | 56047-1549 | 1 | ||
| PATTERN,SIDE COVER,RH | 56047C | 56047-1550 | 1 | ||
| PATTERN,SEAT COVER,LH | 56047D | 56047-1551 | 1 | ||
| PATTERN,SEAT COVER,RH | 56047E | 56047-1552 | 1 | ||
| PATTERN,UPP COWLING,UPP,LH | 56047F | 56047-1553 | 1 | ||
| PATTERN,UPP COWLING,UPP,RH | 56047G | 56047-1554 | 1 | ||
| PATTERN,UPP COWLING,LWR,LH | 56047H | 56047-1555 | 1 | ||
| PATTERN,UPP COWLING,LWR,RH | 56047I | 56047-1556 | 1 | ||
| PATTERN,LWR COWLING,LH | 56047J | 56047-1557 | 1 | ||
| PATTERN,LWR COWLING,RH | 56047K | 56047-1558 | 1 | ||
| MARK,WINDSHIELD | 56050 | 56050-1054 | 1 | ||
| MARK,NINJA | 56050A | 56050-1055 | 2 |
