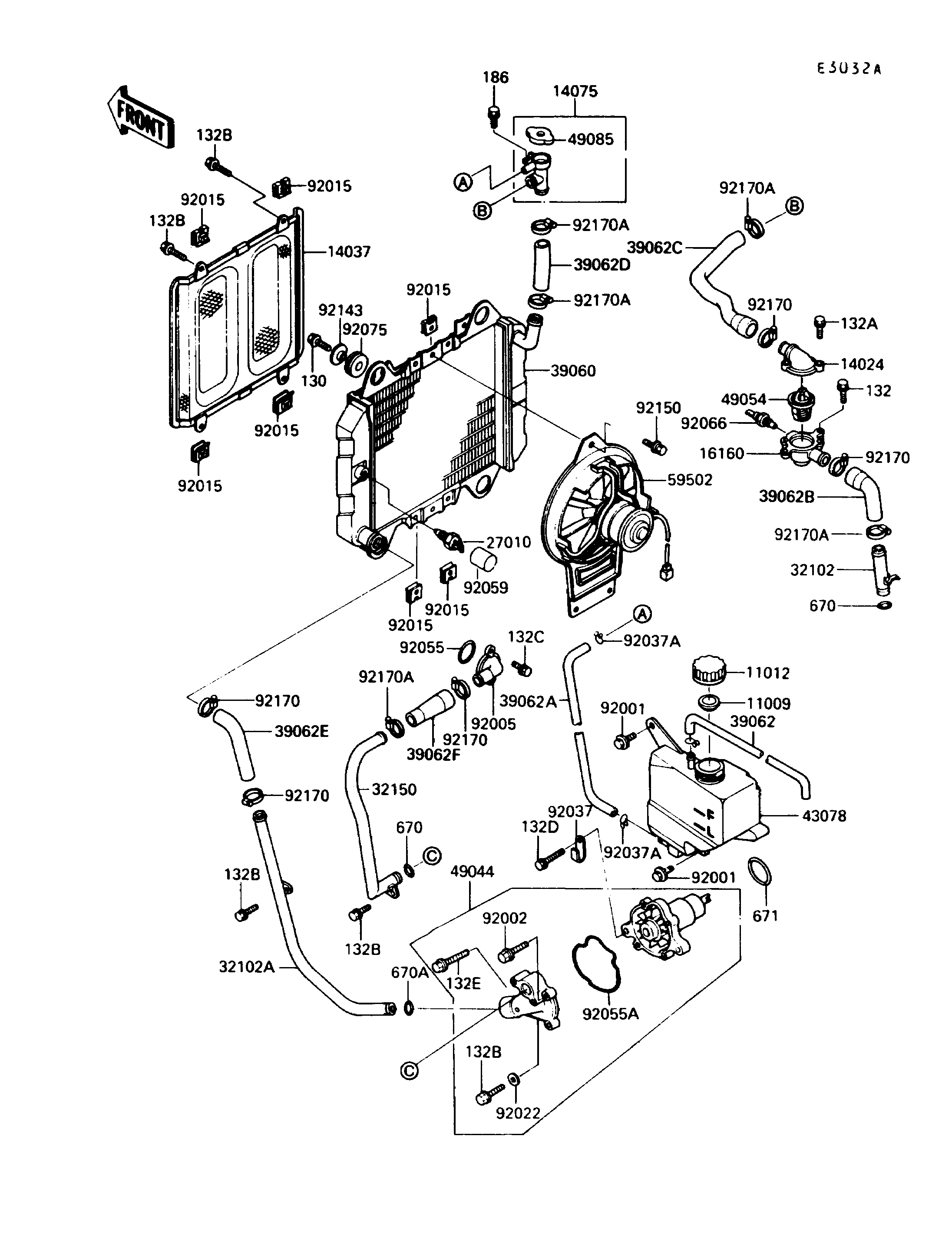

1989 Ninja® 250R - Radiator(JA004011-KA005002)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
COVER,THERMOSTAT UPP 14024 14024-1232 1
SCREEN 14037 14037-1078 1
CAP-ASSY,RADIATOR 14075 14075-1061 1
BODY,THERMOSTAT 16160 16160-1110 1
SWITCH,THERMOSTAT 27010 27010-1249 1
PIPE,HEAD-THERMOSTAT 32102 32102-1021 1
PIPE 32102A 32102-1531 1
PIPE 32150 32150-1143 1
RADIATOR 39060 39060-1087 1
HOSE-COOLING,RESERVOIR 39062 39062-1007 1
HOSE-COOLING 39062A 39062-1028 1
HOSE-COOLING,HEAD-THERMOSTAT 39062B 39062-1170 1
HOSE-COOLING,CAP-THERMOBODY 39062C 39062-1171 1
HOSE-COOLING,RADIATOR-CAP 39062D 39062-1172 1
HOSE-COOLING,RADIATOR-PUMP 39062E 39062-1173 1
HOSE-COOLING,PUMP-CYLINDER 39062F 39062-1246 1
RESERVOIR 43078 43078-1070 1
PUMP-WATER 49044 49044-1064 1
THERMOSTAT 49054 49054-1058 1
CAP-ASSY-PRESSURE 49085 49085-1003 1
FAN-ASSY 59502 59502-1066 1
BOLT,W/WASHER,6X12 92001 92001-1516 2
BOLT,6X18 92002 92002-1806 3
FITTING,CYLINDER 92005 92005-1145 1
NUT 92015 92015-1487 7
WASHER,6MM 92022 92022-1627 1
CLAMP,WIRING HARNESS 92037 21126-008 2
CLAMP,TUBE 92037A 92037-147 3
RING-O 92055 92055-091 1
RING-O 92055A 92055-1432 1
TUBE,FAN SWITCH 92059 92059-1979 1
PLUG,SENSOR WATER 92066 92066-1183 1
DAMPER 92075 92075-1665 4
COLLAR 92143 92143-1063 4
BOLT,6X12 92150 92150-1186 3
CLAMP,COOLING HOSE 92170 92037-1989 5
CLAMP,COOLING HOSE 92170A 92170-1033 5
BOLT-FLANGED 130 130C0625 4
BOLT-FLANGED-SMALL 132 132G0612 2
BOLT-FLANGED-SMALL 132A 132G0625 2
BOLT-FLANGED-SMALL 132B 132J0612 7
BOLT-FLANGED-SMALL 132C 132J0616 2
BOLT-FLANGED-SMALL 132D 132J0630 2
BOLT-FLANGED-SMALL 132E 132J0635 1
BOLT-UPSET-WP 186 186C0616 2
O RING,16MM 670 670B2016 2
O RING,18MM 670A 670B2018 1
O RING 671 671D2535 1
