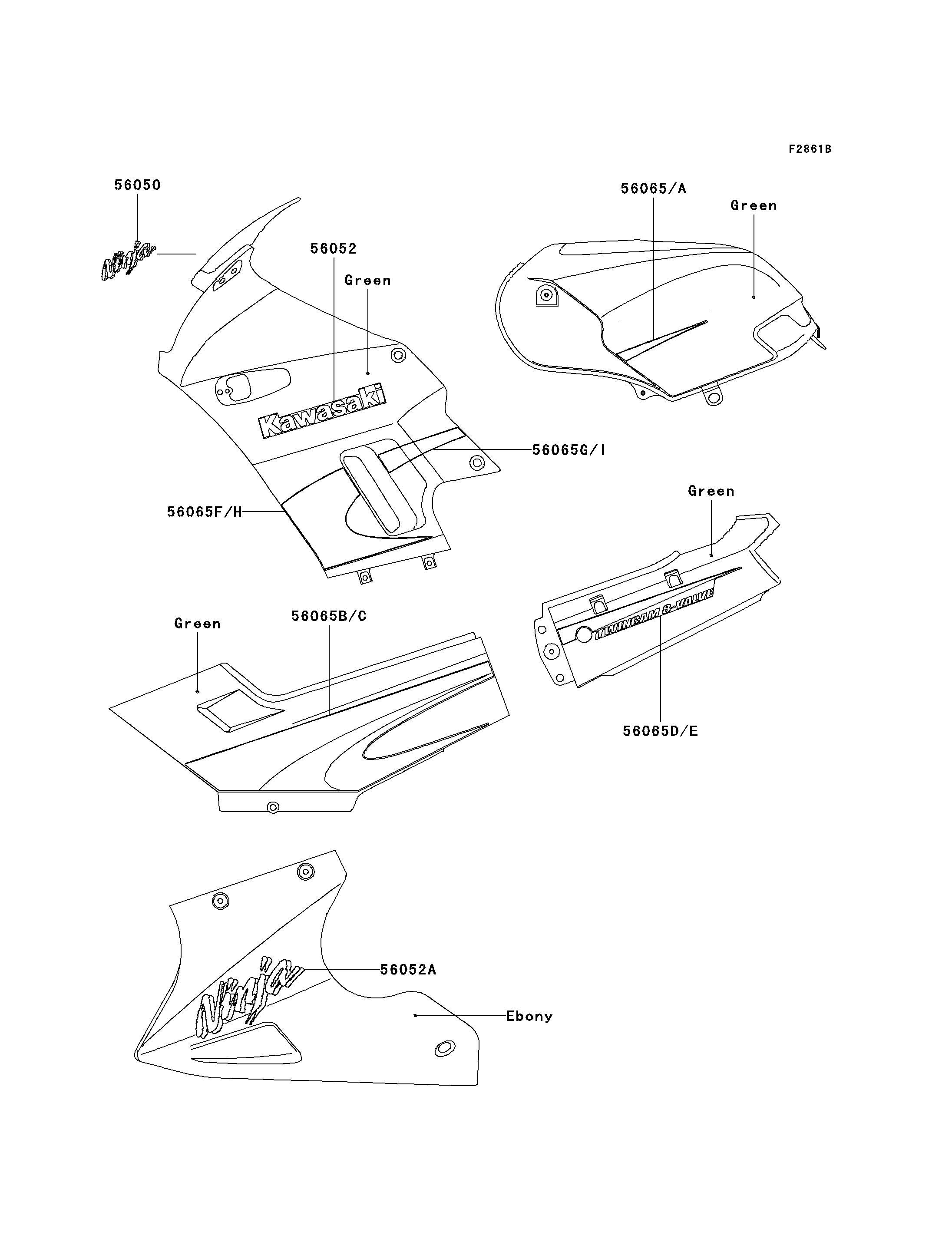

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD | 56050 | 56050-1054 | 1 | ||
| MARK,UPP COWLING,KAWASAKI | 56052 | 56052-1522 | 2 | ||
| MARK,LWR COWLING,NINJA | 56052A | 56052-1523 | 2 | ||
| PATTERN,FUEL TANK,LH | 56065 | 56065-1100 | 1 | ||
| PATTERN,FUEL TANK,RH | 56065A | 56065-1101 | 1 | ||
| PATTERN,SIDE COVER,LH | 56065B | 56065-1102 | 1 | ||
| PATTERN,SIDE COVER,RH | 56065C | 56065-1103 | 1 | ||
| PATTERN,SEAT COVER,LH | 56065D | 56065-1104 | 1 | ||
| PATTERN,SEAT COVER,RH | 56065E | 56065-1105 | 1 | ||
| PATTERN,UPP COWLING,FR,LH | 56065F | 56065-1106 | 1 | ||
| PATTERN,UPP COWLING,RR,LH | 56065G | 56065-1107 | 1 | ||
| PATTERN,UPP COWLING,FR,RH | 56065H | 56065-1108 | 1 | ||
| PATTERN,UPP COWLING,RR,RH | 56065I | 56065-1109 | 1 |
