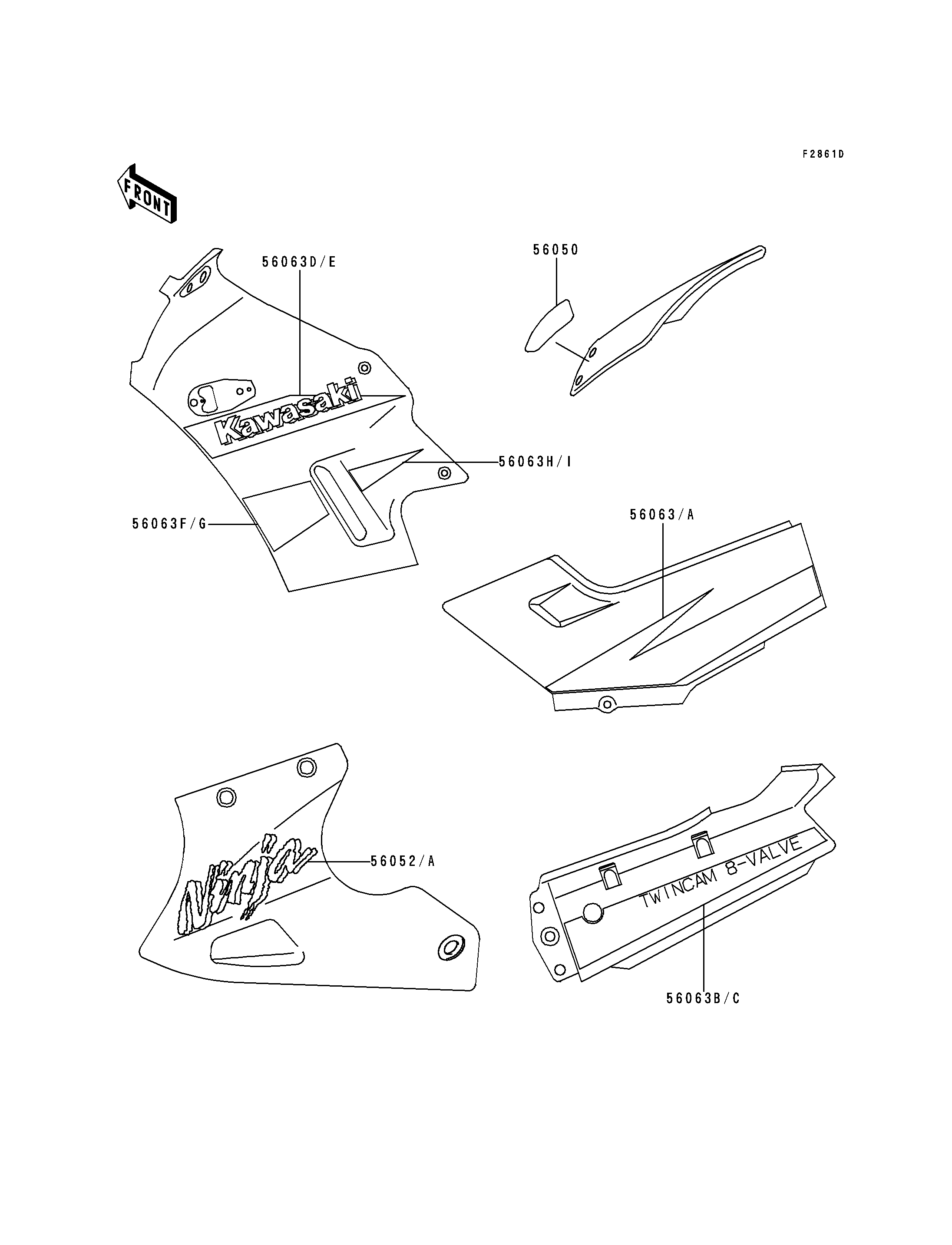

2000 Ninja® 250R - Decals(Red)(EX250-F14)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD | 56050 | 56050-1054 | 1 | ||
| MARK,LWR COWLING,LH,NINJA | 56052 | 56052-1131 | 1 | ||
| MARK,LWR COWLING,RH,NINJA | 56052A | 56052-1132 | 1 | ||
| PATTERN,SIDE COVER,LH | 56063 | 56063-1251 | 1 | ||
| PATTERN,SIDE COVER,RH | 56063A | 56063-1252 | 1 | ||
| PATTERN,SEAT COVER,LH | 56063B | 56063-1253 | 1 | ||
| PATTERN,SEAT COVER,RH | 56063C | 56063-1254 | 1 | ||
| PATTERN,UPP COWLING,LH | 56063D | 56063-1255 | 1 | ||
| PATTERN,UPP COWLING,RH | 56063E | 56063-1256 | 1 | ||
| PATTERN,UPP COWLING,LWR,FR,LH | 56063F | 56063-1257 | 1 | ||
| PATTERN,UPP COWLING,LWR,FR,RH | 56063G | 56063-1258 | 1 | ||
| PATTERN,UPP COWLING,LWR,RR,LH | 56063H | 56063-1259 | 1 | ||
| PATTERN,UPP COWLING,LWR,RR,RH | 56063I | 56063-1260 | 1 |
| MARK,WINDSHIELD | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWLING,LH,NINJA | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWLING,RH,NINJA | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,FR,LH | |
| REF # | 56063F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,FR,RH | |
| REF # | 56063G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RR,LH | |
| REF # | 56063H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RR,RH | |
| REF # | 56063I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
