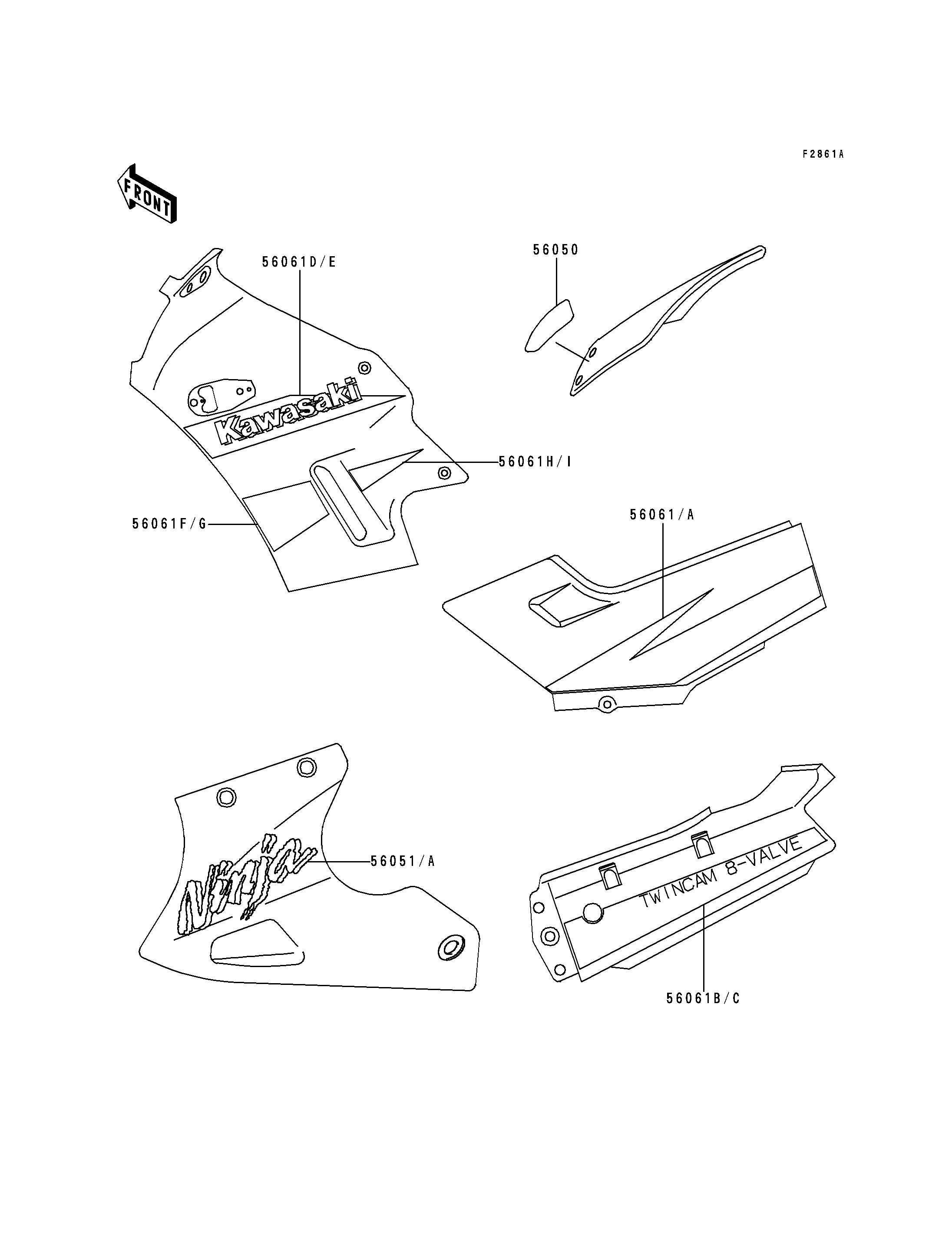

1998 Ninja® 250R - Decals(Red)(EX250-F11/12)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD | 56050 | 56050-1054 | 1 | ||
| MARK,LWR COWLING,LH,NINJA | 56051 | 56051-1564 | 1 | ||
| MARK,LWR COWLING,RH,NINJA | 56051A | 56051-1565 | 1 | ||
| PATTERN,SIDE COVER,LH | 56061 | 56061-1859 | 1 | ||
| PATTERN,SIDE COVER,RH | 56061A | 56061-1860 | 1 | ||
| PATTERN,SEAT COVER,LH | 56061B | 56061-1861 | 1 | ||
| PATTERN,SEAT COVER,RH | 56061C | 56061-1862 | 1 | ||
| PATTERN,UPP COWLING,UPP,LH | 56061D | 56061-1863 | 1 | ||
| PATTERN,UPP COWLING,UPP,RH | 56061E | 56061-1864 | 1 | ||
| PATTERN,UPP COWLING,LWR,FR,LH | 56061F | 56061-1865 | 1 | ||
| PATTERN,UPP COWLING,LWR,FR,RH | 56061G | 56061-1866 | 1 | ||
| PATTERN,UPP COWLING,LWR,RR,LH | 56061H | 56061-1867 | 1 | ||
| PATTERN,UPP COWLING,LWR,RR,RH | 56061I | 56061-1868 | 1 |
| MARK,WINDSHIELD | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWLING,LH,NINJA | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWLING,RH,NINJA | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56061C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,LH | |
| REF # | 56061D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,RH | |
| REF # | 56061E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,FR,LH | |
| REF # | 56061F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,FR,RH | |
| REF # | 56061G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RR,LH | |
| REF # | 56061H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RR,RH | |
| REF # | 56061I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
