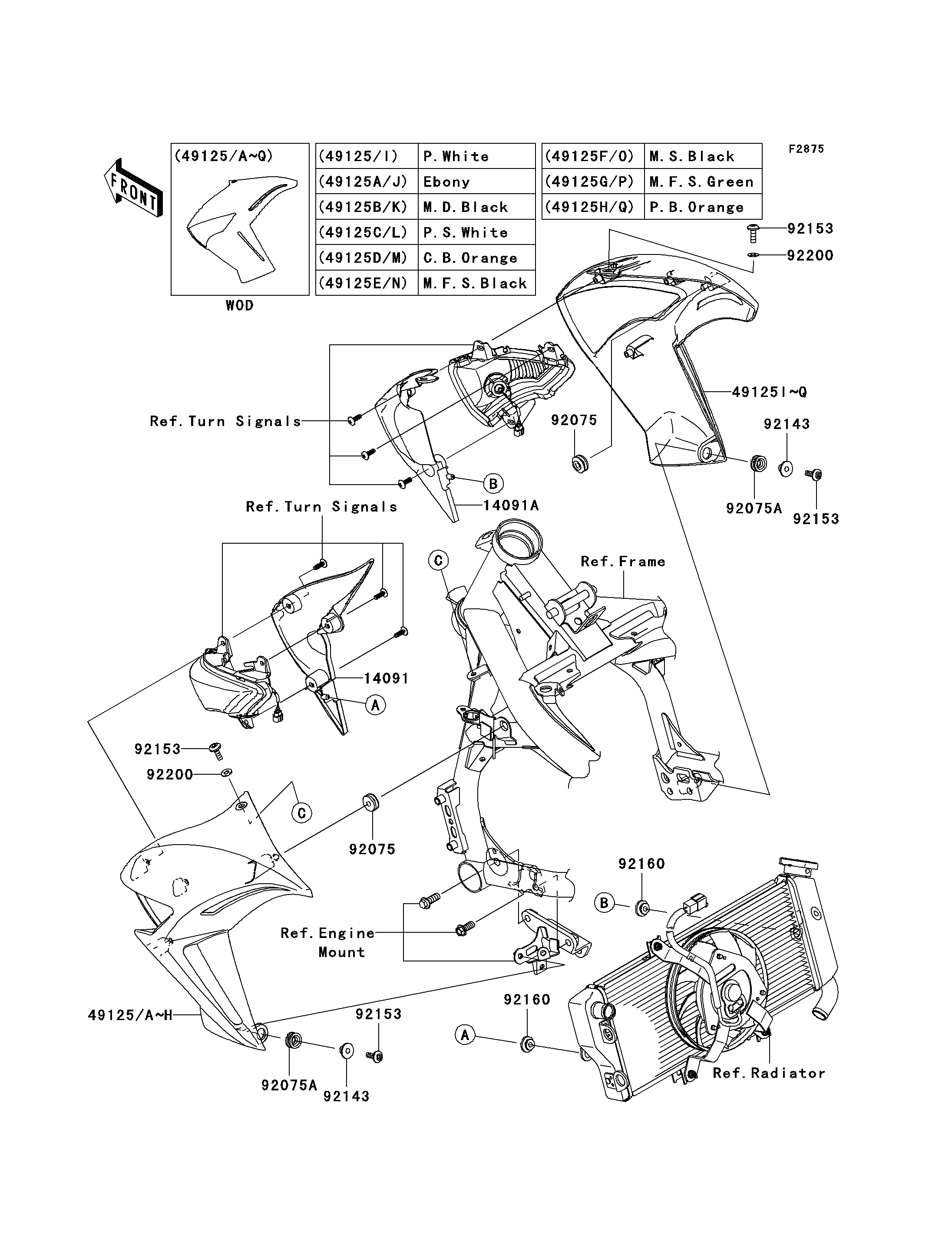

2011 ER-6n (European) - Shroud

DOWNLOAD PDF
SELECT A NEW PART
14091
14091A
49125
49125F
49125G
49125I
49125O
49125P
92075
92075
92075A
92075A
92143
92143
92153
92153
92153
92153
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SHROUD,LH 14091 14091-1590 1
COVER,SHROUD,RH 14091A 14091-1591 1
SHROUD,LH,P.WHITE 49125 49125-0033-G3 1
SHROUD,LH,M.S.BLACK 49125F 49125-0033-15Z 1
SHROUD,LH,M.F.S.GREEN 49125G 49125-0033-35A 1
SHROUD,RH,P.WHITE 49125I 49125-0034-G3 1
SHROUD,RH,M.S.BLACK 49125O 49125-0034-15Z 1
SHROUD,RH,M.F.S.GREEN 49125P 49125-0034-35A 1
DAMPER 92075 92075-1067 2
DAMPER 92075A 92075-1634 2
COLLAR 92143 92143-1962 2
BOLT,6X18 92153 92153-0816 4
DAMPER 92160 92160-1613 2
WASHER,6.5X14X1 92200 92200-1388 2
