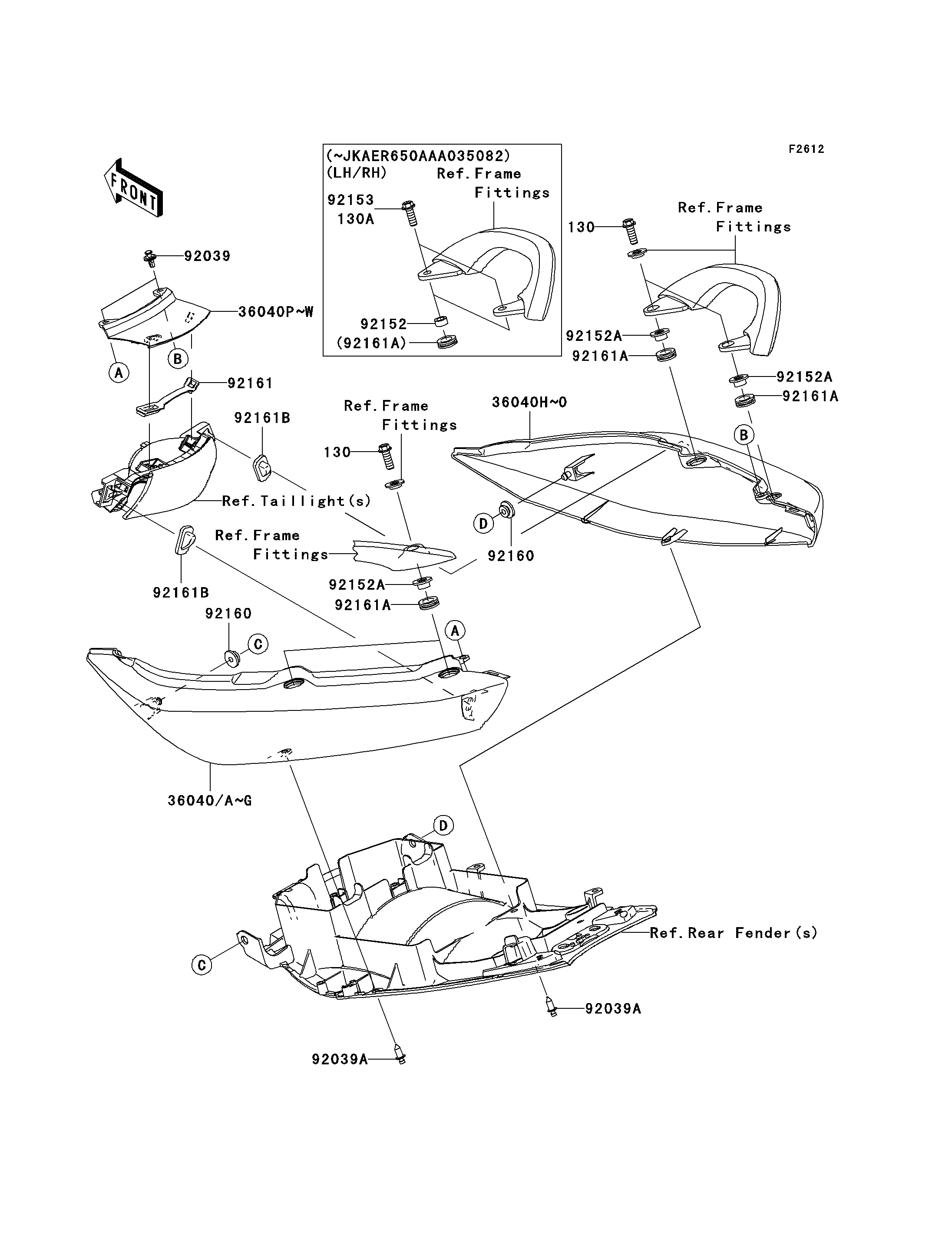

2006 ER-6n (European) - Seat Cover

DOWNLOAD PDF
SELECT A NEW PART
36040
36040F
36040G
36040H
36040N
36040O
36040P
36040V
36040W
92039
92039A
92039A
92152
92153
92160
92160
92161
92161A
92161A
92161A
92161B
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-TAIL,LH,EBONY 36040 36040-0037-H8 1
COVER-TAIL,LH,G.SILVER 36040F 36040-0037-474 1
COVER-TAIL,LH,V.YELLOW 36040G 36040-0037-789 1
COVER-TAIL,RH,EBONY 36040H 36040-0038-H8 1
COVER-TAIL,RH,G.SILVER 36040N 36040-0038-474 1
COVER-TAIL,RH,V.YELLOW 36040O 36040-0038-789 1
COVER-TAIL,CNT,EBONY 36040P 36040-0039-H8 1
COVER-TAIL,CNT,G.SILVER 36040V 36040-0039-474 1
COVER-TAIL,CNT,V.YELLOW 36040W 36040-0039-789 1
RIVET 92039 92039-1227 2
RIVET 92039A 92039-1283 2
COLLAR,9.2X13.8X6.5 92152 92152-0312 4 ( - JKAER650AAA035082)
BOLT,FLANGED,8X20 92153 92153-1503 4
DAMPER 92160 92160-1613 2
DAMPER,TAIL LAMP 92161 92161-0191 1
DAMPER 92161A 92161-0279 4
DAMPER 92161B 92161-0280 2
