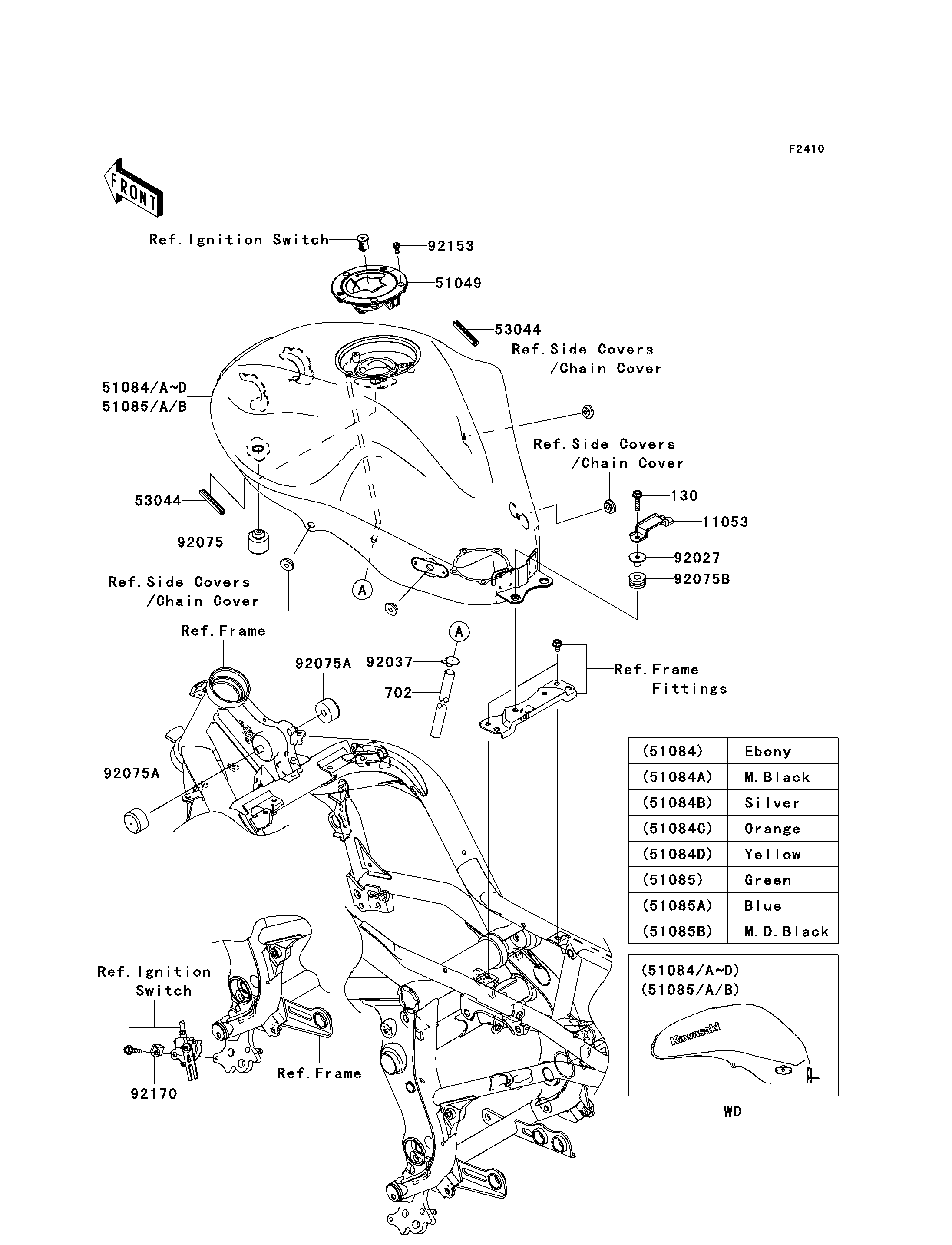

2006 ER-6n (European) - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
702
11053
51049
51084
51084B
51084D
53044
53044
92027
92037
92075
92075A
92075A
92075B
92153
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 2
TUBE-RUBBER,6X9X750 702 702A06750 1
BRACKET,SEAT 11053 11053-1812 1
CAP-TANK,FUEL 51049 51049-0012 1
TANK-COMP-FUEL,EBONY 51084 51084-5138-H8 1
TANK-COMP-FUEL,G.SILVER 51084B 51084-5139-474 1
TANK-COMP-FUEL,V.YELLOW 51084D 51084-5140-789 1
TRIM,L=60 53044 53044-1249 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-010 1
DAMPER 92075 92075-1002 2
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER 92075B 92075-1690 2
BOLT,SOCKET,5X16 92153 92153-1616 3
CLAMP 92170 92170-1833 1
